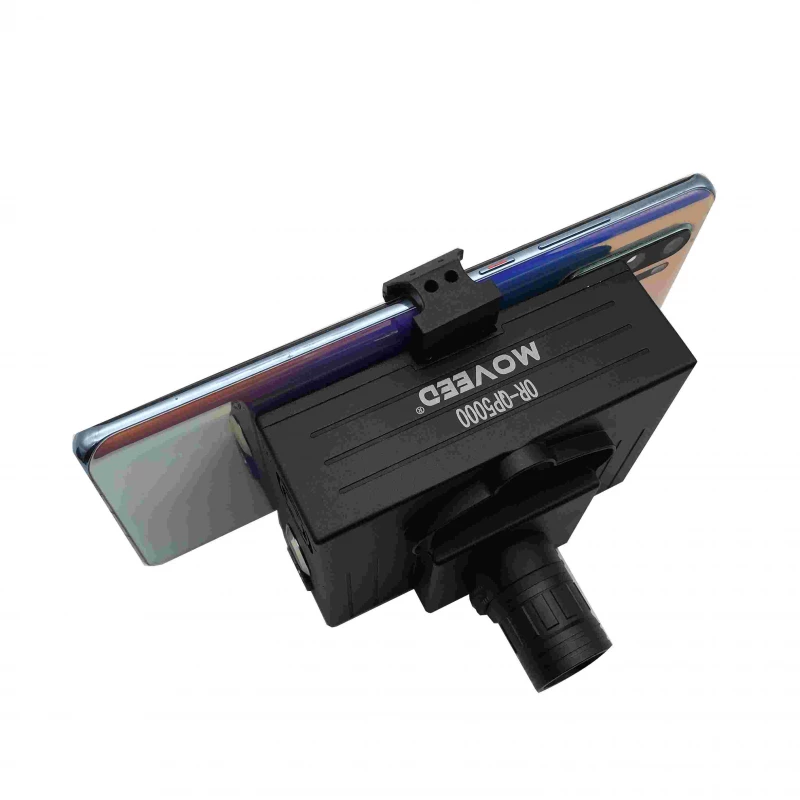

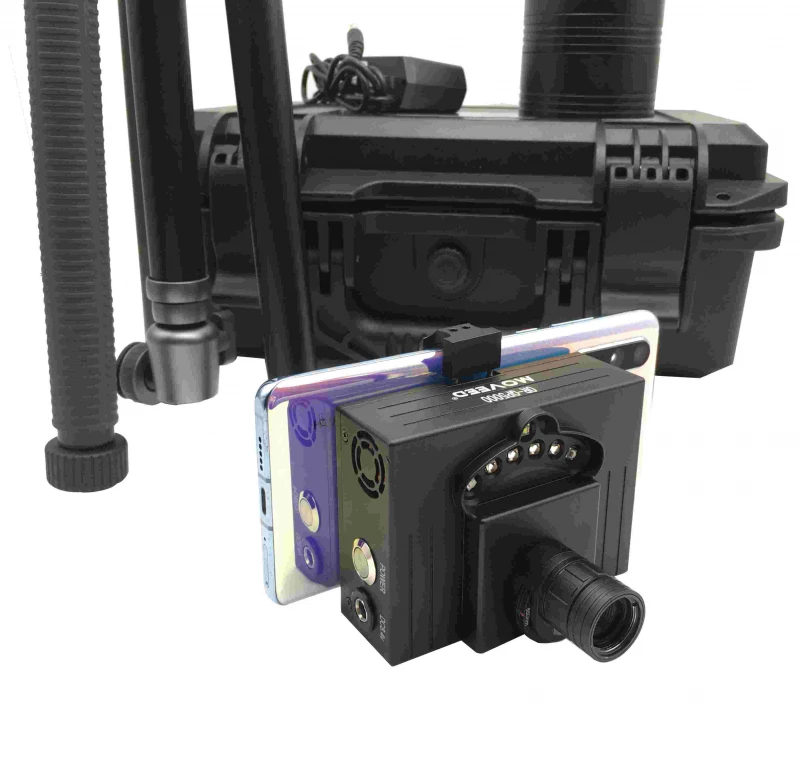

Portable Multispectral Evidence Searching and Imaging System OR-GQP5000

Specifications

Emission Spectral Range: 365 – 850 nm
Application: Forensic Analysis
Battery: Built-in Li batteries, capacity 5Ah
Charging Voltage: DC8.4V
Filters: 365nm, 450nm, 850nm
Dimensions: L* W * H (98 * 71 * 96mm); Lens: φ ≤ 30mm
Weight: ≤0.34Kg (not including Mobile Communication Device)
Power Supply: Li battery & Li battery charger
Battery Indicator: Green (full), Pink (2/3 full), Red (low)
Mounting Options: Hand-held or tripod 1/4
Application Surfaces: Walls, plastic steel windows, stainless steel, mirrors, glass, plastic, coated paper, marble, furniture, etc.
Field Of View Diameter: >40 mm
Document icon Download Data Sheet Download icon

Features


  • High-Quality Imaging: Advanced imaging sensor for clear, detailed evidence capture

  • Multi-Spectral Capability: UV (365nm), visible (7000K, 450nm), and infrared (850nm) light sources

  • Portable and Lightweight: Compact design weighing only 0.34kg (excluding mobile communication device)

  • Built-In Wi-Fi: Allows for real-time image transfer and processing without the need for external data

  • User-Friendly Interface: Supports mobile phone photography, video recording, and storage

  • Integrated Design: Combines lens, light source, and color filter in a single unit

  • Battery Management: Automatic battery charge and discharge management with clear power indicators

  • Flexible Mounting Options: Hand-held or tripod-mounted with a 1/4" interface

Applications

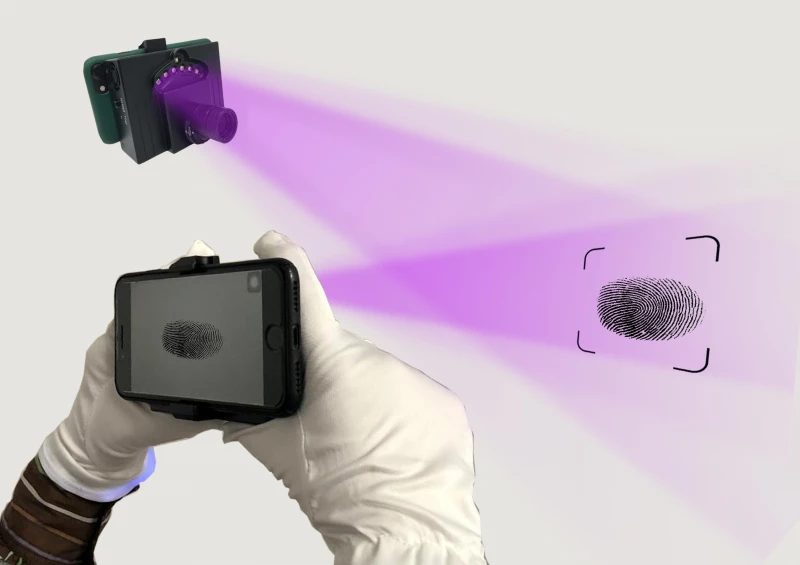

  • Fingerprint Detection: Identifies latent fingerprints on non-permeable surfaces such as walls, glass, and metal

  • Blood Stain Detection: Detects blood stains on dark textiles and other challenging surfaces

  • Document Inspection: Verifies authenticity and identifies alterations in documents

  • Crime Scene Investigation: Efficiently searches and documents evidence in various crime scene environments

  • Forensic Analysis: Analyzes evidence from a wide range of materials including textiles, coated paper, and marble
