Description


The Ultra-wide Multi-spectral Evidence Searching and Imaging System OR-GQP4000 is an advanced forensic tool meticulously designed to enhance crime scene investigations. This system excels in detecting a wide array of evidence types, including body fluids, fingerprints on nonporous materials, bloodstains on dark fabrics, and questioned documents. Covering a broad spectral response range from 180nm to 1100nm, it offers both static and dynamic camera shoots using UV, visible, and IR light.

The OR-GQP4000 integrates a high-definition camera, various light sources, and real-time image processing capabilities, ensuring comprehensive evidence capture and analysis. Its portable design and user-friendly interface make it suitable for both laboratory and field use. The system includes a nine-wavelength light unit, a three-wavelength lamp shade, built-in Li batteries, and multiple connectivity options, such as 4G SIM card, WIFI, RJ45, and Bluetooth. Additionally, it features a 7-inch touch screen, Windows 10 operating system, and professional photographing and image processing software, providing investigators with powerful tools to locate and document evidence accurately and efficiently.

Ideal for detecting latent fingerprints and bloodstains, the OR-GQP4000 is an indispensable asset for forensic professionals, combining portability, versatility, and advanced technology to support thorough and precise crime scene investigations.

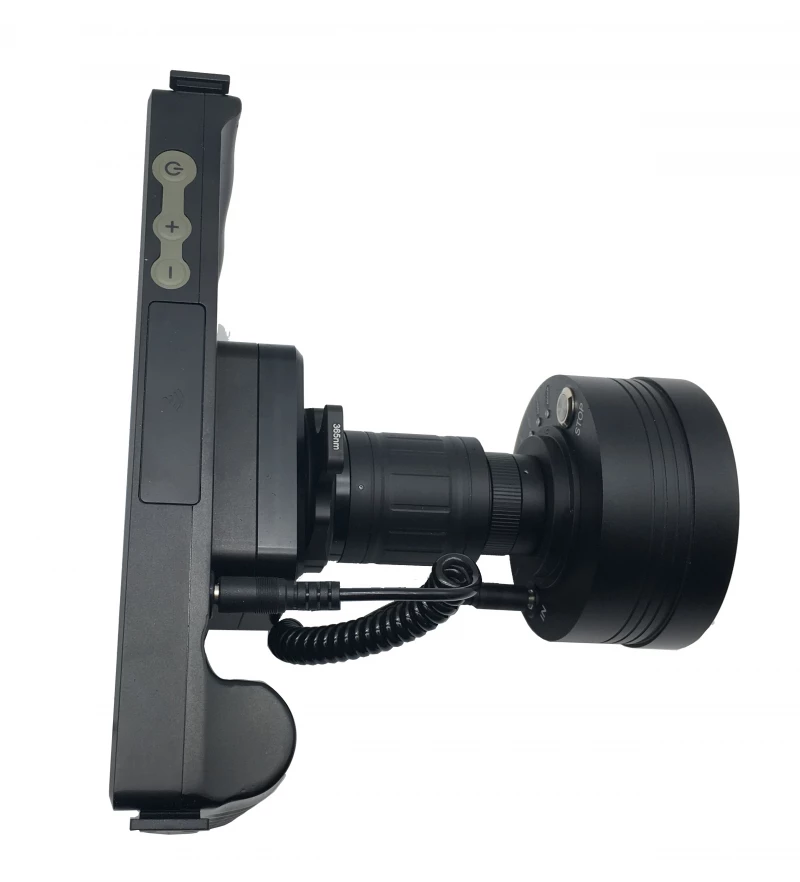

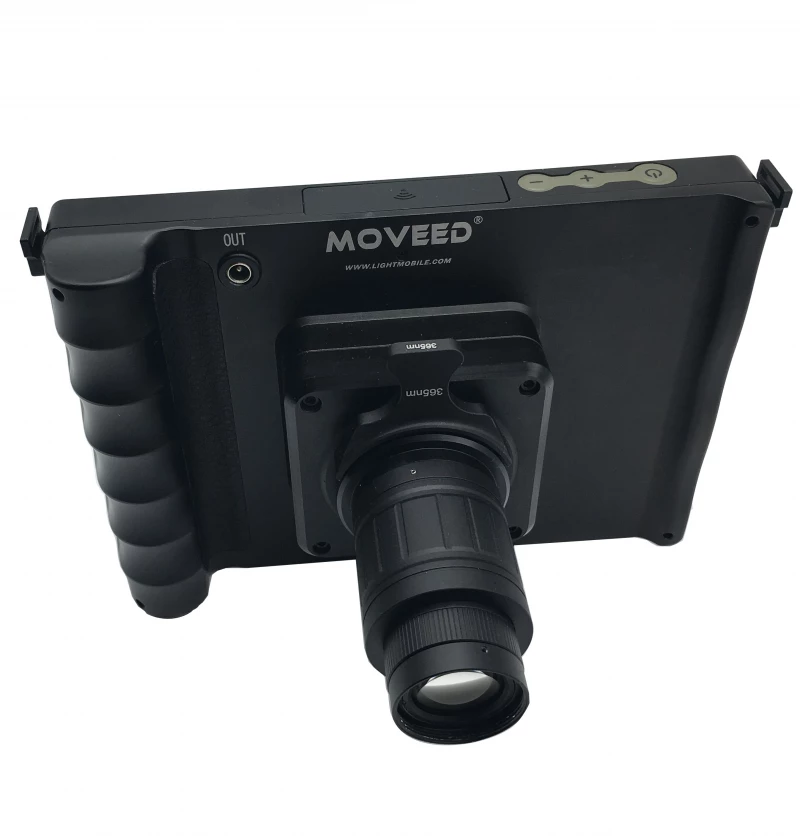

Ultra-wide Multi-spectral Evidence Searching and Imaging System OR-GQP4000

Visit the Hangzhou Hengli Electronic Tech. Co. LTD Store

Specifications

Emission Spectral Range: 254 – 940 nm
Application: Forensic Analysis
Lamp Shade Wavelengths: 254-450 nm
Built-in Li Batteries: 6 Ah
Connectivity: 4G SIM card, WIFI, RJ45, Bluetooth
Operating System: Windows 10
Touch Screen: 7-inch, 300 nits, 1280x800, 10-point touch IPS capacitive
Storage: SSD 128GB, 4GB RAM
Ports: TF card slot, SIM card slot, USB interface, HDMI interface
Camera: Integrated for photo and video
Software: Photographing and image processing

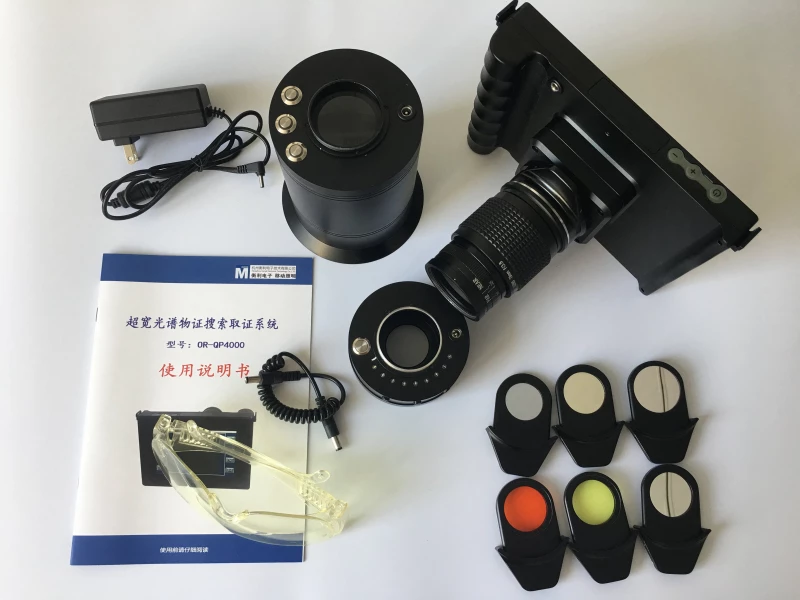

Additional Features: UV protection goggle, power adapter, connecting wire, waterproof and shock-resistant carrying case

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Portable and easy to operate; suitable for both laboratory and crime scene use
  • Integrated system with camera lens, light sources, filters, and host
  • Single-person operation capability
  • Nine-wavelength light unit and three-wavelength lamp shade for comprehensive spectral coverage
  • Built-in Li batteries and connectivity options (4G SIM card, WIFI, RJ45, Bluetooth)
  • Recording and speaker functions
  • Trace identification mark function
  • Windows 10 OS with photographing and image processing software
  • 7-inch, 10-point touch IPS capacitive touch screen
  • SSD solid-state drive (128GB) and 4GB storage
  • Multiple connectivity ports (TF card slot, SIM card slot, USB interface, HDMI interface)

Applications

  • Detecting latent fingerprints/palm prints on nonporous surfaces (walls, plastic steel doors/windows, stainless steel, reflective mirrors, transparent glass, plastic, coated paper, marble, furniture)
  • Documenting bloodstains on dark cotton fabrics and black tiles
  • Non-destructive evidence locating and photographing
  • Latent bloodstain detection and questioned document examination using IR light
  • Criminal photography and image processing with professional software for background removal, brightness adjustment, reversed-phase, and high sensitivity

Frequently Asked Questions

What is the main function of the OR-GQP4000 system?
The OR-GQP4000 system is designed to detect and document various types of evidence at crime scenes, including body fluids, fingerprints on nonporous materials, bloodstains on dark fabrics, and questioned documents.
What spectral range does the OR-GQP4000 cover?
The OR-GQP4000 covers a spectral response range from 180nm to 1100nm, allowing it to perform both static and dynamic camera shoots using UV, visible, and IR light.
How portable is the OR-GQP4000 system?
The OR-GQP4000 is highly portable, featuring a compact and integrated design that combines the camera, light sources, filters, and host into a single unit. It can be easily transported and operated by a single person.
What kind of light sources are included in the OR-GQP4000?
The system includes a nine-wavelength light unit with LEDs of various wavelengths and a three-wavelength lamp shade, providing comprehensive spectral coverage for detecting different types of evidence.
Can the OR-GQP4000 connect to a network?
Yes, the OR-GQP4000 can connect to a network using a 4G SIM card, WIFI, or RJ45. It also has Bluetooth capability.
Does the OR-GQP4000 have any safety features?
Yes, the OR-GQP4000 includes UV protection goggles to protect users' eyes and skin from UV light exposure. The system also adopts a sealed type photograph design to avoid direct UV light contact.
What operating system does the OR-GQP4000 use?
The OR-GQP4000 uses the Windows 10 operating system, which supports its professional photographing and image processing software.
What kind of screen does the OR-GQP4000 have?
The system features a 7-inch, 300 nits, 1280x800 resolution, 10-point touch IPS capacitive touch screen, providing a user-friendly interface for operation and image review.
What are the storage capabilities of the OR-GQP4000?
The OR-GQP4000 is equipped with a 128GB SSD solid-state drive and 4GB of RAM, ensuring ample storage and efficient performance.
What types of evidence can the OR-GQP4000 detect?
The OR-GQP4000 can detect latent fingerprints and palm prints on nonporous surfaces, bloodstains on dark fabrics, and questioned documents. It is also capable of photographing and video recording evidence for detailed analysis.

Got more questions? Use the inquiry form to ask the supplier directly.
