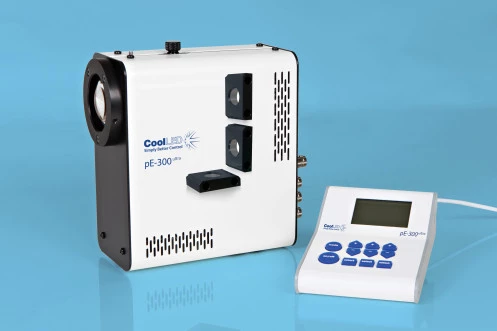

pE-300ultra LED Illumination for Microscopy Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
Simply Better Control is at the heart of the CoolLED pE-300 Series, a range of LED illumination systems designed to enhance your microscopy experience. Whether you're working in fluorescence, optogenetics, electrophysiology, or high-speed microscopy applications, the pE-300 Series offers a versatile solution. Each system in the series is crafted to provide consistent, reliable illumination, ensuring that your research is supported by the best in LED technology.
The pE-300 lite is a compact and cost-effective solution, perfect for those who need simple white light illumination. Designed to fit most microscopes, it offers a straightforward setup process, attaching directly to your microscope’s epi-fluorescence port with ease. This system is ideal for everyday use, configured to excite common fluorophores such as DAPI, FITC, TRITC, and Cy5. With its instant on/off capability and intensity optimization via a simple desktop Control Pod, the pE-300 lite is both user-friendly and efficient.
For those requiring more advanced control, the pE-300 ultra provides fast, controllable illumination without the need for a filter wheel. This system offers individual channel intensity control and selection, making it a versatile choice for complex imaging tasks. The pE-300 ultra integrates seamlessly with imaging software, allowing for global and individual channel triggering with microsecond precision. Its long-lasting LEDs ensure stable and repeatable light output, making it a reliable choice for demanding applications.
The pE-300 white takes controllable illumination to the next level with its 3-channel control pod. This feature allows users to select and control excitation wavelengths, providing the flexibility to balance different fluorophores or minimize sample bleaching. The pE-300 white supports integration with popular imaging software, offering a streamlined workflow for consistent results. Additionally, its ability to view stains individually or in combination without changing filter cubes simplifies the screening process, especially when using multi-band filter sets.
Overall, the CoolLED pE-300 Series offers a comprehensive range of LED illumination solutions that cater to a variety of microscopy needs. With their long lifespan, stable intensity, and user-friendly design, these systems provide a robust platform for researchers seeking reliable and efficient illumination.
pE-300ultra LED Illumination for Microscopy Applications
Specifications |
|
|---|---|
| Emission Spectral Range: | 350 – 700 nm |
| Application: | Microscopy |
| Intensity Control: | 0-100% |
| Global Remote Triggering: | TTL, microsecond |
| Individual Channel Triggering: | TTL, microsecond |
Features
- Versatile LED Illumination: The pE-300 Series offers a range of LED illumination systems suitable for fluorescence, optogenetics, electrophysiology, and high-speed microscopy applications.
- Simple White Light with pE-300 lite: Designed to fit most microscopes, the pE-300 lite provides a compact and cost-effective solution, easily accessible through lab consumables budgets.
- Easy Installation: The pE-300 lite attaches directly to your microscope’s epi-fluorescence port in seconds with a simple adjustment for optimized light output.
- User-Friendly Operation: Features instant on/off functionality with a desktop Control Pod to optimize intensity and minimize sample damage.
- Long-lasting LEDs: Unlike conventional lamps, LEDs offer a stable and repeatable light source with consistent intensity throughout their extended lifespan.
- Advanced Control with pE-300 ultra: Provides fast, controllable illumination without the need for a filter wheel, offering individual channel intensity control and integration with imaging software.
- Broad Spectrum and Compatibility: Compatible with a wide range of fluorophores such as DAPI, FITC, TRITC, Cy5, and more, supporting a broad spectrum of applications.
- Mercury-Free and Eco-Friendly: The pE-300 Series is mercury-free, offering an environmentally friendly alternative to traditional lighting systems.
- Enhanced Control with pE-300 white: Features a 3-channel control pod for precise excitation wavelength selection, minimizing bleaching and allowing for individual or combined stain viewing without filter cube changes.
- Global and Individual Channel Triggering: Supports global remote triggering and individual channel triggering with TTL, microsecond precision for advanced experimental setups.
- Integration and Compatibility: Seamlessly integrates with popular imaging software, providing consistent and reliable control for your imaging needs.
Applications
- Fluorescence Microscopy: Ideal for imaging multiple fluorophores simultaneously.
- Optogenetics Research: Provides precise light control for stimulation experiments.
- Electrophysiology Studies: Enables high-speed, stable illumination for live cell imaging.
- High-Speed Imaging: Supports rapid multi-channel acquisition with minimal bleaching.
- Multi-Color Screening: Facilitates efficient observation of multi-stained samples.
Frequently Asked Questions
Yes, the CoolLED pE-300ultra has a wide range of microscope adaptors and fits most microscopes.
No, the CoolLED pE-300ultra has precise irradiance control in 1% steps (0-100%) and does not require ND filters.
The benefits of using the CoolLED pE-300ultra include clean bright illumination across the spectrum, instant on/off without shutters required, no warm up or cool down, and stable & repeatable reliable and consistent results.
The CoolLED pE-300ultra is a fluorescence microscopy Illumination System that offers intense, broad-spectrum LED illumination for imaging most common fluorophores.
The new generation of LED technology has double the irradiance at the sample plane, and for even higher irradiance is available as a Direct Fit model (which also reduces the cost to buy and run thanks to fewer consumables).
