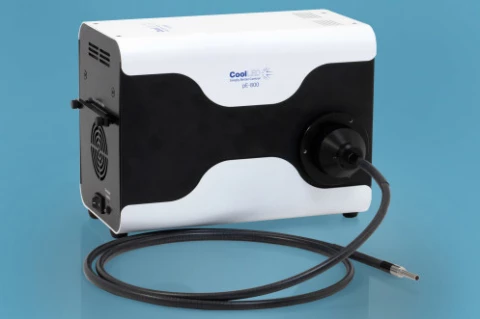

pE-800 Series 8-Channel LED Illumination System

Specifications

Emission Spectral Range: 365 – 740 nm
Application: Microscopy
Channels: 8
TTL Triggering: <7 µs
Irradiance Control: 0-2% and 1% steps from 2-100%
Connectivity: USB 2.0
Document icon Download Data Sheet Download icon

Features


  • 8-Channel LED Illumination: Experience unparalleled control with eight individually controllable channels, offering broad spectral coverage from 365-740 nm.

  • Lightning-Fast Control: Industry-leading <7 μs TTL triggering for capturing high-speed events and dynamic live cell imaging.

  • Protect Your Samples: Minimize phototoxicity and photobleaching with hardware synchronization that restricts exposure to image acquisition.

  • Fine Irradiance Control: Achieve precise light levels with control from 0-2% and in 1% steps from 2-100%, ensuring optimal image quality.

  • Maximum Compatibility: Compatible with liquid light guides and offers software, digital, and analogue control for versatile applications.

  • Sustainable Illumination: Compact, laser-free design with ultra-low power consumption and no toxic mercury, promoting cleaner, greener labs.

  • Intuitive Software Control: Fast USB 2.0 connectivity and integration with major software platforms via the LightBridge Graphical User Interface.

  • Real-Time Control Features: Includes LED selection, on/off control, real-time irradiance control, Sequence Runner, and the ability to save and load presets.

  • Versatile Applications: Ideal for calcium and pH imaging, ratiometric measurements, and everyday fluorescence with the highest quality data output.

Applications


  • Calcium Imaging: Supercharged calcium imaging capabilities with a broad spectrum range (340-635 nm).

  • Time-Lapse Studies: Protect samples from phototoxicity and photobleaching, ensuring high-quality data.

  • Live Cell Imaging: Capture high-speed events with industry-leading <7 μs TTL triggering for precise temporal resolution.

  • Ratiometric Measurements: Achieve accurate measurements with precise hardware synchronization and compatibility with USB-TTL Conversion Kit.

  • Fluorescence Imaging: Eight powerful LEDs provide broad spectral coverage, offering freedom in fluorophore choice.

  • Electrophysiology and Optogenetics: Utilize analogue settings for specialized applications.

  • Sustainable Illumination: Benefit from compact, laser-free design with ultra-low power consumption and mercury-free operation.

  • Software Control: Intuitive control via LightBridge GUI and fast USB 2.0 connectivity, compatible with major software platforms.
