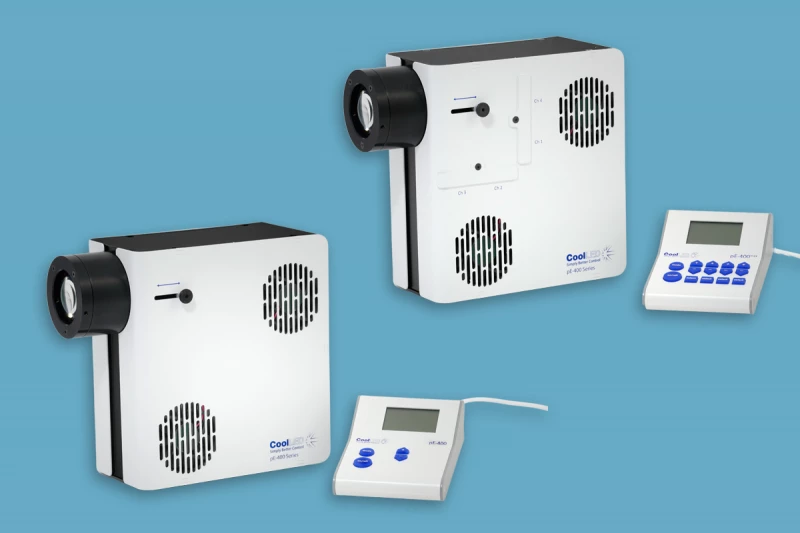

pE-400 Series Controllable LED Microscopy Illumination System
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
The pE-400 Series from CoolLED is designed to deliver exceptional performance in LED microscopy illumination. With its advanced technology, this series offers a choice between two illumination systems, catering to both routine and advanced fluorescence applications. The pE-400 Series stands out with its controllable white light, providing users with unparalleled flexibility and precision in their microscopy work.
Equipped with four powerful LEDs, the pE-400 Series covers a broad spectral range from 365 to 635 nm. This range ensures compatibility with all major fluorophores and opsins, from DAPI through YFP to Cy5. Built on CoolLED's award-winning technology, the pE-400 Series guarantees stable and reliable operation without the use of mercury. Its ultra-low power consumption not only enhances performance but also promotes sustainability, making it an environmentally friendly choice for modern laboratories.
The pE-400 Series offers global control of white light through a user-friendly manual control pod, allowing for quick and simple adjustments of on/off and irradiance settings. Unlike traditional light sources, the pE-400 Series enables global control within third-party imaging software via a USB connection. For those requiring high-speed imaging and optogenetics, the pE-400 max provides fast, four-channel control, maximizing image quality and operational efficiency.
With the pE-400 max, users benefit from individual control of four channels, which can be operated through a manual control pod, third-party imaging software, or The LightBridge graphical user interface. This capability allows for capturing high-speed events without the need for expensive external filter wheels. The integration of inline single-band excitation filters and compatibility with multi-band filters offers a cost-effective approach to achieving imaging speeds of less than 10 µs.
The pE-400 max further enhances its functionality with the Sequence Runner feature, enabling affordable automation for complex imaging sequences. This function, combined with compatibility with the pE-6501 USB controlled TTL trigger box, ensures seamless integration into third-party imaging software, providing users with a comprehensive solution for their microscopy needs.
pE-400 Series Controllable LED Microscopy Illumination System
Specifications |
|
|---|---|
| Emission Spectral Range: | 365 – 635 nm |
| Application: | Microscopy |
| Irradiance Control: | 1% steps (0-100%) |
| Global Remote Triggering: | <10 µs |
| Individual Channel Triggering: | <10 µs |
| Temporal Resolution: | <10 µs |
Features
- Four Powerful LEDs: Covers a broad spectral range from 365-635 nm, suitable for major fluorophores and opsins from DAPI through YFP to Cy5.
- Mercury-Free Technology: Energy-efficient and environmentally friendly, ensuring stable and reliable operation.
- Near-Silent Operation: Designed for quiet performance in laboratory settings.
- Flexible Light Delivery: Options for direct fit or liquid light guide to suit various applications.
- Optimized Irradiance Control: Adjustable in 1% steps (0-100%) for precise light management.
- Manual Control Pod: Easy on/off and irradiance settings for quick adjustments.
- Software Integration: Compatible with third-party imaging software for enhanced control.
- Global Remote Triggering: Fast TTL triggering (<10 µs) for precise synchronization.
- Individual Channel Control (pE-400 max): Separate control for each channel, enhancing image quality and flexibility.
- LightBridge Graphical User Interface: Intuitive control for advanced users.
- Sequence Runner for Automation: Affordable automation with the four-channel Sequence Runner function.
- Inline Excitation Filter Holders: Allows fitting of filters directly into the system, eliminating the need for external filter wheels.
Applications
- Controllable White Light: The pE-400 series offers controllable white light with options for routine to advanced fluorescence applications.
- Mercury-Free Technology: Built on award-winning CoolLED technology, the pE-400 series is mercury-free, energy-efficient, and offers stable and reliable operation.
- Near-Silent Operation: Designed for quiet performance, ensuring minimal disruption during use.
- Flexible Light Delivery: Light can be delivered via direct fit or liquid light guide.
- Global and Individual Channel Control: The pE-400 max provides fast, 4-channel control with individual channel selection and irradiance control.
- High-Speed Imaging: Ideal for high-speed imaging and optogenetics, with global remote triggering (TTL, <10 µs) and individual channel triggering.
- Sequence Runner for Automation: The pE-400 max includes the Sequence Runner function for affordable automation.
- Inline Excitation Filter Holders: Ability to fit inline excitation filter holders for enhanced imaging capabilities.
Frequently Asked Questions
The pE-400 Series is used for fluorescence microscopy applications.
The pE-400 has global control, while the pE-400max has individual channel control.
Yes, the pE-400 can be controlled remotely via USB or TTL trigger.
Yes, the pE-400max has a Sequence Runner for high-speed automation.
Yes, the pE-400max has optional inline filter holders for high-speed, high-contrast imaging.
