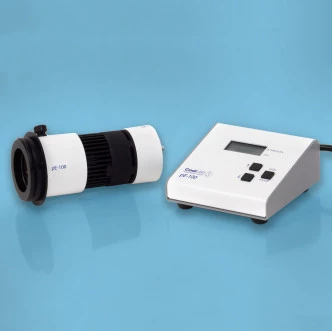

pE-100 Single Wavelength LED Fluorescence Illumination System
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
Introducing the pE-100 Series, a revolutionary advancement in LED illumination systems designed for fluorescence screening. This mercury-free family of compact and user-friendly devices offers a single LED excitation wavelength, making it an ideal choice for applications that demand precision and reliability. With 20 different LED wavelengths available, ranging from the near-UV at 365 nm to the near-IR at 770 nm, the pE-100 Series ensures versatility and adaptability for various scientific and research needs.
The pE-100 Series is engineered with simplicity and efficiency in mind, providing three standard configuration options to cater to diverse requirements. The Direct-fit configuration allows seamless integration with a wide range of microscopes, both current and older models, through a selection of adaptable microscope connectors. This ensures optimal alignment with the optical path of your microscope, enhancing the overall performance of your fluorescence experiments.
For those requiring a more flexible setup, the Liquid Light Guide configuration offers a fixed 3 mm diameter liquid light guide, providing consistent and reliable illumination. Alternatively, the Fibre configuration is equipped with an SMA connection, designed for efficient coupling with a variety of multimode fibres. This option also includes excitation filter holders, allowing for precise control over the illumination process.
For applications that necessitate dual LED wavelengths, the Combination Configuration is available. This setup allows for the integration of two pE-100 units using the pE-Combiner, enabling independent control and triggering of each wavelength. This flexibility ensures that the pE-100 Series can meet the demands of even the most complex fluorescence screening tasks.
With a commitment to quality and innovation, the pE-100 Series is backed by a 36-month warranty on both the system and LEDs, providing peace of mind and assurance of long-term performance. Compact and lightweight, the pE-100 Series is designed to fit seamlessly into any laboratory environment, making it a valuable addition to your research toolkit.
pE-100 Single Wavelength LED Fluorescence Illumination System
Specifications |
|
|---|---|
| Emission Spectral Range: | 365 – 770 nm |
| Application: | Microscopy |
| Liquid Light Guide Diameter: | 3 mm |
| Liquid Light Guide Length: | 1.5 m |
| Warranty System: | 36 months |
| Warranty LEDs: | 36 months |
| PE-100 Light Source Dimensions: | 60 mm (w) x 170 mm (d) x 70 mm (h) |
Features
- Mercury-Free LED Illumination: Environmentally safe and energy-efficient, reducing laboratory carbon footprint.
- Single Wavelength Excitation: Supports precise fluorescence excitation across 20 LED wavelengths (365–770 nm).
- Flexible Configurations: Direct-fit, light guide, fibre, and combination setups for diverse microscopy needs.
- Manual and Remote Control: Instant on/off and 1% step intensity adjustments with TTL triggering (~150 μs).
- Compact & Lightweight: Optimized for easy integration with microscopes or fibre optic systems.
- Long Lifetime: No bulb replacements, quiet operation, and minimal maintenance required.
Applications
- Fluorescence Screening: Ideal for routine fluorescence assays and imaging.
- Microscopy Integration: Compatible with a wide range of current and legacy microscope models.
- Multimode Fibre Excitation: Efficient coupling for fibre-based fluorescence experiments.
- Environmental Sustainability: Supports laboratories in reducing energy consumption and hazardous waste.
Frequently Asked Questions
The pE-100 series can be specified at any one of 20 different LED wavelengths.
There are three standard pE-100 configuration options: Direct-fit pE-100, Liquid Light Guide pE-100, and Fibre pE-100.
The pE-100 series is a family of single-wavelength fluorescence LED illumination systems that are compact and simple to use.
The pE-100 Light Source is 60 mm (w) x 170 mm (d) x 70 mm (h) and weighs 0.38 kg.
The warranty for the pE-100 series is 36 months for the system and 36 months for the LEDs.
