Description

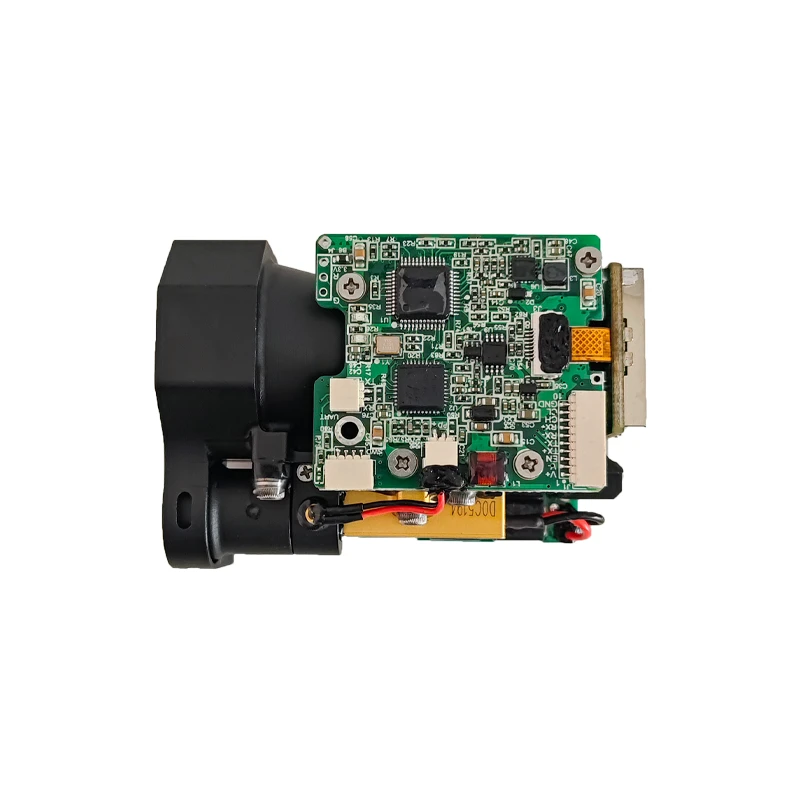

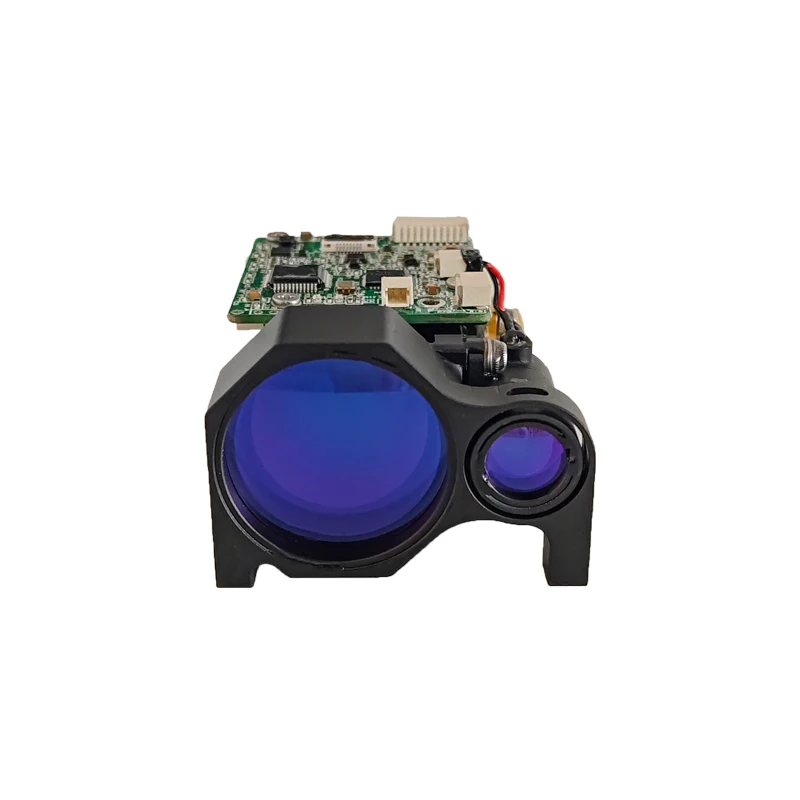

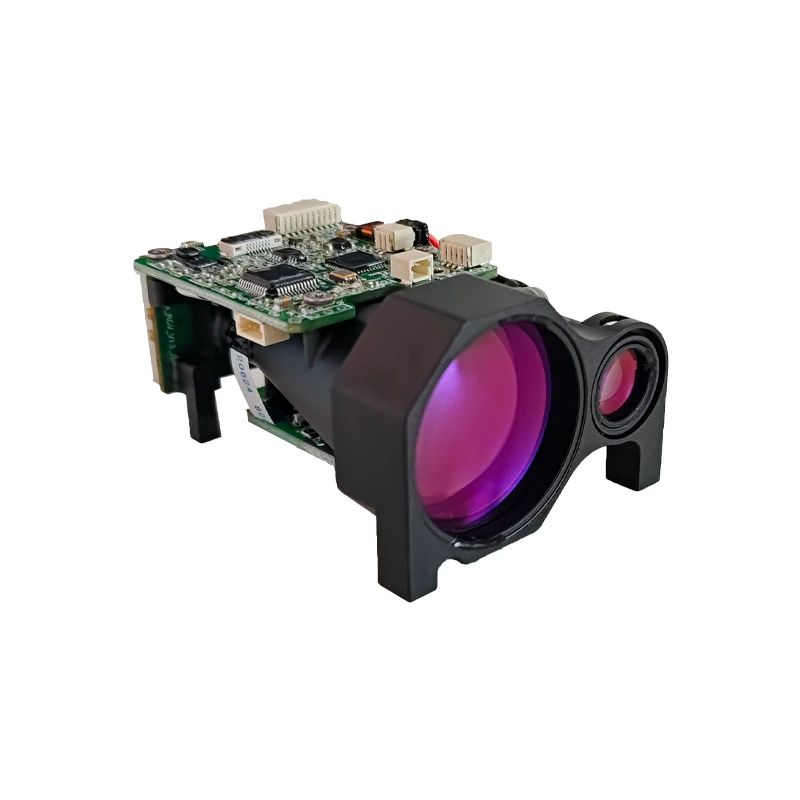

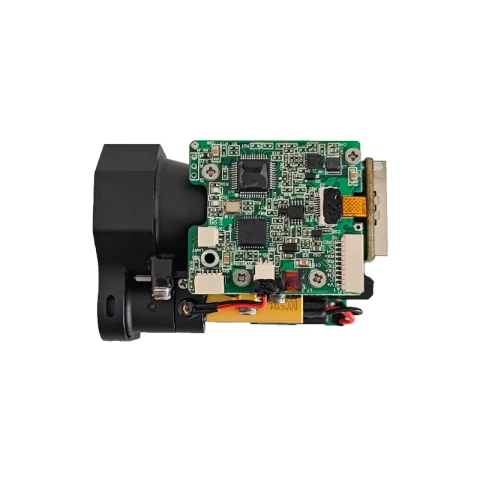

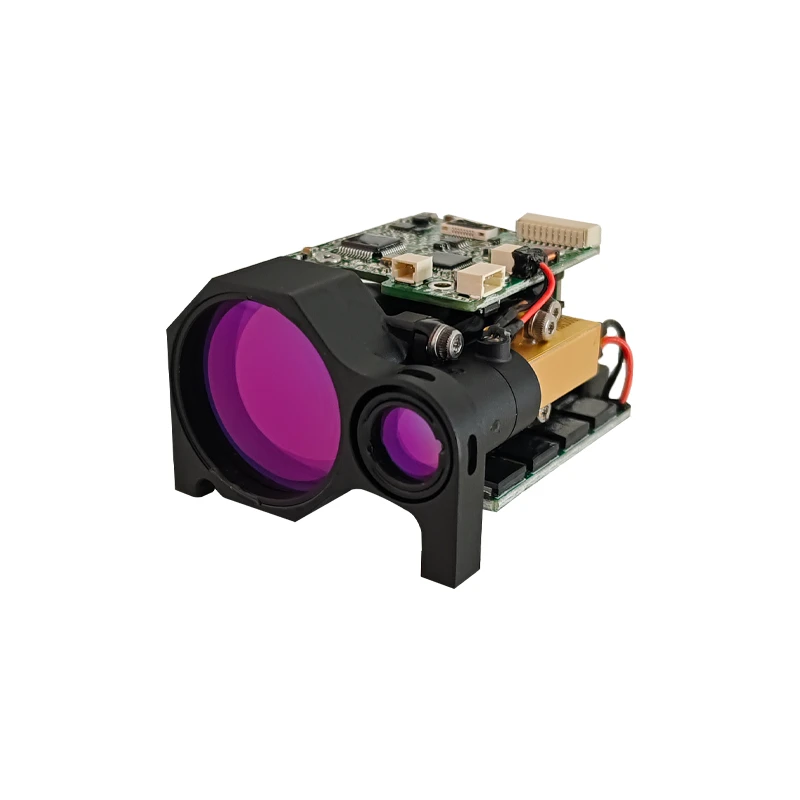

ELRF-H25 laser rangefinder module is developed based on our self-designed 1535nm erbium laser. It adopts a single-pulse TOF (Time-of-Flight) ranging method, with a maximum measurement range of ≥8km. The module consists of the laser, transmission optical system, receiving optical system, and control circuit board. It communicates with the host computer via RS422 serial port and provides test software and communication protocols for easy secondary development by users. The module features small size, light weight, stable performance, high impact resistance, and is Class 1 eye-safe.
Lumispot 1535nm 8000m RS422/TTL Professional Laser Ranging Module
Specifications
| Measurement Range: | 30000 – 10000000 mm |
|---|---|
| Resolution : | 30000 mm |
| Wavelength: | 1535nm±5nm |
| Laser Divergence Angle: | ≤0.3mrad |
| Continuous Ranging Frequency: | 1~10Hz adjustable |
| Ranging Accuracy: | ≤±1m |
| Accuracy: | ≥98% |
| Minimum Measuring Range: | ≤30m |
| Ranging Resolution: | ≤30m |
| Power Supply Voltage: | DC5V ~ 28V |
| Weight: | <75g |
| Standby Power Consumption: | ≤150mW |
| Average Power Consumption: | ≤3W |
| Peak Power Consumption: | ≤7W |
| Size: | ≤65×46×32mm |
| Operating Temperature: | -40℃ ~ +60℃ |
| Storage Temperature: | -55℃ ~ +70℃ |
| Communication Interface: | TTL/RS422 |
Download Data Sheet
Features
- Model: ELRF-H25 Laser Range Finder Module
- Version: 2025.09
- High Precision Measurement: Provides accurate distance measurements for a variety of applications.
- Compact Design: Lightweight and easy to integrate into existing systems.
- Wide Temperature Range: Operates efficiently in diverse environmental conditions.
- Advanced Laser Technology: Utilizes cutting-edge laser technology for reliable performance.
- Versatile Applications: Suitable for industrial, commercial, and personal use.
- Easy Installation: User-friendly setup process with minimal configuration required.
Applications
- Distance Measurement: Accurately measures distances up to 25 meters.
- High Precision: Provides measurement accuracy within ±1 mm.
- Compact Design: Small and lightweight for easy integration into various devices.
- Low Power Consumption: Optimized for minimal energy usage, ideal for battery-operated devices.
- Wide Operating Temperature Range: Functions effectively in temperatures ranging from -10℃ to 50℃.
- Fast Response Time: Quick measurement processing for real-time applications.
- Multiple Output Interfaces: Supports UART, I2C, and SPI for versatile connectivity.
