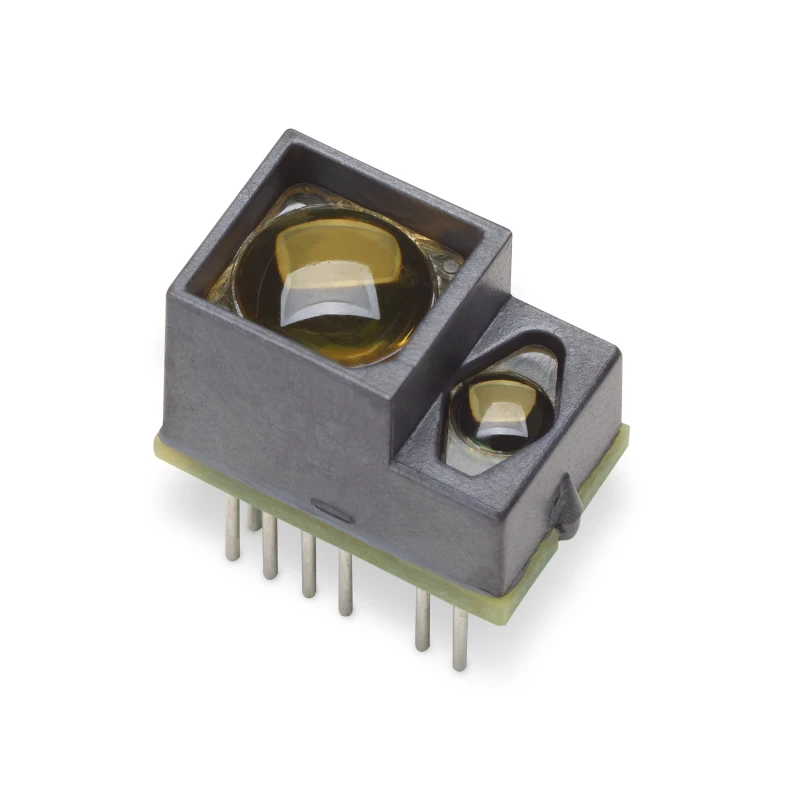

The Broadcom AFBR-S50LX85D is a state-of-the-art multi-pixel optical sensor module designed for precise distance and motion measurement using the Time-of-Flight (ToF) principle. This innovative technology is tailored for applications that demand exceptional speed and accuracy over extended distances, while maintaining a compact form factor and minimal power consumption. Its advanced design allows for reliable performance in outdoor environments, even under full sunlight, thanks to its effective ambient light suppression capabilities. The sensor's versatility is highlighted by its ability to deliver accurate measurements across a variety of surfaces, including white, black, colored, metallic, and retroreflective materials.
At the core of the AFBR-S50LX85D is an integrated infrared laser light source, coupled with an internal clock, which operates on a single 5.0V power supply. The module communicates data through a digital Serial Peripheral Interface (SPI), utilizing standard 3.3V CMOS levels. This efficient design includes a reference pixel for system health monitoring, alongside integrated voltage and temperature sensors for enhanced reliability. The sensor supports frame rates of up to 3 kHz, contingent on the microcontroller, data streaming mode, and the number of evaluated pixels. For applications requiring frame rates up to 100 Hz, the sensor employs a dual-frequency (2f) mode, enabling an unambiguous range of up to 200 meters.
The AFBR-S50LX85D also boasts a compact size, with dimensions of 12.4 mm × 7.6 mm × 7.9 mm, making it an ideal choice for space-constrained applications. It features a receiver with 32 pixels, each with a field of view of 1.55° × 1.55°, and a transmitter beam width of 2° × 2°, typically illuminating 1 to 3 pixels. With a distance range extending beyond 50 meters and an operational temperature range of –20°C to 70°C, this sensor module is engineered for robust performance across diverse conditions. The SPI digital interface supports data transfer rates up to 25 MHz, ensuring swift and efficient communication for a wide array of applications.
EQ Photonics GmbH - Time-of-Flight distance sensor - AFBR-S50LX85D
Specifications |
|
|---|---|
| Measurement Range: | 50 – 50000 mm |
| Resolution : | 0.1 mm |
| Single Voltage Supply: | 5V |
| Typical Current Consumption: | 33 mA |
| Integrated Laser Light Source Wavelength: | 850 nm |
| Typical Optical Peak Output Power: | 80 mW |
| Typical Optical Average Output Power: | < 0.6 mW |
| Receiver Pixels: | 32 |
| Field Of View Per Pixel: | 1.55° × 1.55° |
| Transmitter Beam Width: | 2° × 2° |
| Distance Range: | up to 50m and beyond |
| Operation Temperature (ambient): | –20°C to 70°C |
| SPI Digital Interface: | up to 25 MHz |
| Module Size Without Pins: | 12.4 mm × 7.6 mm × 7.9 mm |
| Operation Up To: | 200 klx |
| Accuracy Error: | typically below ±2% |
| Unambiguous Range In 2f Mode: | up to 200m |
Features
- Dimensions 8 x 8 x 12 mm
- Weight <1g
- Ambient light resistance >100 klux
- SPI interface
- Operating voltage 5V
- Reference pixel
Applications
- Distance measurement
- Proximity sensor
- Void detections
- Drone landing support
- Drone navigation
Frequently Asked Questions
The Broadcom AFBR-S50LX85D is a multi-pixel optical distance and motion measurement sensor module based on the Time-of-Flight principle, designed for high-speed and accurate measurements at longer distances with low power consumption.
The AFBR-S50LX85D has ambient light suppression, allowing it to be used in outdoor environments even in full sunlight.
The sensor can accurately measure against white, black, colored, metallic, and retroreflective surfaces.
The module requires a single power supply of 5.0V with a typical current consumption of 33 mA.
The sensor has a distance range of up to 50 meters and beyond, with an unambiguous range of up to 200 meters in dual-frequency mode.
The sensor can be used in distance measurement, human-machine interfaces, robotics, automation and control, security surveillance, inventory monitoring, and drone navigation.
The module supports frame rates of up to 3 kHz, depending on the microcontroller, data streaming mode, and number of evaluated pixels.
