Description

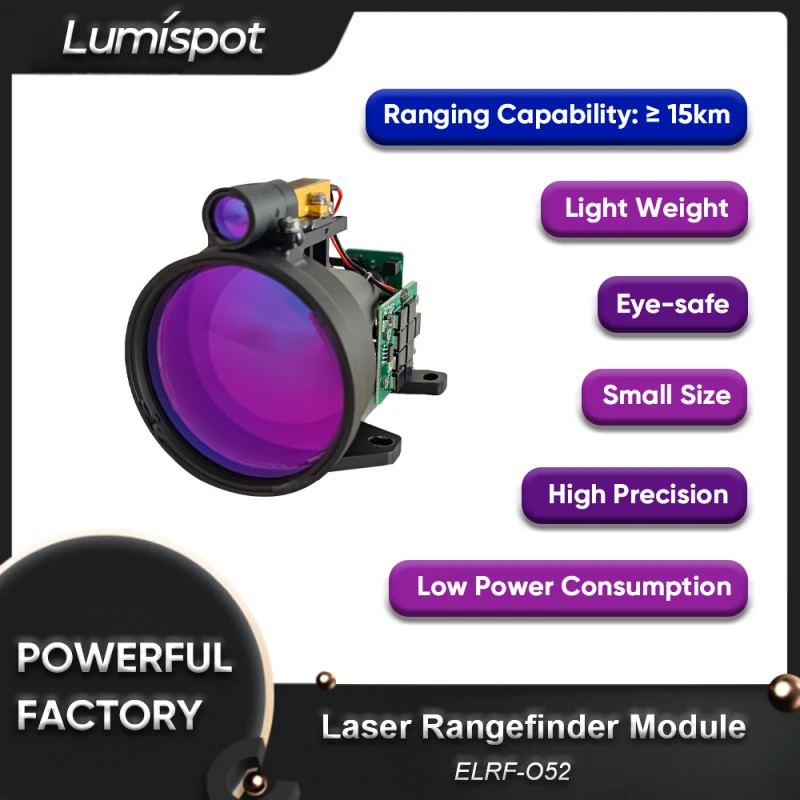

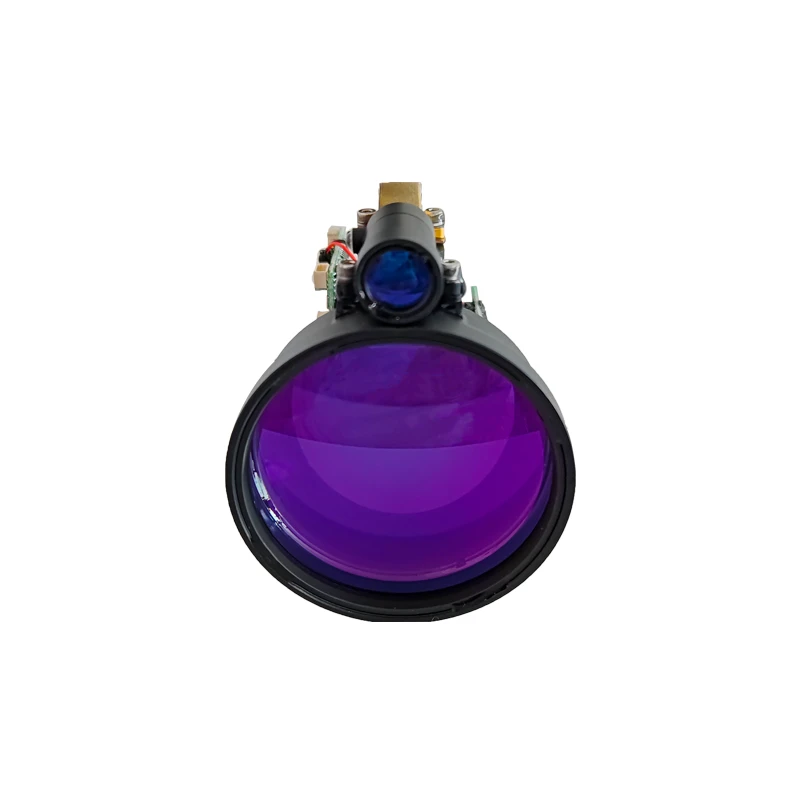

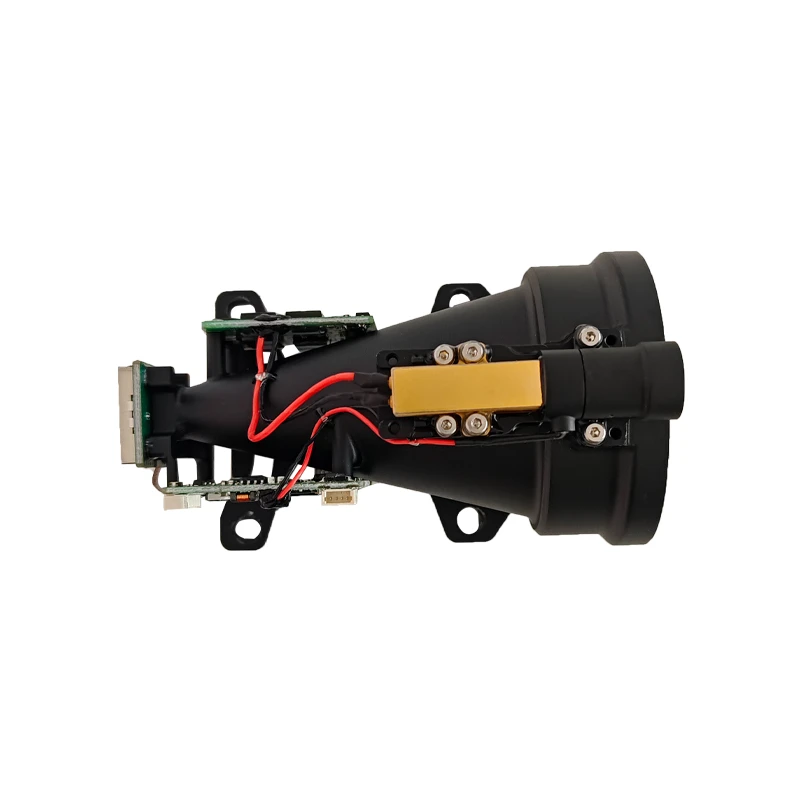

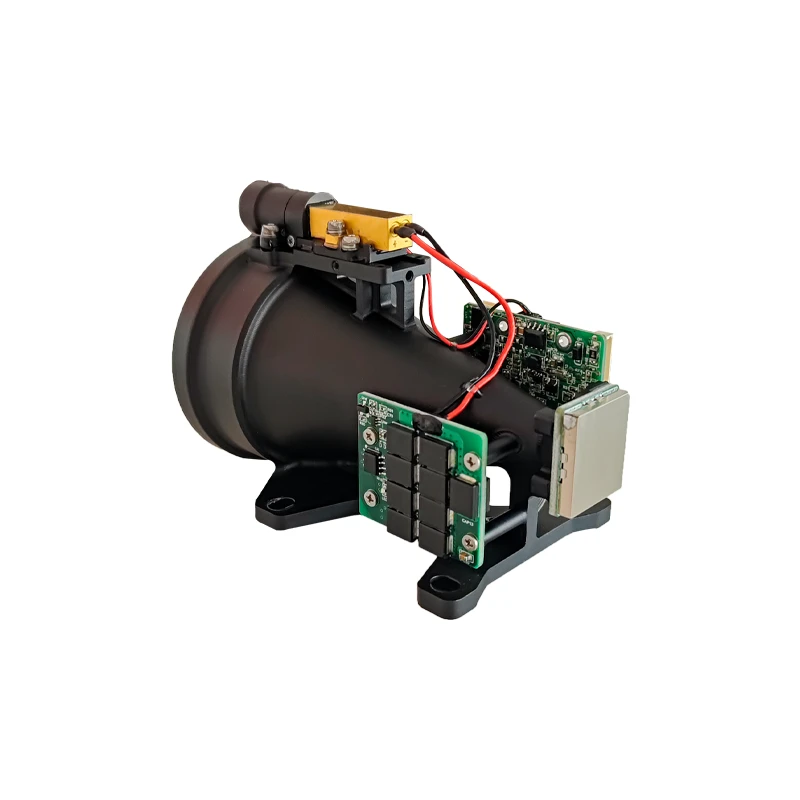

ELRF-O52 laser range finder module is developed based on the 1535nm erbium glass laser independently developed by Lumispot. It adopts single pulse TOF ranging mode and has a maximum measuring range of ≥15km. It is composed of laser, transmitting optical system, receiving optical system and control circuit board, and communicates with host computer through RS422 serial port, and provides host computer test software and communication protocol, which is convenient for user secondary development. It has the characteristics of small size, light weight, stable performance, high impact resistance, first-class eye safety, etc.
Lumispot Wholesale 15km Long Range Measurement Sensor Laser Ranging Module
Specifications
| Measurement Range: | 100000 – 20000000 mm |
|---|---|
| Resolution : | 30000 mm |
| Wavelength: | 1535nm±5nm |
| Laser Divergence Angle: | 0.3mrad |
| Continuous Ranging Frequency: | 1~10Hz adjustable |
| Ranging Accuracy: | ≤±1.5m |
| Accuracy: | ≥98% |
| Minimum Measuring Range: | ≤100m |
| Ranging Resolution: | ≤30m |
| Power Supply Voltage: | DC5V ~ 28V |
| Weight: | <270g |
| Standby Power Consumption: | ≤150mW |
| Average Power Consumption: | ≤6W |
| Peak Power Consumption: | ≤14W |
| Size: | ≤104×61×74mm |
| Operating Temperature: | -40℃ ~ +60℃ |
| Storage Temperature: | -55℃ ~ +70℃ |
| Communication Interface: | RS422/TTL |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Model: ELRF-O52 Laser Range Finder Module
- Version: 2025.09
- High Accuracy: Provides precise distance measurements with minimal error margin.
- Long Range Capability: Capable of measuring distances over a significant range, suitable for various applications.
- Compact Design: Lightweight and small form factor for easy integration into different systems.
- Durable Construction: Built to withstand harsh environmental conditions, ensuring reliable performance.
- Low Power Consumption: Efficient energy usage for prolonged operation without frequent battery changes.
- Temperature Range: Operates effectively within a wide temperature range, ensuring versatility in different climates.
- Easy Integration: Designed for seamless integration with existing systems and devices.
- Advanced Technology: Utilizes cutting-edge laser technology for superior performance and accuracy.
Applications
- Distance Measurement: Accurately measure distances for surveying and mapping applications.
- Industrial Automation: Integrate into automated systems for precise distance monitoring and control.
- Robotics: Enhance robotic navigation and obstacle detection with reliable range finding.
- Construction: Use in construction projects for site planning and layout verification.
- Agriculture: Implement in agricultural equipment for field measurement and management.
- Forestry: Assist in forest management and timber measurement with accurate distance data.
- Sports and Recreation: Utilize in sports like golf for distance estimation to targets.
