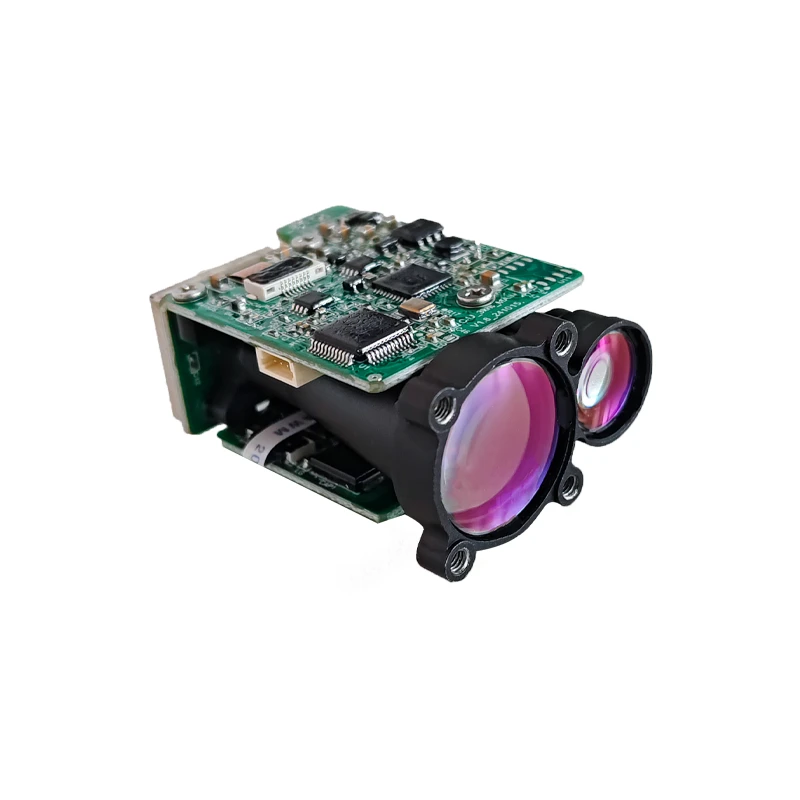

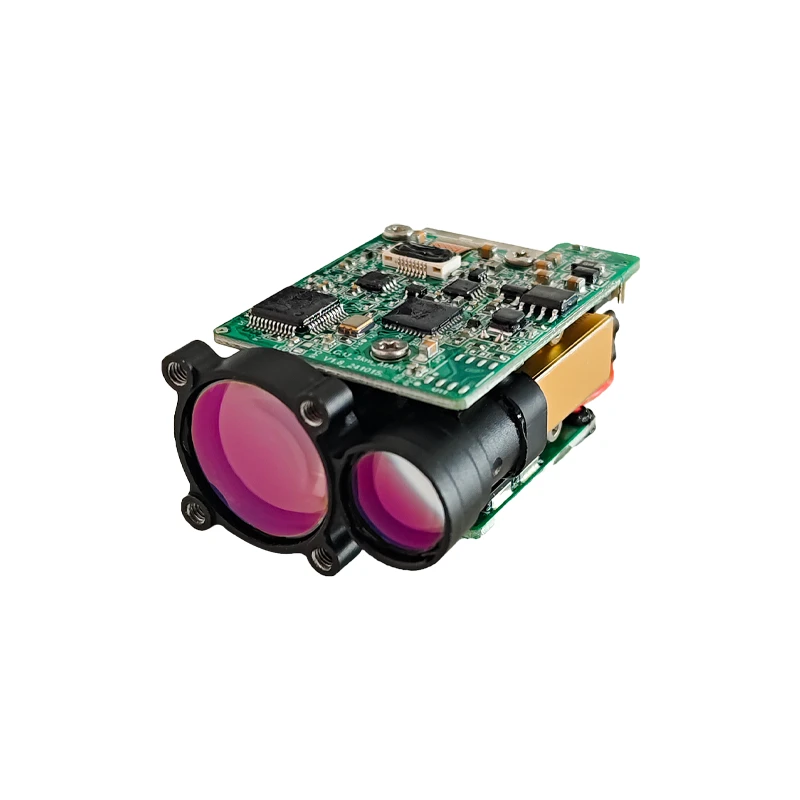

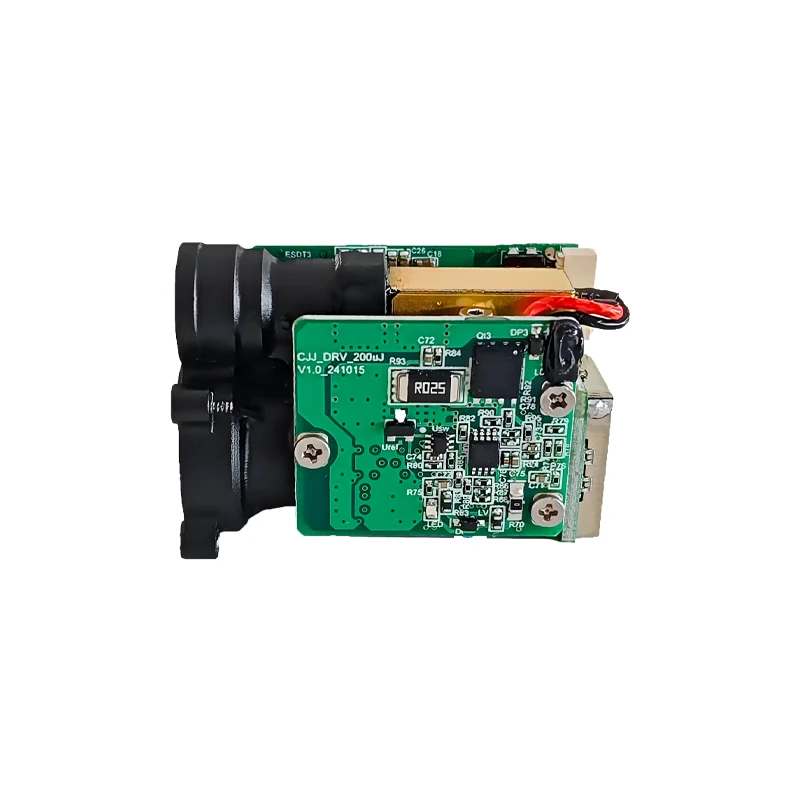

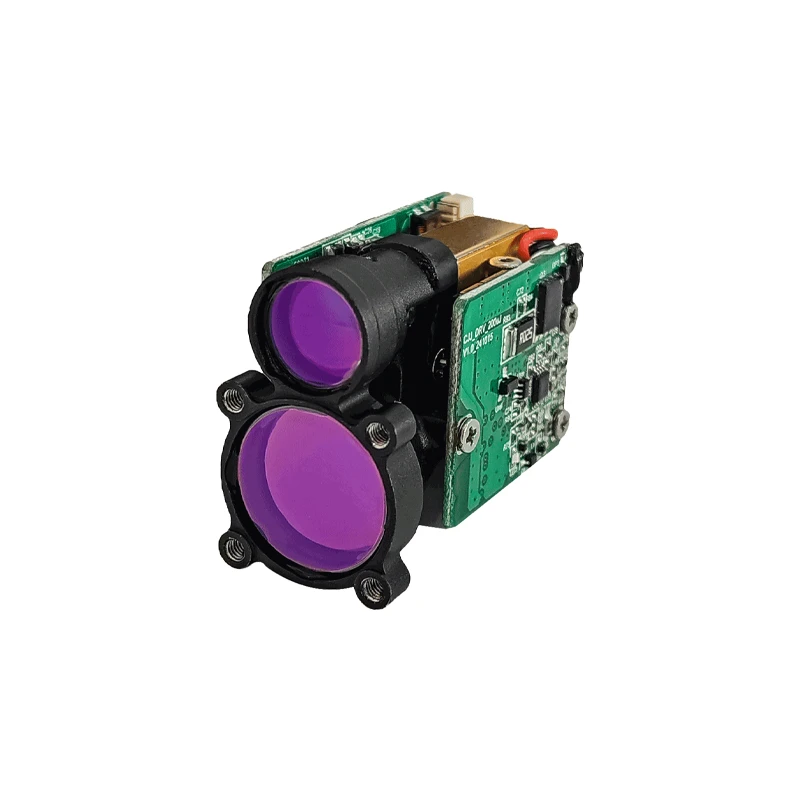

Lumispot 1535nm 5km Customizable Laser Rangefinder Module

Visit the Wuxi Lumispot Photoelectric Science & Technology Co., Ltd. Store

Specifications

Measurement Range: 15000 – 6000000 mm
Resolution : 30000 mm
For Large Targets Ranging Distance: ≥6km
For Vehicles Ranging Distance: ≥5km
For Personnel Ranging Distance: ≥3km
Wavelength: 1535nm±5nm
Laser Divergence Angle: ≤0.3mrad
Continuous Ranging Frequency: 1~10Hz adjustable
Ranging Accuracy: ≤±1m
Accuracy: ≥98%
Minimum Measuring Range: ≤15m
Ranging Resolution: ≤30m
Power Supply Voltage: DC5V ~ 28V
Weight: <40g
Standby Power Consumption: ≤0.15W
Average Power Consumption: ≤1W
Peak Power Consumption: ≤3W
Size: ≤50mm×23mm×33.5mm
Operating Temperature: -40℃ ~ +60℃
Storage Temperature: -55℃ ~ +70℃
Communication Interface: TTL/RS422
Document icon Download Data Sheet Download icon

Features


  • High Precision Measurement: The ELRF-E16 Laser Range Finder Module offers accurate distance measurement with a precision of up to ±1mm.

  • Long Range Capability: Capable of measuring distances up to 100 meters, making it suitable for a wide range of applications.

  • Compact and Lightweight Design: Designed for easy integration into various systems, the module is both compact and lightweight.

  • Fast Response Time: Provides quick measurement results, enhancing efficiency in time-sensitive tasks.

  • Wide Operating Temperature Range: Functions effectively in temperatures ranging from -10℃ to 50℃, ensuring reliability in diverse environments.

  • Low Power Consumption: Optimized for energy efficiency, making it ideal for battery-powered devices.

  • Versatile Applications: Suitable for use in industrial automation, robotics, surveying, and more.

  • Easy Integration: Comes with a user-friendly interface for seamless integration into existing systems.

  • Durable Construction: Built with high-quality materials to withstand challenging conditions and ensure long-lasting performance.

Applications


  • Distance Measurement: Accurately measure distances for surveying and mapping applications.

  • Industrial Automation: Integrate into automated systems for precise positioning and control.

  • Robotics: Enhance navigation and obstacle detection in robotic systems.

  • Construction: Use in construction sites for quick and accurate distance measurements.

  • Forestry: Measure tree heights and distances for forestry management.

  • Sports and Recreation: Utilize in activities like golf for measuring distances to targets.

  • Military and Defense: Implement in targeting and reconnaissance systems for enhanced accuracy.

  • Agriculture: Apply in precision farming for field mapping and equipment guidance.

  • Research and Development: Use in experimental setups requiring precise distance measurements.
