Description

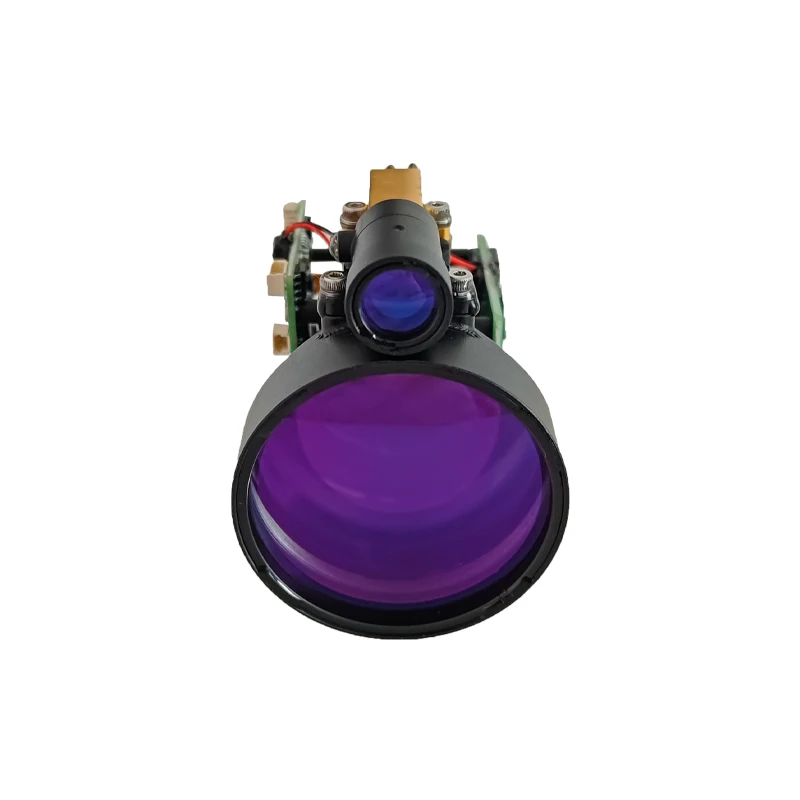

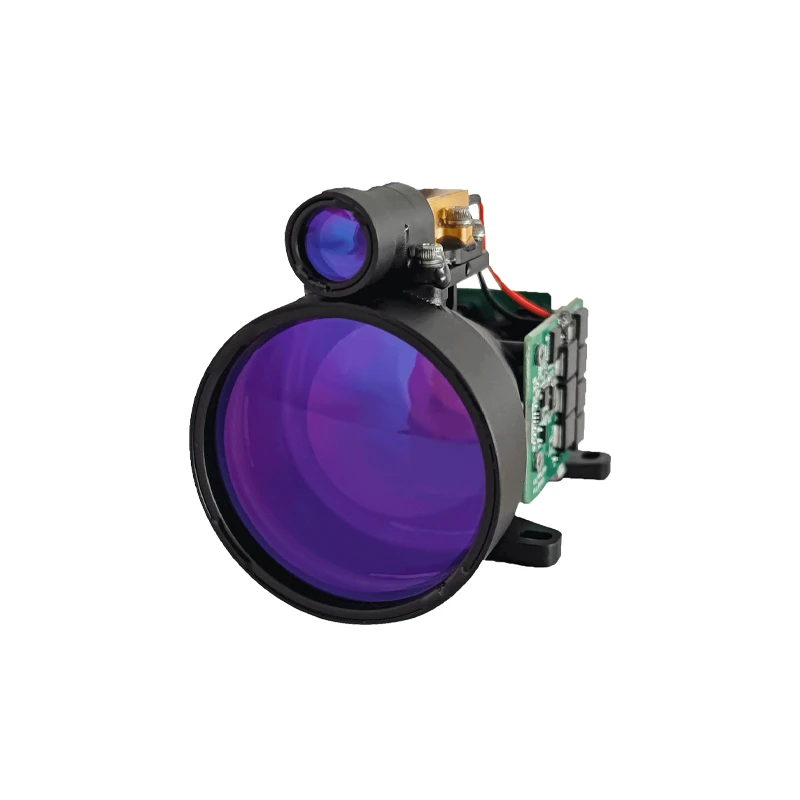

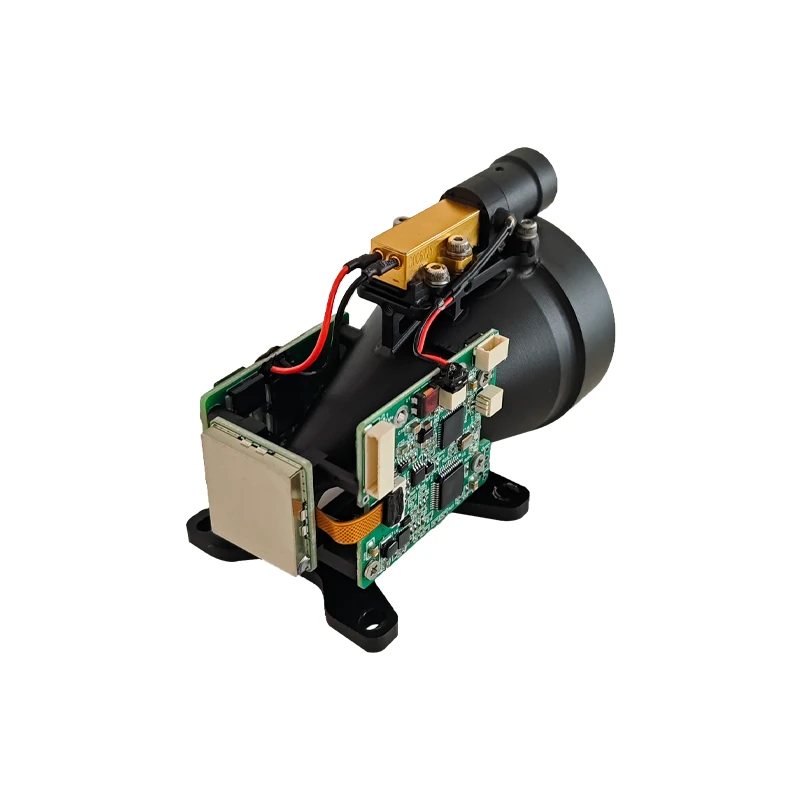

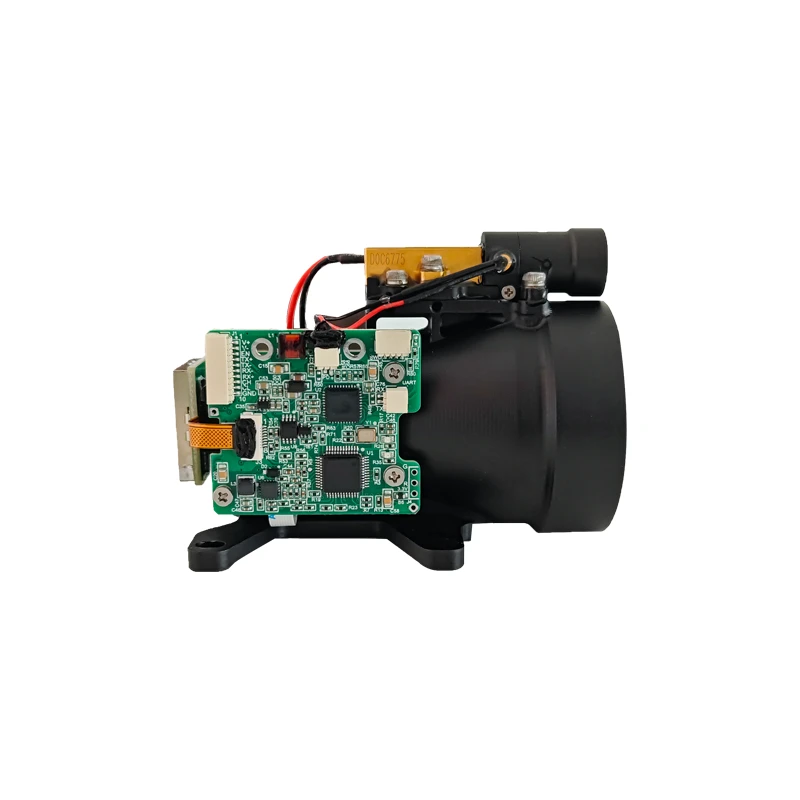

ELRF-J40 laser rangefinder module is developed based on our self-designed 1535nm erbium laser. It adopts a single-pulse TOF (Time-of-Flight) ranging method, with a maximum measurement range of ≥10km. The module consists of the laser, transmission optical system, receiving optical system, and control circuit board. It communicates with the host computer via RS422 serial port and provides test software and communication protocols for easy secondary development by users. The module features small size, light weight, stable performance, high impact resistance, and is Class 1 eye-safe. It can be applied in handheld, vehicle-mounted, and pod-based electro-optical equipment.

Lumispot Hot Sale 1535nm 10km Long Range Laser Rangefinder Module

Specifications

Measurement Range: 50000 – 12000000 mm
Resolution : 30000 mm
Wavelength: ≤0.3mrad
Continuous Ranging Frequency: 1~10Hz adjustable
Ranging Accuracy: ≤±1.5m
Accuracy: ≥98%
Minimum Measuring Range: ≤50m
Ranging Resolution: ≤30m
Power Supply Voltage: DC5V ~ 28V
Weight: <130g
Standby Power Consumption: ≤120mW
Average Power Consumption: ≤6W
Peak Power Consumption: ≤14W
Size: ≤83×61×48mm
Working Temperature: -40℃ ~ +60℃
Storage Temperature: -55℃ ~ +70℃
Communication Interface: RS422/TTL

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

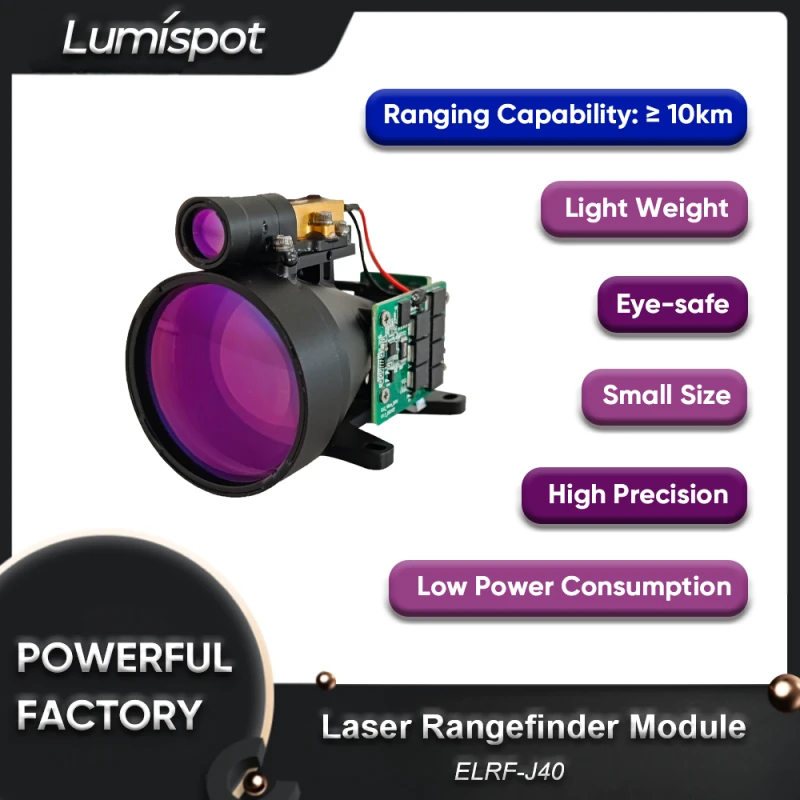

  • Model: ELRF-J40 Laser Range Finder Module
  • Version: 2025.09
  • High Precision: Offers accurate distance measurement with minimal error.
  • Compact Design: Lightweight and easy to integrate into various applications.
  • Wide Measurement Range: Suitable for both short and long-distance measurements.
  • Durable Construction: Built to withstand harsh environmental conditions.
  • Low Power Consumption: Efficient energy usage for extended operation.
  • Temperature Range: Operates effectively in a wide range of temperatures.
  • Versatile Applications: Ideal for use in industrial, commercial, and personal projects.

Applications

  • Precision Measurement: Ideal for applications requiring high accuracy in distance measurement.
  • Industrial Automation: Enhances automation processes by providing precise distance data.
  • Robotics: Integrates seamlessly with robotic systems for navigation and obstacle detection.
  • Surveying: Useful in land surveying and mapping for accurate distance calculations.
  • Construction: Assists in construction projects by providing reliable distance measurements.
  • Security Systems: Enhances security systems with accurate perimeter monitoring.
  • Research and Development: Supports R&D projects requiring precise distance data.
