Description
DLRF-C2.0 semiconductor laser rangefinder is an innovative product that integrates advanced technology and humanized design carefully developed. Using a unique 905nm laser diode as the core light source, this model not only ensures human eye safety, but also sets a new benchmark in the field of laser ranging with its efficient energy conversion and stable output characteristics. Equipped with high-performance chips and advanced algorithms independently, the DLRF-C2.0 achieves excellent performance with long life and low power consumption, perfectly meeting the market demand for high-precision and portable ranging equipment.

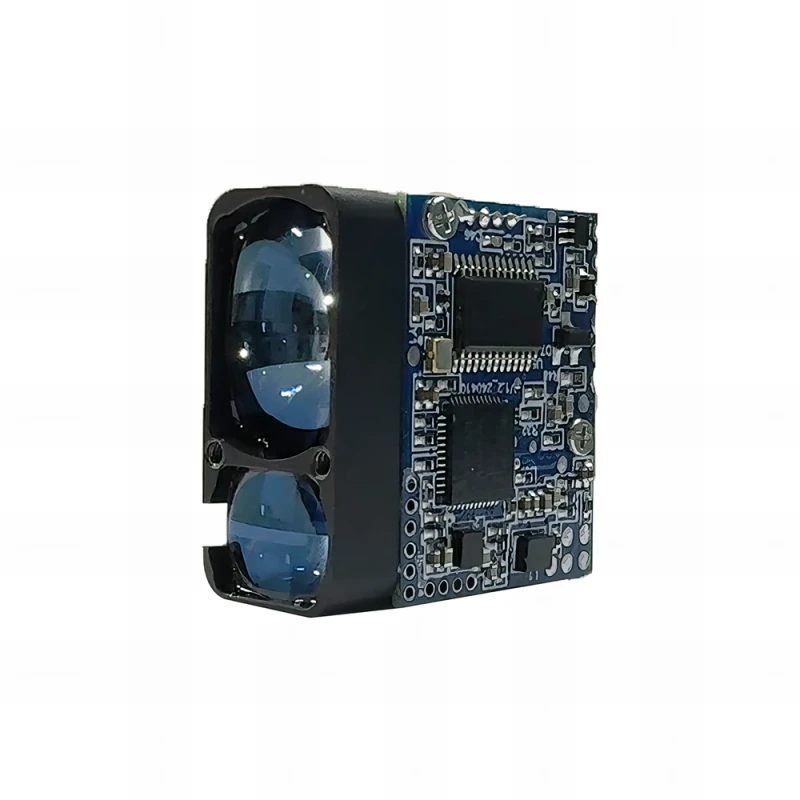

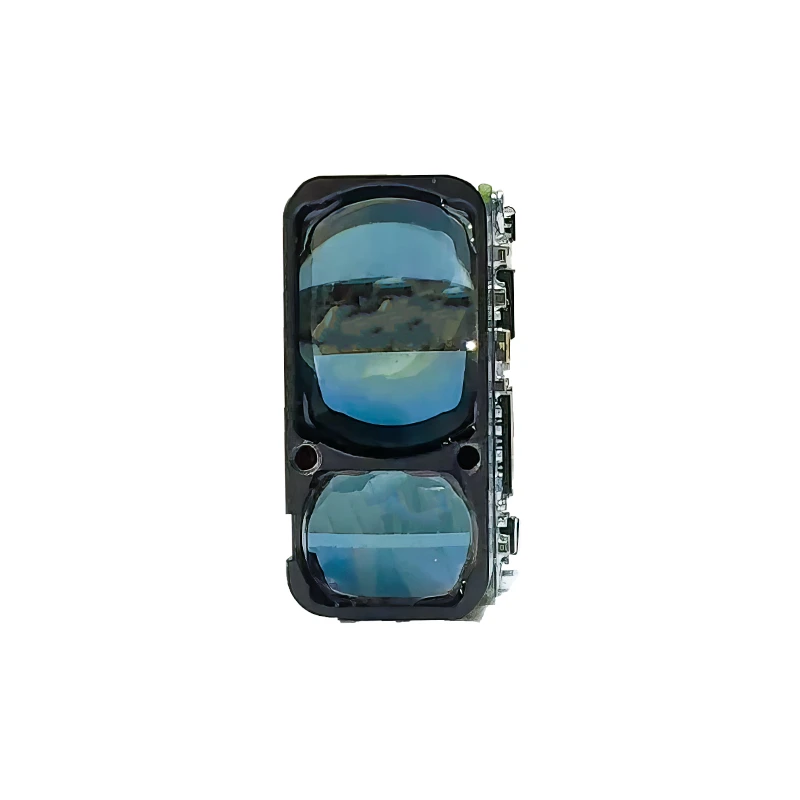

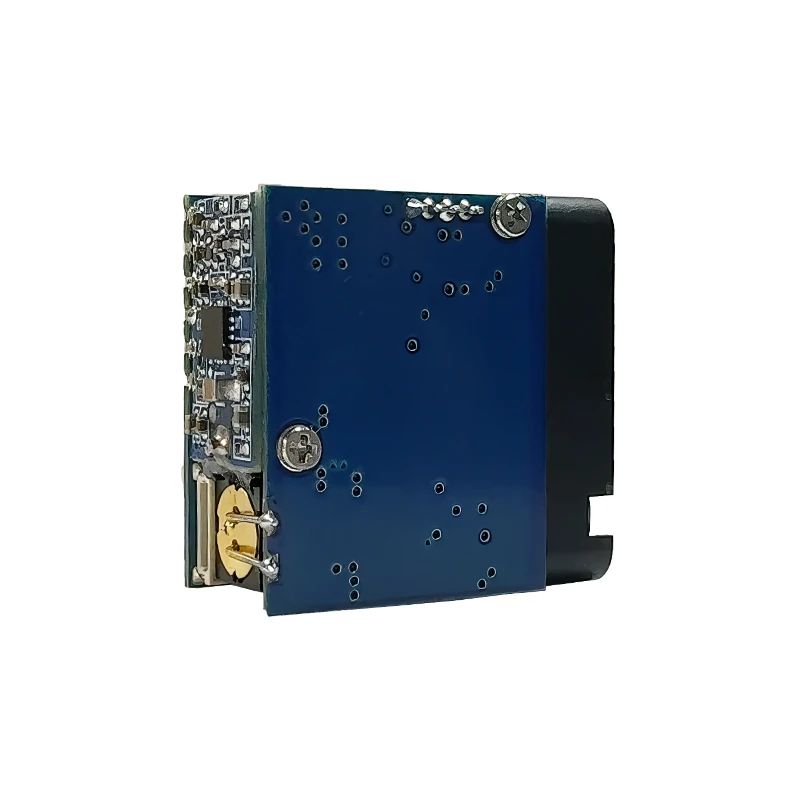

Lumispot 905nm 2000m OEM Lightweight 905nm Laser Rangefinder Module
Specifications
| Measurement Range: | 3000 – 2000000 mm |
|---|---|
| Laser Eye Safety Class: | Class Ⅰ |
| Wavelength: | 905nm±5nm |
| Beam Divergency: | ～6mrad |
| Ranging Capacity: | 3~2000m (Building) |
| Ranging Accuracy: | ±1m (<1000m); ±(0.2+0.0015*D)(>1000m) |
| Ranging Frequency: | 1~10Hz (Self-Adaptive) |
| Accurate Ratio: | ≥98% |
| False Alarm Rate: | ≤1% |
| Power Supply: | DC 3V~5.0V |
| Communication Type: | UART (TTL_3.3V) |
| Operating Power Consumption: | ≤1.6W |
| Standby Power Consumption: | ≤0.8W |
| Sleep Power Consumption: | ≤1mW |
| Dimension: | 25×26×13mm |
| Weight: | 11g+0.5g |
| Operating Temperature: | -20 °C~+65 °C (customizable -40°C) |
| Storage Temperature: | -45°C~+70°C |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High precision ranging data compensation algorithm: optimization algorithm, fine calibration
- Optimized ranging method: accurate measurement, improve rangingaccuracy
- Low power consumption design: Efficient energy saving and optimized performance
- Working capacity under extreme conditions: excellent heat dissipation, guaranteed performance
- Miniaturized design, no burden to carry
Applications
Used in UAV, sighting, outdoor handheld products and other ranging applications (aviation, police, railway, electricity, water conservancy, communication, environment, geology, construction, fire station, blasting, agriculture, forestry, outdoor sports, etc.)
