Description

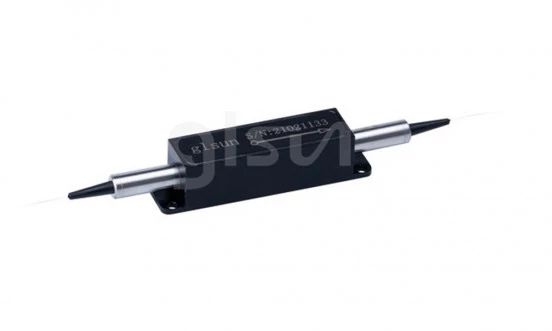

GLSUN 1064nm-2w optical isolator is based on Faraday rotation effect to break the reciprocity of light transmission, so as to achieve the purpose of forward light passing and reverse light isolation. The specific Faraday optical rotation materials utilize for achieving high isolation and improving the efficiency of light transmission

1310nm/1550nm-300MW~10W optical isolator is based on Faraday rotation effect to break the reciprocity of light transmission, so as to achieve the purpose of forward light passing and reverse light isolation. The specific Faraday optical rotation materials utilize for achieving high isolation and improving the stability of optical system.

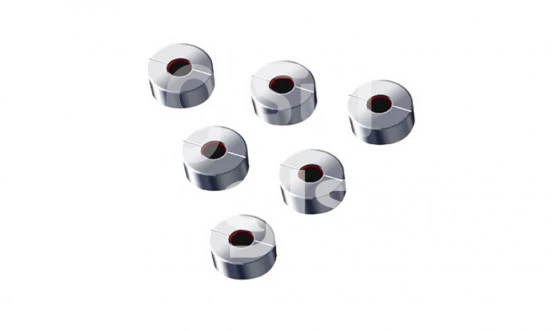

Free Space Isolator for Optical transmitter and Laser diode package.

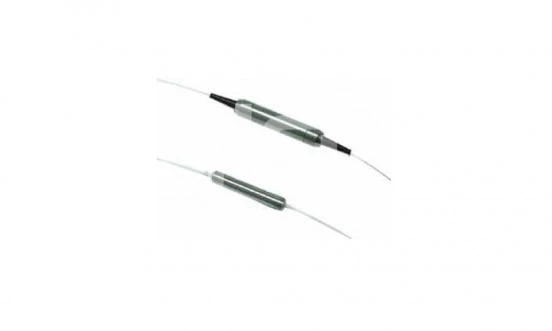

In-line Optical Isolator for Fiber-optic components, DWDM/CWDM and EDFA



GLSUN High Power Optical Isolators, Free Space Isolators, In-line Optical Isolator

Visit the Guilin GLsun Science and Tech Group Co.,LTD. Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 2 W
Min Isolation: 28 dB
Center Wavelength (λc): 1064 nm
Typ. Peak Isolation: 35 dB
Min. Isolation At 23℃, λc All: 28 dB
Typ. Insertion Loss, 23℃: 1.7 dB
Max. Insertion, 23℃ And Input Power 1W: 2.5 dB
Max. Insertion, 23℃ And Input Power 2W: 3.0 dB
Min. Return Loss (I/O): 50/50 dB
Max. Optical Power: 2 W
Max. Peak Power For Ns Pulse: 10 KW
Max. Tensile Load: 5 N
Fiber Type: HI1060 Fiber
Operating Temperature Range: 10 to +50 °C
Storage Temperature Range: 0 to +60 °C
Package Dimension (L×W×H): 65×12×12 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss and High Isolation
  • High Extinction Ratio
  • Return Loss and High Reliability
  • Excellent Environmental Stability and Reliability
  • RoHS 6/6 Compliant

Applications

  • Amplifiers
  • Fiber lasers
  • Test instrument applications

Frequently Asked Questions

What is the center wavelength of the 1064nm 2W Isolator?
The center wavelength of the 1064nm 2W Isolator is 1064 nm.
What are the main features of the 1064nm 2W Isolator?
The main features include low insertion loss and high isolation, high extinction ratio, return loss and high reliability, excellent environmental stability and reliability, and RoHS 6/6 compliance.
What applications is the 1064nm 2W Isolator suitable for?
The 1064nm 2W Isolator is suitable for amplifiers, fiber lasers, and test instrument applications.
What is the maximum optical power handling of the 1064nm 2W Isolator?
The maximum optical power handling of the 1064nm 2W Isolator is 2 W.
What is the operating temperature range for the 1064nm 2W Isolator?
The operating temperature range for the 1064nm 2W Isolator is 10 to +50 °C.
Can the 1064nm 2W Isolator be customized?
Yes, customization is available for the 1064nm 2W Isolator.
What is the maximum peak power for nanosecond pulses that the 1064nm 2W Isolator can handle?
The maximum peak power for nanosecond pulses that the 1064nm 2W Isolator can handle is 10 kW.

Got more questions? Use the inquiry form to ask the supplier directly.
