Ascentta 532–850 nm PM Fiber Circulator

Name: Ascentta Polarization Maintaining (PM) Fiber Circulator (532nm, 635nm, 780nm, 850nm)
Brand: Ascentta
SKU: FL-21768
Price: 1665.00 USD
Availability: InStock

Description

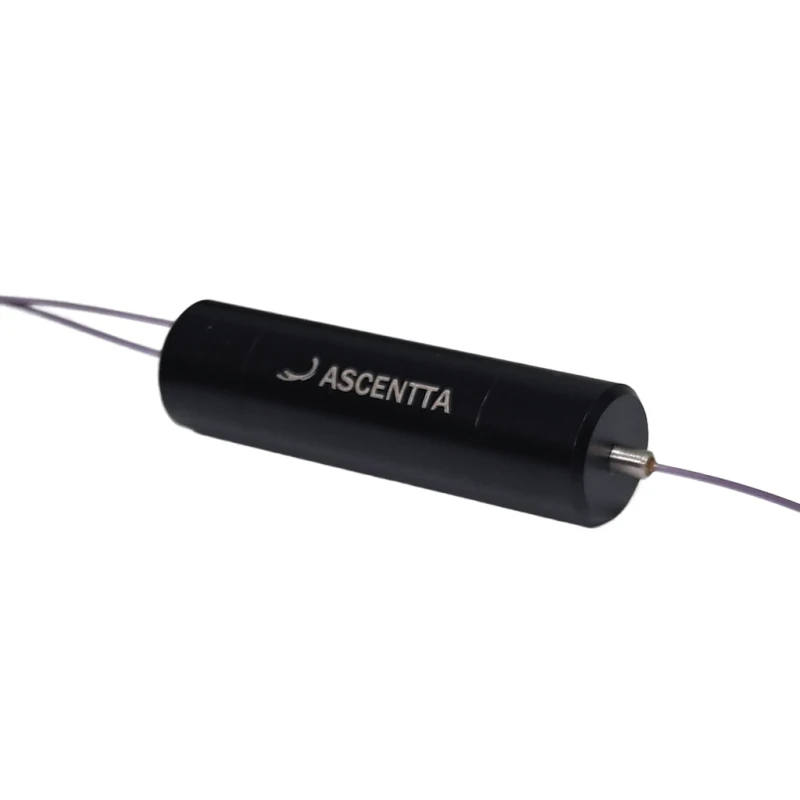

Ascentta, Inc. offers a widely used three-port fiber optic circulator that is compact and provides high performance. This optical device simultaneously transmits signals from port 1 to port 2 and from port 2 to port 3.

It is specifically designed for use in optic sensing systems with fiber gratings and other reflective components. Ascentta also manufactures multiport circulator modules with a maximum of N<=8 ports.

The PM optical circulator comes in 532nm, 635nm, 780nm, 850nm and other custom wavelength. Ascentta also offers polarization independent single model optical circulator.

Specifications

Type Of The Device:	Circulator
Operating Wavelength:	635 nm
Max Power:	0.1 W
Min Isolation:	20 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3) Max.:	2.0 dB
Extinction Ratio Min.:	18 dB
Return Loss:	45 dB
Directivity (1→3, Or 3→1) Min.:	40 dB
Fiber Length:	1.5 m
Operating Temperature:	+10 to +50 °C
Storage Temperature:	0 to +60 ℃
Manufacturer Part Number (MPN):	PMVCIR-3-635-PM-L-10-FA
FindLight SKU:	FL-21768

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Compact and high-performance fiber optic circulator
Three-port design for simultaneous signal transmission
Suitable for use in optic sensing systems with fiber gratings and reflective components
Research and development

Applications

Fiber optic communication systems
Fiber optic sensing and instrumentation
Optical signal routing and switching
Research and development in fiber optics

Export & Trade Information

ECCN:	EAR99
HTS Code:	9027.90.8400
Estimated US Tariff:	0%

Importing, tariffs & codes (Quick Guide) →

$1,665.00

Volume Pricing:

Qty	Unit Price	Extended Price
5	$1,660.00	$8,300.00
10	$1,650.00	$16,500.00

Discounts apply automatically in cart.

Shipping:: Arrange Pickup ⓘ
Ships from:: United States
Processing:: 40 days
Delivers to:: United States

Made by:: Ascentta
Made in:: China
Warranty:: View full terms
Returns:: View return policy
Sold by:: Ascentta
On FindLight:: since 2020

Got Questions? Ask Below ▼

Message the supplier directly
No signup or account needed
Expect a fast reply

Ask a Question

To: Ascentta
Re: Ascentta Polarization Maintaining (PM) Fiber Circulator (532nm, 635nm, 780nm, 850nm)

Name

Work Email

Organization

Country

Qty.

Your message to supplier

Thank you, your message was sent successfully.

Frequently Asked Questions

What should one specify when contacting Ascentta for a custom configuration?

When contacting Ascentta for a custom configuration, one should specify details like port, wavelength, fiber type, cable type, fiber length, connector, maximum power, and package.

What does 'PMVCIR3=3-Port' mean in the ordering information?

'PMVCIR3=3-Port' refers to the number of ports the circulator has. In this case, it is a 3-port device.

What does 'PM=Polarization-Maintaining' imply in the ordering information?

'PM=Polarization-Maintaining' refers to the type of fiber used in the circulator. A polarization-maintaining fiber preserves the polarization of the light as it travels through the fiber.

Can other configurations be specified when ordering?

Yes, other configurations can be specified when ordering. 'X=Others' is provided as an option in the ordering information for different categories.

How to specify cable type, fiber length, connector, maximum power, and package when ordering?

Each of these options has corresponding codes provided in the ordering information. For example, for fiber length '10=1.0m', '15=1.5m', '20=2.0m', '30=3.0m' and 'X=Others' for any other length. Similar codes exist for cable type, connector, maximum power, and package.
