Description
Ascentta, Inc. offers a compact and high-performance three-port fiber optic circulator designed specifically for polarization-maintaining (PM) applications. This optical device efficiently transmits signals from port 1 to port 2 and from port 2 to port 3 simultaneously.
It is ideal for use in optic sensing systems with fiber gratings and other reflective components. Ascentta also provides multiport circulator modules with a maximum of N<=8 ports.
Ascentta's 405nm PM circulator can be tuned to required wavelength as well. For other wavelength such as 532nm, 650nm, 785nm, or 850nm, please make inquiries.

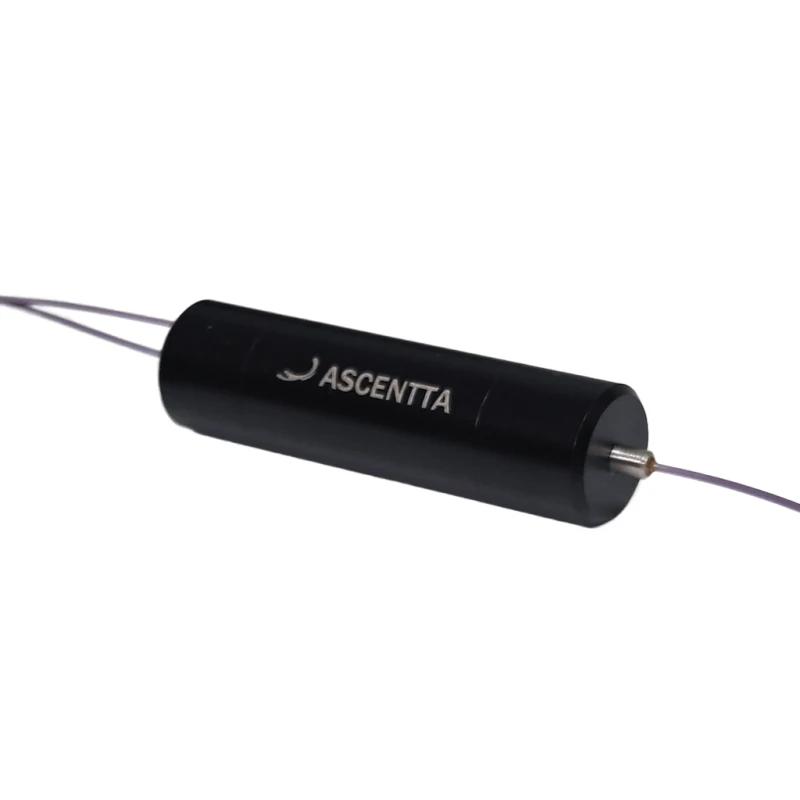

Ascentta Polarization Maintaining (PM) Fiber Circulator (405nm)
Specifications
Type Of The Device: | Circulator |
---|---|
Operating Wavelength: | 405 nm |
Max Power: | 0.03 W |
Min Isolation: | 20 dB |
Insertion Loss (Fast Axis Block) (1→2, Or 2→3): | 2.0 dB |
Extinction Ratio Min.: | 16 dB |
Return Loss Min.: | 45 dB |
Directivity (1→3, Or 3→1) Min.: | 45 dB |
Fiber Type: | PMS405XP |
Fiber Length: | 1.0 m |
Operating Temperature: | +10 to +50 ℃ |
Storage Temperature: | 0 to +60 ℃ |
Features
- Compact and high-performance fiber optic circulator
- Designed for polarization-maintaining (PM) applications
- Simultaneous signal transmission from one port to another
- Suitable for use in optic systems with fiber gratings and reflective components
Applications
- Polarization-maintaining fiber optic communication systems
- PM fibers
- Fiber optic sensing and instrumentation
- Optical signal routing and switching in PM applications
- Research and development in PM fiber optics
Frequently Asked Questions
What type of circulator is this?
This is a 3-Port Optical (TGG Type) Circulator, specifically a Polarization-Maintaining (PM) type. It is designed for 405 nm wavelength.
What is the typical and minimum isolation at 23°C?
The typical isolation is 23 dB and the minimum is 20 dB.
What is the typical and maximum insertion loss (Fast Axis Block)?
The typical insertion loss is 2.0 dB and the maximum is 2.5 dB.
What is the minimum extinction ratio, return loss, and directivity?
The minimum extinction ratio is 16 dB, the return loss is 45 dB, and the directivity is also 45 dB.
What is the maximum optical power handling?
The maximum optical power handling is 30 mW.
What type of fiber is used?
The fiber type used is PMS405XP.
What is the dimension of the package?

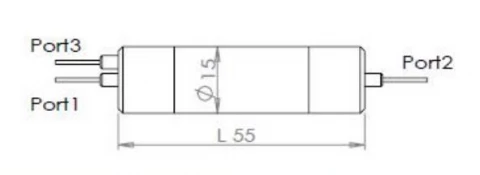

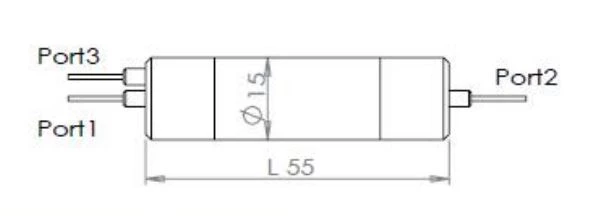

The package dimension is Φ15 x L55 in mm.
What are the operating and storage temperatures?
The operating temperature is from 10 to 50°C and the storage temperature is from 0 to 60°C.
What are the guidelines for ordering a custom configuration?
Contact Ascentta with your custom configuration needs, specifying the port, wavelength, fiber type, cable type, fiber length, connector, maximum power, and package. For example, 'PMVCIR3=3-Port', '405=405nm', 'PMS405XP' for fiber type, etc. The given codes such as 'B=250um', 'L=900um' etc., should be used to specify cable type and other options.
