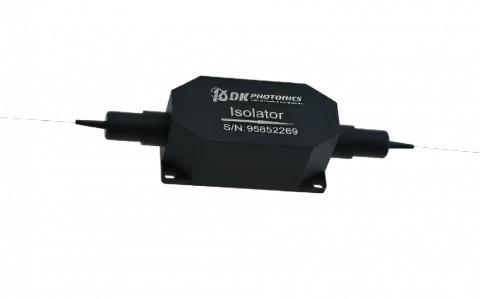

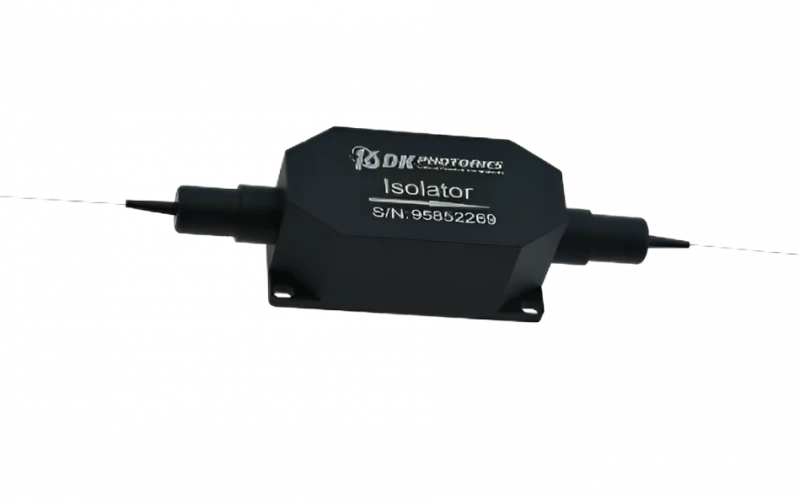

Thumbnail of 1064nm High Power Polarization Independent Isolator – 10W photo 1

Description

The 1064nm High Power Polarization-Independent Isolator is designed for superior performance in high-power fiber laser systems and optical setups that demand robust protection from back reflections. Capable of handling up to 10W of optical power, this isolator provides reliable isolation of forward and backward propagating light, safeguarding sensitive laser components and enhancing system stability.

Its polarization-independent design ensures consistent isolation regardless of input polarization, making it an ideal solution for applications where polarization control is not feasible. This feature, combined with low insertion loss and high isolation, allows the isolator to deliver excellent signal integrity and reduce feedback in demanding optical environments.

Built with high-grade optical materials and precision engineering, this isolator offers outstanding thermal and mechanical stability, ensuring long-term reliability in both research and industrial settings.

1064nm High Power Polarization Independent Isolator – 10W

Visit the DK Photonics Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 10 W
Min Isolation: 30 dB
Operating Wavelength Range: ±10 nm
Typ. Peak Isolation: 35 dB
Min. Isolation In Band (at 25℃): 28 dB
Typ. Insertion Loss: 0.6 dB
Max. Insertion Loss (at 25℃): 1.0 dB
Max. PDL (for SM Fiber): 0.15 dB
Min. Extinction Ratio (for PM Fiber): 18 (Type B), 20 (Type F) dB
Min. Return Loss: 45 dB
Max. Power Handling (CW): 10, 20, 30, 50 W
Max. Peak Power For Ns Pulse (kW): 5, 10, 20 (for typical pulse application)
Max. Tensile Load: 5 N
Operating Temperature: 0 ~ + 70 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss: Ensures minimal signal loss for optimal system performance.
  • High Power Handling: Supports continuous wave (CW) and pulsed operations with customizable power ratings up to 50W.
  • High Isolation: Effectively blocks back-reflected light to protect sensitive laser sources and maintain signal integrity.
  • Polarization Options: Available in both Polarization Maintaining (PM) and Non-PM configurations to suit various application needs.
  • Customizable Fiber Types: Compatible with a wide range of fiber types and connector options; fiber pigtails can be tailored to your requirements.
  • Excellent Temperature Stability: Delivers reliable performance across a broad temperature range, ideal for demanding environments.
  • High Reliability & Environmental Stability: Engineered for long-term operation and consistent performance in industrial and laboratory settings.
  • Multiple Package Types: Includes in-line, beam expanded, fiber-in/free-space-out, and free-space isolator options for flexible system integration.
  • Wavelength Specific: Optimized for 1064nm applications, ensuring peak performance for YAG and other 1064nm laser systems.
  • Custom Solutions Available: DK Photonics offers tailored solutions for special wavelengths, power levels, and unique system requirements.

Typical Applications:

  • High Power Fiber Lasers
  • High Power Fiber Amplifiers
  • Instrumentation
  • Test and Measurement Systems
  • Fiber Amplifier Laboratory Research

Why Choose DK Photonics 1064nm High Power In-line Optical Isolator?

  • Proven performance in high-power laser and amplifier systems
  • Industry-leading isolation and insertion loss specifications
  • Comprehensive customization options for fiber type, connector, and package
  • Backed by DK Photonics’ commitment to quality and customer support

Applications

  • High Power Fiber Laser Systems
    Essential for protecting laser sources from back reflections, ensuring stable operation and preventing damage in industrial, medical, and scientific fiber laser applications.
  • High Power Fiber Amplifiers
    Used to isolate and protect high power fiber amplifiers from destabilizing feedback, improving performance and reliability in signal amplification.
  • Optical Instrumentation
    Integrated into precision optical instruments to maintain unidirectional light flow, enhancing measurement accuracy and instrument longevity.
  • Test and Measurement Systems
    Applied in optical test setups to prevent unwanted feedback, ensuring accurate and repeatable measurements in laboratory and industrial environments.
  • Fiber Amplifier Laboratory Research
    Ideal for research and development settings where high power handling and isolation are critical for experimental setups involving fiber amplifiers and lasers.
  • Optical Communication Networks
    Used in high-speed, long-haul fiber optic communication systems to prevent signal degradation caused by back reflections and feedback.
  • Nonlinear Optics Experiments
    Protects sensitive nonlinear optical setups from destabilizing reflections, ensuring consistent experimental results.
  • Quantum Optics and Quantum Communication
    Maintains the integrity of quantum signals by preventing back reflections that can introduce noise or loss in quantum communication links.
  • Medical Laser Systems
    Ensures safe and reliable operation of high power medical laser equipment by blocking harmful back reflections.
  • Industrial Material Processing
    Used in laser cutting, welding, and marking systems to protect high power laser sources from reflected light during material processing tasks.
  • Free Space Optical Systems
    Suitable for isolating free space laser sources in laboratory and industrial setups, preventing feedback and enhancing system stability.
  • Custom High Power Photonics Applications
    Can be tailored for unique requirements in custom photonics systems where high power handling and reliable isolation are essential.

Frequently Asked Questions

What is a 1064nm High Power In-line Optical Isolator?
A 1064nm High Power In-line Optical Isolator is an optical device designed to allow light to pass in only one direction while blocking any reflected light from returning to the source. This prevents feedback that can damage sensitive laser components or disrupt system performance, making it essential for high power fiber lasers, amplifiers, and related applications.
What are the key features of the DK Photonics 1064nm High Power In-line Optical Isolator?
The DK Photonics 1064nm High Power In-line Optical Isolator offers low insertion loss, high power handling (customizable up to 50W), high isolation, high reliability, excellent temperature stability, and options for both polarization-maintaining (PM) and non-PM fibers. Custom fiber types and configurations are also available.
What applications are suitable for this high power optical isolator?
This isolator is ideal for high power fiber lasers, high power fiber amplifiers, instrumentation, test and measurement setups, and fiber amplifier laboratory research. Its ability to handle high power and prevent back-reflection makes it suitable for demanding photonics and laser systems.
Can the DK Photonics 1064nm isolator be customized for specific requirements?
Yes, DK Photonics offers customization for fiber type, power handling (5W, 10W, 20W, 30W, 50W), wavelength, and package configuration. Customers can request custom fiber pigtails, different wavelengths, or other specific needs to match their application requirements.
What is the difference between PM and non-PM types of this isolator?
PM (Polarization Maintaining) isolators preserve the polarization state of the transmitted light, which is crucial for applications requiring stable polarization, such as in coherent communication or certain laser systems. Non-PM isolators do not maintain polarization and are suitable for general applications where polarization is not critical.
How does connectorization affect the performance of the isolator?
Adding connectors increases insertion loss by 0.3 dB, decreases return loss by 5 dB, and reduces extinction ratio by 2 dB for PM types. Additionally, the maximum pass optical power is limited to 2W with connectors, so for higher power applications, fiber splicing is recommended.
How do I order or request a quote for a custom 1064nm high power optical isolator?
To order or request a quote, provide the correct part number (P/N) and specify your requirements such as fiber type, power handling, wavelength, and any special configuration. You can contact DK Photonics via their website, email (sales@dkphotonics.com), or phone for further assistance.

Got more questions? Use the inquiry form to ask the supplier directly.
