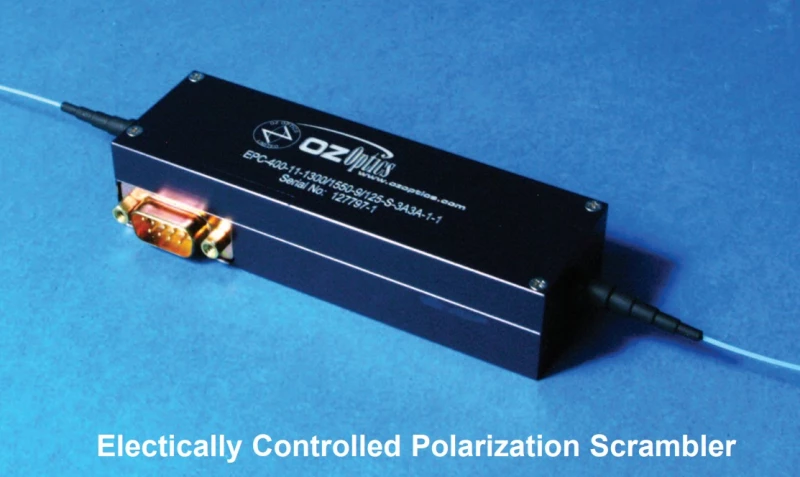

Electrically Driven Polarization Controller-Scrambler EPC-300/400

Name: Electrically Driven Polarization Controller-Scrambler EPC-300/400
Brand: OZ Optics
Availability: InStock

Description

The Electrically Driven Polarization Controller-Scrambler (DTS0011) by OZ Optics provides a simple and efficient means to manipulate the state of polarization within a single-mode fiber.

With a rapid response speed and continuous polarization control capability, this device is ideal for polarization scrambling, stabilization, and mitigation of polarization-dependent loss (PDL) and polarization mode dispersion (PMD).

The device offers negligible insertion losses, return losses, and PDL, making it suitable for precise test and measurement applications.

Specifications

Operating Wavelength Range:	1260 – 1650 nm
Insertion Loss:	0.05 dB
Polarization Mode Dispersion:	Not Specified
Resolution:	Not Specified
Number Of Control Channels:	3 (EPC-300) and 4 (EPC-400)
Voltage Range:	±5 V
3dB Bandwidth:	100 Hz
Electrical Interface:	DB-9
Retardation Range:	2 p Minimum
Backreflection:	>70 dB
Activation Loss:	± 0.03 dB
Fiber Type:	Corning SMF-28 Standard — Other fiber types available on request
Operating Temperature:	-10 to +50 °C
Storage Temperature:	-40 to +80 °C
Dimensions:	150x44x35 mm
Weight:	400 g

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Negligible insertion losses
Negligible return losses
Negligible Polarization Dependent Losses (PDL)
100Hz response speed
Continuous polarization control capability
Low voltage

Applications

Polarization scrambling
Polarization stabilization
Polarization Mode Dispersion (PMD) mitigation
Polarization Dependent Loss (PDL) mitigation
PDL and PMD Measurement Systems
Interferometers and Sensors
OCT systems

Name

Work Email

Organization (recommended)

Your message to supplier

Ships from:

Canada

Sold by:

OZ Optics ✓ Verified Supplier

On FindLight:

since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the Electrically Driven Polarization Controller-Scrambler used for?

The Electrically Driven Polarization Controller-Scrambler is used to manipulate the state of polarization within a single-mode fiber. It is ideal for polarization scrambling, stabilization, and mitigation of polarization-dependent loss (PDL) and polarization mode dispersion (PMD).

What are the key features of the Electrically Driven Polarization Controller-Scrambler?

The key features of the Electrically Driven Polarization Controller-Scrambler include negligible insertion losses, negligible return losses, negligible polarization dependent losses (PDL), a response speed of over 100Hz, and continuous polarization control capability.

What are the applications of the Electrically Driven Polarization Controller-Scrambler?

The Electrically Driven Polarization Controller-Scrambler can be used for polarization scrambling, polarization stabilization, polarization mode dispersion (PMD) mitigation, polarization dependent loss (PDL) mitigation, and in PDL and PMD measurement systems. It is also suitable for use in interferometers, sensors, and OCT systems.

What is the voltage range and power consumption of the Electrically Driven Polarization Controller-Scrambler?

The voltage range of the Electrically Driven Polarization Controller-Scrambler is ±5 Volts, and the power consumption is 0.5 Watts per channel.

Does the Electrically Driven Polarization Controller-Scrambler require any dedicated driver circuitry?

No, the Electrically Driven Polarization Controller-Scrambler does not require any dedicated driver circuitry. It operates safely and simply without the need for internal voltage multipliers or high voltage signals.
