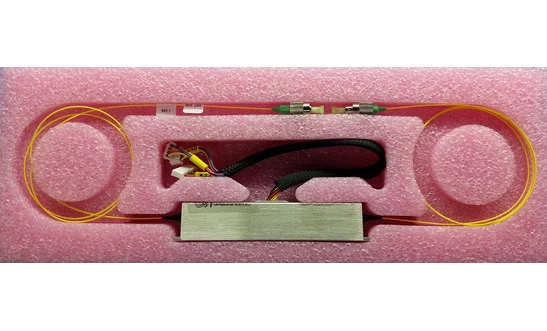

All Fiber High Resolution Polarization Control Module and Instrument with USB
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Introducing our high-resolution, all-fiber polarization controller and scrambler, designed to meet the demanding needs of modern optical systems. With a remarkable resolution of 0.1125° achieved through stepper motor operation, this product ensures precise control over polarization states, making it an ideal choice for a variety of advanced applications. Its low loss characteristic, with an insertion loss of less than 0.2dB, guarantees minimal signal degradation, maintaining the integrity of your optical signals.
The device operates over a wide wavelength range, from 400 nm to 1550 nm and beyond, ensuring compatibility with a diverse array of optical fibers, including single-mode fibers. This flexibility is enhanced by the ability to daisy chain multiple modules on a single fiber, allowing for scalable solutions tailored to specific system requirements. The polarization mode dispersion (PMD) is impressively low at less than 3fs, and the polarization-dependent loss (PDL) is configurable to extremely low levels, depending on your setup.
Our product offers adjustable element retardance and supports any number of retardance elements per fiber. This feature, combined with its fully customizable nature, enables users to configure the device precisely to their needs. Available as an OEM module, an open-source reference design, or a compact instrument with a USB interface, this polarization controller and scrambler is versatile and adaptable to various integration scenarios.
Crafted with innovation and precision, this product is protected under US Patent 8,373,852, ensuring that you are investing in cutting-edge technology. Whether you require an OEM module for integration into larger systems or a standalone compact instrument, our solution is engineered to deliver exceptional performance and reliability in any setting.
All Fiber High Resolution Polarization Control Module and Instrument with USB
Specifications |
|
|---|---|
| Operating Wavelength Range: | 400 – 1550 nm |
| Insertion Loss: | 0.2 dB |
| Polarization Mode Dispersion: | 3 fs |
| Resolution: | 0.1125 Degrees |
| Resolution: | 0.1125° |
| Operating Wavelength Range: | 400 nm to 1550 nm |
| Insertion Loss: | <0.2 dB |
| PMD: | <3 fs |
| PDL: | <0.02 dB to extremely low |
Features
- SOP Dithering for process calibration
- Low cost open source electronics
- 900 um loose tube standard
- Bend limiting 5 mm plastic tube
- Armored
- Instrument aluminum enclosure
- International power supplies
Applications
- Lefevre loops and other manual polarizations controller replacement
- Fiber laser SOP automation
- Research and industrial OCT
- Medical OCT FDA approved
- Polarization scrambling
- Polarization modulation
Frequently Asked Questions
The instrument can be used for Lefevre loops and other manual polarizations controller replacement, fiber laser SOP automation, research and industrial OCT, medical OCT FDA approved, polarization scrambling, and polarization modulation.
Yes, the instrument is fully customizable and available as an OEM module, open source reference design, or compact instrument with USB interface.
The instrument has a wide operating wavelength range of 400 nm to 1550 nm and beyond.
The insertion loss of the instrument is less than 0.2dB.
The resolution of the instrument is 0.1125°.
