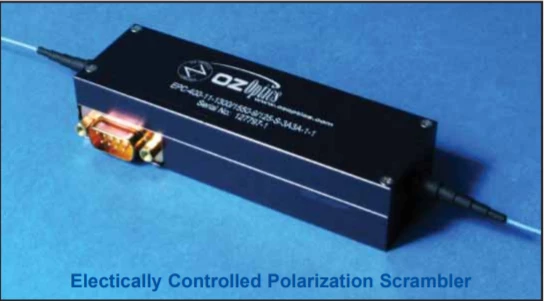

Electrically Driven Polarization Controller-Scrambler
Description
OZ Optics' Electrically Driven Polarization Controller (EPC) provides a simple, efficient means to manipulate the state of polarization within a single-mode fiber. Employing a novel mechanical fiber squeezing technique, the device is controlled by either three or four (depending on the model) input voltages that one varies over a ±5 volt range to provide endless polarization control in a robust, easy to operate package.
The controller's rapid response speed easily handles changes in polarization caused by the external environment, and is highly suitable for polarization scrambling for either averaging PDL effects, or for making PMD or PDL measurements. Because the fiber within the device is continuous, all insertion losses, return losses, and PDL effects are limited only by the fiber itself. This makes it ideal for precise test and measurement applications.
Electrically Driven Polarization Controller-Scrambler
Specifications |
|
|---|---|
| Operating Wavelength Range: | 1250-1650nm |
| Insertion Loss: | 0.4 dB |
| Polarization Mode Dispersion: | -- fs |
| Resolution: | -- Degrees |
Features
- Negligible insertion losses
- Negligible return losses
- Negligible Polarization Dependent Losses (PDL)
- >100Hz response speed
- Continuous polarization control capability
- Low voltage
Applications
- Polarization scrambling
- Polarization stabilization
- Polarization Mode Dispersion (PMD) mitigation
- Polarization Dependent Loss (PDL) mitigation
- PDL and PMD Measurement Systems
- Interferometers and Sensors
- OCT systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The Electrically Driven Polarization Controller (EPC) is a device that provides a simple and efficient means to manipulate the state of polarization within a single-mode fiber.
The EPC has negligible insertion losses, negligible return losses, negligible Polarization Dependent Losses (PDL), >100Hz response speed, continuous polarization control capability, and low voltage.
The EPC can be used for polarization scrambling, polarization stabilization, Polarization Mode Dispersion (PMD) mitigation, Polarization Dependent Loss (PDL) mitigation, PDL and PMD Measurement Systems, Interferometers and Sensors, and OCT systems.
The three channel system is ideal for polarization scrambling applications such as for polarization averaging or PDL measurements. The added redundancy of the four channel version opens the way to continuous polarization control, without having to occasionally reset the device when a controller reaches its limit.
No, the unique design of the OZ Optics Polarization Controller means that it does not require any dedicated driver circuitry. There are no internal voltage multipliers or high voltage signals to worry about. Thus operation is safe and simple.
