Description
The SH51-02C Corvette is an optical communication subsystem that transmits up to 24 Gbps of data (4 x 6 Gbps) PLUS includes a 1.25 Gbps bidirectional side-band channel for control and communication, all on one multimode fiber. The embedded engine module has a simple plug-down design and accepts a standard SC optical connector. With integrated drivers and amplifiers, the SH51-02C eliminates the need for in-house optical design expertise for all your DVI, HDMI, machine vision, and other high-speed solutions.

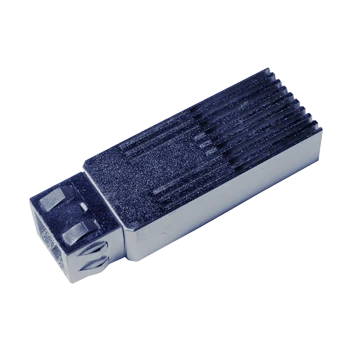

SH51-02C Corvette Optical Subsystem
Specifications
Signaling Rate Per Lane (Transmitter): | 24 Gb/s |
---|---|
Signaling Rate Per Lane (Receiver): | 24 Gb/s |
Storage Temperature Range: | -40 to 85 °C |
Supply Voltage (Absolute Maximum): | -0.3 to 3.6 V |
Relative Humidity: | 80 % |
ESD Protection (HBM): | 2 kV |
Supply Voltage (Operating): | 3.15 to 3.45 V |
Supply Current: | 350 mA |
Operating Temperature Range: | 0 to 65 °C |
High Speed Data Rate, Lanes 0 – 3: | 6.0 Gbps |
Low Speed Data Rate, Lanes 4 & 5: | 1.25 Gbps |
Input Voltage Swing, Differential P-p Lanes 0 – 3: | 350 to 1380 mV |
Input Voltage Swing, Differential P-p Lane 4: | 320 to 2000 mV |
Output Voltage, Lane 5: | 400 to 900 mV |
Rise/ Fall Time (20%-80%), Lane 5: | 100 ps |
LVTTL Input Low Voltage: | -0.3 to 0.8 V |
Features
- Compatible with Display port 1.2 and HDMI 2.0 signals
- Four TX lanes at 6 Gbps each for 24 Gbps data links
- Bidirectional side-band channel supports up to 1.25 Gbps full-duplex communication
- All data multiplexed onto a single multimode fiber
- Accepts standard SC-terminated 50-micron fiber
- Allows FCC Class B compliance at customer end product level
Applications
- HDMI, Display Port Matrix switches
- Optical Extenders
- Machine Vision Camera Bus
Frequently Asked Questions
What is the TX6E-SH51-02C Corvette?
The TX6E-SH51-02C Corvette is an optical communication subsystem that transmits up to 24 Gbps of data (4 x 6 Gbps) and includes a bidirectional side-band channel for control and communication, all on a single multimode fiber.
What are the main features of the SH51-02C Corvette?
The main features include compatibility with Displayport 1.2 and HDMI 2.0 signals, four TX lanes at 6 Gbps each for 24 Gbps data links, a bidirectional side-band channel supporting up to 1.25 Gbps full-duplex communication, and the ability to accept standard SC-terminated 50-micron fiber.
What applications is the SH51-02C Corvette suitable for?
The SH51-02C Corvette is suitable for HDMI, Display Port Matrix switches, optical extenders, and machine vision camera bus applications.
What is the operating temperature range for the SH51-02C Corvette?
The operating temperature range for the SH51-02C Corvette is 0 to 65 °C.
What are the supply voltage requirements for the SH51-02C Corvette?
The supply voltage for the SH51-02C Corvette should be between 3.15 and 3.45 V.
What type of connector does the SH51-02C Corvette use?
The SH51-02C Corvette uses a standard SC optical connector.
What is the maximum relative humidity for the SH51-02C Corvette?
The maximum relative humidity for the SH51-02C Corvette is 80%.
