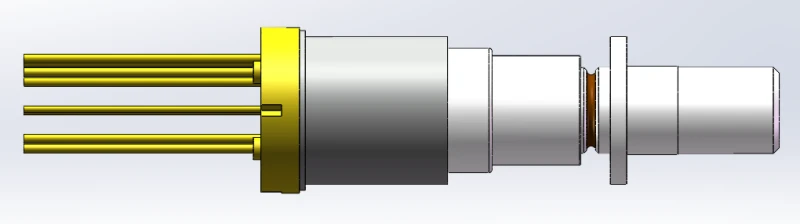

Thumbnail of 50G 1310nm EML TOSA for Industrial Temperature Applications photo 1

Description

Introducing the cutting-edge 50G 1310nm EML TOSA, a high-performance optical transmitter designed to meet the demands of modern industrial applications. This advanced device features a multi-quantum-well structured EML laser diode, ensuring exceptional performance and reliability for data rates up to 50Gbps PAM4. The TOSA package is compliant with ROHS and Telcordia GR-468 standards, making it a robust choice for various environments.

The 50G 1310nm EML TOSA is engineered with precision, incorporating a ridge waveguide of edge-emitting laser (EEL) technology. This ensures optimal emission at a typical wavelength of 1310nm, providing superior optical output and efficiency. The device is housed in an LC receptacle, offering seamless integration into existing systems while maintaining high performance across a wide temperature range from -40℃ to 85℃.

Designed with durability in mind, this optical transmitter can withstand challenging conditions, thanks to its robust construction and adherence to stringent industry standards. The device's absolute maximum ratings include a storage temperature range of -40℃ to 85℃ and a laser forward current of up to 150mA, ensuring it can handle demanding operational requirements. Additionally, the TOSA's resistance to electro-static damage is enhanced by recommended precautions, such as using anti-static materials and maintaining a controlled humidity environment.

The 50G 1310nm EML TOSA is an ideal solution for those seeking a reliable and efficient optical transmitter for high-speed data transmission. Its sophisticated design and adherence to industry standards make it a valuable addition to any optical communication system, ensuring seamless performance and longevity.

50G 1310nm EML TOSA for Industrial Temperature Applications

Visit the Friend Laser Photonics Co.,Ltd. Store

Specifications

Threshold Current: 20 mA
Peak Wavelength (typical): 1310 nm
Side Mode Suppression Ratio: 35 dB
Resistance Value: 10 KΩ
Spectral Width: 1 nm
Peak Wavelength: 1303.5 to 1316.5 nm
Tacking Error: -1.5 to 1.5 dB
Dark Current: 100 nA
Monitor Current (PD): 0.1 to 1.2 mA
Output Optical Power: 4.5 mW
Threshold Current: 20 to 35 mA
Lead Soldering Temperature (10 Sec): 260 ℃
Laser Forward Current (CW): 150 mA
Reverse Voltage (Laser Diode): 3 V
Operating Temperature: -40 to 85 ℃
Storage Temperature: -40 to 85 ℃
Data Rate: 50 Gbps

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 1310 nm Typical Emission Wavelength of EML: Ensures optimal performance for industrial applications.
  • Ridge Waveguide of Edge Emitting Laser (EEL): Provides efficient light emission and high data rates.
  • Data Rate up to 50 Gbps PAM4: Supports high-speed data transmission for advanced communication systems.
  • LC TOSA Package: Compact and efficient packaging for easy integration into optical systems.
  • ROHS Compliant: Environmentally friendly and safe for use in various applications.
  • Compliant with Telcordia GR-468: Meets industry standards for reliability and performance.

Applications

  • Data Centers: Ideal for high-speed data transmission in data center environments.
  • Telecommunications: Suitable for telecommunications infrastructure requiring reliable and fast data transfer.
  • Networking Equipment: Can be integrated into networking devices for enhanced performance.
  • Optical Transceivers: Used in the development of optical transceivers for improved signal quality.
  • Industrial Applications: Designed for industrial temperature applications, ensuring durability and performance.
  • Research and Development: Useful in R&D settings for testing and developing new optical technologies.

Frequently Asked Questions

What is the typical emission wavelength of the EML laser?
The typical emission wavelength of the EML laser is 1310 nm.
What is the maximum data rate supported by this TOSA?
The TOSA supports a data rate of up to 50 Gbps using PAM4 modulation.
What are the operating temperature limits for this product?
The operating temperature range for this product is from -40°C to 85°C.
Is this product ROHS compliant?
Yes, this product is ROHS compliant.
What precautions should be taken to prevent electro-static damage?
Operators should use antistatic bands and clothing, electric conductive shoes, and ensure the working environment has humidity controlled at or above 40% RH. Grounding mats should be used on workbenches and floors.
What is the peak wavelength range for this TOSA?
The peak wavelength range for this TOSA is from 1303.5 nm to 1316.5 nm.
What is the maximum laser forward current allowed?
The maximum laser forward current allowed is 150 mA.

Got more questions? Use the inquiry form to ask the supplier directly.
