Description
The 100G 1310nm EML TOSA is a cutting-edge optical transceiver subassembly designed for high-speed optical fiber communication. This product utilizes a multi-quantum-well structured EML laser diode, which is pivotal in achieving data rates of up to 100 Gbps. The integration of this advanced technology ensures that the TOSA delivers exceptional performance, making it an ideal choice for modern telecommunication systems.
Encased in an LC TOSA package, this product is compliant with ROHS and adheres to the stringent standards of Telcordia GR-468. The design incorporates a ridge waveguide of an edge-emitting laser (EEL), which is crucial for maintaining the integrity and efficiency of the optical signal transmission. The typical emission wavelength of 1310 nm further enhances its compatibility with existing fiber optic infrastructures, ensuring seamless integration and operation.
Attention to detail in the manufacturing process is evident in the robust construction and reliability of the 100G 1310nm EML TOSA. The product is designed to withstand a wide range of operating temperatures, from 0 to 70°C, and storage temperatures from -40 to 85°C. This durability ensures consistent performance even in challenging environmental conditions. Additionally, the product is equipped with protective measures against electro-static damage, emphasizing the importance of proper handling and installation to maintain its longevity and functionality.

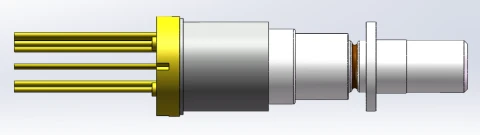

100G 1310nm EML TOSA for Optical Fiber Communication
Specifications
| Threshold Current: | 25 mA |
|---|---|
| Peak Wavelength (typical): | 1310 nm |
| Side Mode Suppression Ratio: | 30 dB |
| TEC Voltage: | 2.4 V |
| TEC Current: | 0.94 A |
| Peak Wavelength: | 1305 to 1315 nm |
| Tacking Error: | -1.5 to 1.5 dB |
| Dark Current: | 100 nA |
| Monitor Current (PD): | 0.1 to 1.2 mA |
| Output Optical Power: | 2 mW |
| Laser Operating Current: | 80 to 150 mA |
| Threshold Current: | 25 mA |
| Lead Soldering Temperature (10 Sec): | 260 ℃ |
| Laser Forward Current (CW): | 150 mA |
| Reverse Voltage (Laser Diode): | 2 V |
| Operating Temperature: | 0 to 70 ℃ |
| Storage Temperature: | -40 to 85 ℃ |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- 1310 nm Typical Emission Wavelength of EML: Ensures optimal performance for high-speed data transmission.
- Ridge Waveguide of Edge Emitting Laser (EEL): Provides efficient light emission and high reliability.
- Data Rate up to 100 Gbps: Supports ultra-fast data communication for advanced networking applications.
- LC TOSA Package: Compact and robust packaging for easy integration into optical systems.
- ROHS Compliant: Environmentally friendly and adheres to global safety standards.
- Compliant with Telcordia GR-468: Meets industry standards for reliability and performance in telecommunications.
Applications
- High-Speed Data Transmission: Supports data rates up to 100 Gbps, ideal for high-speed optical fiber communication.
- Advanced Laser Technology: Utilizes a 1310 nm typical emission wavelength EML laser diode with a ridge waveguide of edge emitting laser (EEL).
- Compact and Compliant Design: Features an LC TOSA package that is ROHS compliant and meets Telcordia GR-468 standards.
- Wide Temperature Range: Operates efficiently within a temperature range of 0 to 70°C, with storage capabilities from -40 to 85°C.
- Robust Electrical Specifications: Includes parameters such as a maximum laser forward current of 150 mA and a reverse voltage of 2V.
- Optical Performance: Offers an output optical power of 2 mW and a side mode suppression ratio (SMSR) of 30 dB.
- Precision Engineering: Designed with a mechanical tolerance of ±0.05 mm for precise integration into systems.
- Electrostatic Discharge (ESD) Precautions: Requires antistatic handling and grounding to prevent damage from electro-static discharge.
- Environmental Considerations: Recommends maintaining a humidity level of 40% RH or above in the working environment to ensure optimal performance.
Frequently Asked Questions
What is the typical emission wavelength of the EML in this product?
What is the maximum data rate supported by this TOSA?
What are the absolute maximum ratings for storage and operating temperatures?
What precautions should be taken to prevent electro-static damage?
What is the maximum laser forward current allowed?
Is this product ROHS compliant?
What is the side mode suppression ratio (SMSR) for this TOSA?
Got more questions? Use the inquiry form to ask the supplier directly.
