Description
FiberConnect® stands at the forefront of fiber optic technology, delivering unparalleled performance and reliability for a wide range of applications. Engineered with precision, our fiber optics are designed to meet the rigorous demands of modern communication networks. The integration of advanced materials and cutting-edge technology ensures that FiberConnect® products provide exceptional optical clarity and durability, even in the most challenging environments.
At the heart of FiberConnect® is our commitment to quality and precision. Each fiber is meticulously crafted to maintain optimal core and cladding alignment, minimizing signal loss and maximizing data transmission efficiency. Our fibers are rigorously tested to meet stringent MIL specifications, ensuring they are radiation-resistant and suitable for use in critical applications. With a focus on reducing attenuation and chromatic dispersion, FiberConnect® fibers deliver superior signal integrity over long distances.
The innovative design of FiberConnect® fibers incorporates a robust primary coating that protects the optical core and cladding, enhancing the fiber's resilience to environmental factors. This design not only safeguards the fiber from mechanical stress but also ensures consistent performance across a wide temperature range. Whether in storage or operation, FiberConnect® fibers maintain their integrity, providing reliable connectivity and high-speed data transfer in diverse conditions.
FiberConnect® is more than just a product; it's a commitment to excellence in fiber optic technology. Our dedication to research and development ensures that each fiber we produce is at the cutting edge of innovation, offering our customers the best in optical performance and reliability. With FiberConnect®, you are investing in a future of seamless connectivity and advanced communication solutions.
Radiation-Hard Singlemode Fibers - MIIL-PRF-49291-7-02
Specifications |
|
|---|---|
| Mode Field Diameter (MFD): | 10 um |
| Wavelength Range: | 1300 – 1700 nm |
| Cable Length: | 1100 m |
| Fiber Core Material: | Not Specified |
| Coating Diameter: | 500 um |
| Cladding Diameter: | 125 um |
Features
- Product Name: FiberConnect®
- Key Technologies: FiberSwitch®, FiberSplit®, FiberTech®

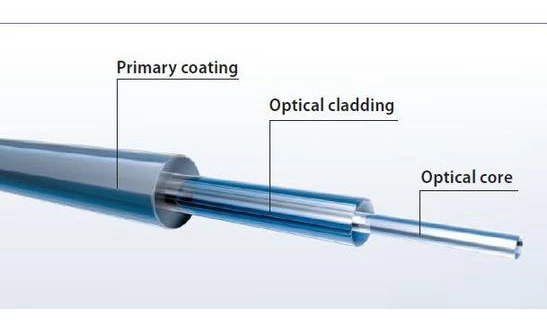

- Optical Core: Designed for superior performance in demanding environments.
- Primary Coating: Provides enhanced protection and durability.
- Optical Cladding: Ensures optimal light propagation with minimal loss.
- Radiation-Hard Fibers: Complies with MIL specifications for radiation-resistant singlemode fiber SMF.
- Singlemode Fiber Specifications: 09/125/245μm, MIL-PRF-49291/7-01 & 7-02 compliant.
- Core/Cladding Concentricity Error: ≤ 1.0 μm for precise alignment.
- Cladding Diameter: 125 μm with a tolerance of ±1 μm.
- Cladding Ovality: ≤ 2.0 μm for uniform shape.
- Attenuation at 1310 nm/1550 nm: 0.4/0.3 dB/km for efficient signal transmission.
- Uniform Attenuation at 1310 nm: ≤ 0.1 dB for consistent performance.
- Mode Field Diameter (MFD): 8.5 ≤ MFD ≤ 10.0 μm for optimal mode field distribution.
- Chromatic Dispersion at 1310 nm/1550 nm: ≤ 3.2/22 ps/nm²×km for minimal signal distortion.
- Macrobending Loss at 1300 nm: ≤ 0.5 dB, ensuring low loss even under bending conditions.
- Coating Diameter: 250 ± 15 μm and 500 ± 25 μm for robust protection.
- Coating/Cladding Concentricity Error: ≤ 10.5 μm and ≤ 15.0 μm for precise coating alignment.
- Overall Coating Concentricity Ratio (OCCR): ≥ 0.70 and ≥ 0.84 for consistent coating thickness.
- Mechanical Properties: Designed for long-term reliability.
Applications
- Aerospace Communication Systems: For satellites, avionics, and spacecraft requiring radiation hardness.
- Defense and Military Networks: Suitable for secure, high-reliability tactical communication links.
- Nuclear Facility Instrumentation: Maintains performance under continuous radiation exposure.
- Harsh Industrial Environments: Ideal for fiber optic sensing and monitoring in extreme conditions.
Frequently Asked Questions
The optical properties of the Radiation-Hard Singlemode Fibers include core/cladding concentricity error, cladding Ø, cladding ovality, attenuation at 1310 nm/1550 nm, uniform attenuation at 1310 nm, mode field Ø, chromatic dispersion at 1310 nm/1550 nm, and macrobending loss at 1300nm.
Radiation-hard MIL-Spec multimode and singlemode fibers were specially developed for applications in for example aerospace industries in order to withstand the hazards in radiation-threatened areas or under demanding environmental conditions.
The mechanical properties of the Radiation-Hard Singlemode Fibers include length, fiber weight, proof test, dynamic tensile strength, operating temperature, storage temperature, and coating strip force.
The Radiation-Hard Singlemode Fibers meet and exceed the quality standards of the ITU G.651 and G.652 or IEC 60793-2-10 and IEC 60793-2-50.
The MIL specifications for radiation-resistant singlemode fiber are SMF 09/125/245μm 09/125/245μm MIIL-PRF-49291/7-01 MIIL-PRF-49291/7-02.
