Single Acrylate Coated Multimode Fiber – 84800005N
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Discover the exceptional quality and versatility of Leoni's step-index multimode fibers, designed specifically for UV-VIS applications. These fibers are crafted from pure fused silica glass, featuring a core and cladding with high hydroxyl (OH) content. This composition ensures optimal performance across a broad wavelength range, from 190 nm to 1100 nm, making them ideal for a variety of optical applications. The robust construction of these fibers is complemented by a choice of coatings, including acrylate, silicone, and polyimide. Each coating offers unique benefits, such as enhanced durability and specific temperature resistances, catering to diverse environmental conditions.
Whether you're working in optical data transmission, sensor technology, spectroscopy, medical technology, or laser applications, these fibers provide reliable and efficient solutions. Leoni's step-index multimode fibers are renowned for their precision and adaptability. With core diameters ranging from 50 μm to 1500 μm and corresponding cladding diameters, these fibers can be tailored to meet specific project requirements.
The fibers also offer a numerical aperture of 0.22, ensuring excellent light-gathering capabilities and flexibility in design. Choose Leoni Fiber Optics for your next project and experience the superior quality and performance that sets these fibers apart.
Single Acrylate Coated Multimode Fiber – 84800005N
Specifications |
|
---|---|
Core Diameter: | 105 um |
Wavelength Range: | 190 – 1100 nm |
Fiber Core Material: | Silica |
Fiber Length: | Custom |
Features

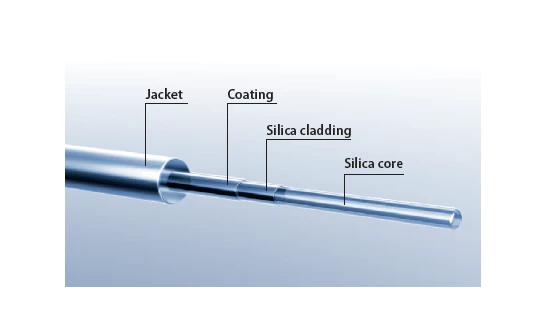

- Material Composition: Core and cladding made of pure fused silica glass with high OH content.
- Wavelength Range: Suitable for use from 190 nm to 1100 nm (UV-VIS).
- Coating Options: Available with acrylate, silicone, or polyimide coatings.
- Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Core Diameter Options: Available in diameters of 50 μm, 100 μm, 105 μm, 115 μm, 200 μm, 300 μm, 365 μm, 400 μm, 500 μm, 600 μm, 800 μm, 910 μm, 1000 μm, and 1500 μm.
- Cladding Diameter Options: Cladding diameters range from 55 μm to 440 μm.
- Numerical Aperture: Standard 0.22, with options ranging from 0.1 to 0.28 on request.
- Jacket Options: Available with Nylon® or Tefzel® jackets in various colors including black, blue, transparent, yellow, red, and white.
- Bending Radius: Short-term bending radius is 100 times the clad radius; long-term is 600 times the clad radius.
- Special Features: ORMOCER® coating available for continuous use at 200 °C.
Applications
- Optical Data Transmission: These fibers are ideal for transmitting optical data over a wide range of wavelengths, from 190 nm to 1100 nm (UV-VIS).
- Sensor Technology: The fibers are used in various sensor applications, benefiting from their high precision and reliability.
- Spectroscopy: With their ability to handle UV-VIS wavelengths, these fibers are perfect for spectroscopic analysis.
- Medical Technology: The fibers' versatility and precision make them suitable for medical applications, including diagnostics and imaging.
- Laser Applications: These fibers can be used in laser systems, taking advantage of their high OH content and step-index multimode configuration.
Frequently Asked Questions
These multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The temperature range for these fibers is -40 °C to 85 °C, with an optional range of up to 150 °C for some fibers.
The short-term bending radius is 100 x clad radius, and the long-term bending radius is 600 x clad radius.
The numerical aperture for these fibers is 0.22, with a range of 0.1 to 0.28 available upon request.
The fibers are used in a wavelength range from 190 nm to 1100 nm (UV-VIS).
