Description
Discover the exceptional capabilities of our newly developed ultrasol® fibers, specifically engineered to deliver outstanding performance in the UV-VIS spectrum. These high OH content fibers are meticulously designed to provide excellent transmission in the critical 190–250 nm range, making them ideal for applications that demand precision and reliability. With the integration of solarisation-stable technology, these fibers ensure durability and consistency even under prolonged exposure to UV light sources, such as deuterium lamps.

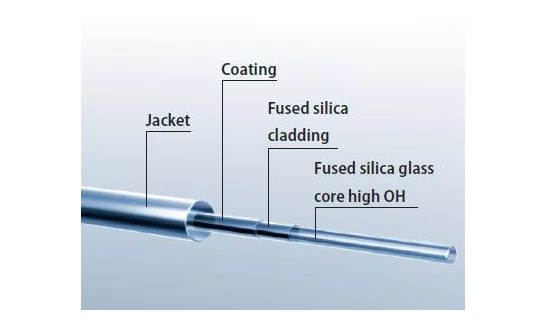

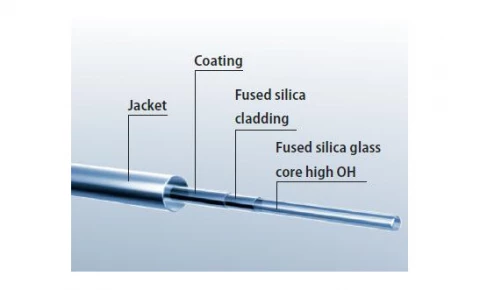

Our ultrasol® fibers feature a robust construction, comprising a fused silica glass core and cladding, which enhances their resistance to progressive absorption and eventual failure in UV-VIS applications below 240 nm. This innovative design ensures that the fibers maintain their integrity and performance over extended periods, providing a reliable solution for demanding optical applications. The fibers are coated with either single acrylate or polyimide, offering flexibility and adaptability to suit various environmental conditions and requirements.
Available in a range of core diameters from 100 μm to 600 μm, these step-index multimode fibers cater to diverse needs and specifications. Additionally, they can be configured as fiber bundles with a single-fiber core starting from 30 μm, offering further versatility for complex optical systems. Optional coatings such as Nylon® or Tefzel® are also available, providing additional customization to meet specific demands. Experience the superior quality and performance of our ultrasol® fibers, the ideal choice for applications requiring solarisation stability and high transmission in the UV-VIS range.
FiberTech Ultrasol Fibers - 84808012F
Specifications |
|
|---|---|
| Core Diameter: | 200 um |
| Wavelength Range: | 190 – 250 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
| Fiber Type: | Solarization Stable |
Features
- High Transmission Efficiency: These fibers offer excellent transmission in the 190–250 nm range, making them ideal for UV-VIS applications.
- Solarization-Stable Design: Ultrasol® fibers are designed to resist solarization, ensuring reliable performance even in critical UV ranges below 240 nm.
- Versatile Core Sizes: Available in core diameters ranging from 100 μm to 600 μm, accommodating various application needs.
- Durable Coatings: Choose between single acrylate and polyimide coatings, with precise diameter tolerances for enhanced protection and performance.
- Customizable Options: Optional coatings like Nylon® or Tefzel® are available, along with further specifications to meet specific requirements.
- Robust Construction: Features a fused silica glass core with high OH content and fused silica cladding for superior durability and optical clarity.
- Flexible Configurations: Available as individual fibers or fiber bundles with single-fiber cores starting from 30 μm, providing flexibility for diverse applications.

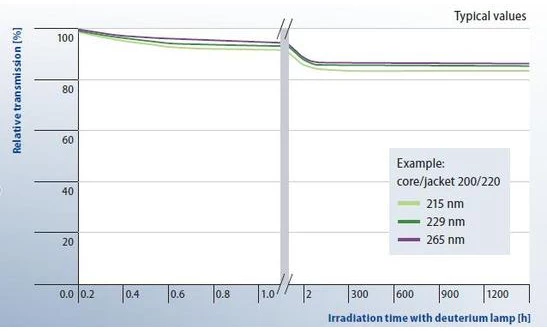

- Reliable Under Extreme Conditions: These fibers maintain performance even under prolonged exposure to deuterium lamp irradiation, ensuring long-term reliability.
Applications
- UV-VIS Spectroscopy: Reliable light transmission for precise analytical measurements
- Analytical Instrumentation: Enhances performance in UV-based laboratory equipment
- UV Illumination Systems: Stable light delivery for industrial and research setups
- Industrial UV Processing: Suitable for curing, lithography, and UV manufacturing
- Scientific Research: Long-term stability for high-intensity UV experimental applications
Frequently Asked Questions
The FiberTech Ultrasol Fibers are solarisation-stable and can be used for applications in the critical range below 240 nm, while UV-VIS fibers experience progressive absorption to the point of complete failure in this range.
The FiberTech Ultrasol Fibers have a single acrylate coating or a polyimide coating, with optionally available Nylon or Tefzel coating.
Yes, FiberTech Ultrasol Fibers are also available as fiber bundles with a single-fiber core from 30 μm.
The FiberTech Ultrasol Fibers have very good transmission in the 190-250 nm range.
The core diameter of the FiberTech Ultrasol Fibers is 100 μm.
