Description

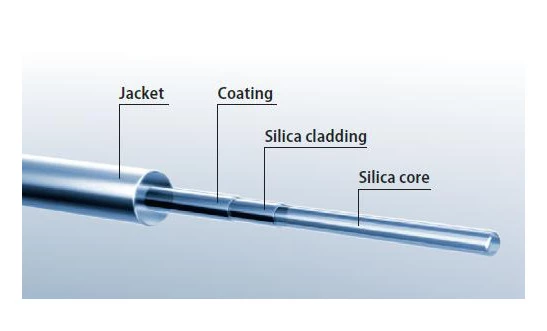

Leoni Fiber Optics presents a sophisticated line of glass fibers designed for infrared applications, featuring a core made from pure fused silica glass. These fibers boast a low OH content and maintain a uniform refractive index across their entire diameter, making them ideal for a wide range of optical needs. Operating effectively within a wavelength range of 400 nm to 2400 nm (VIS-IR), these fibers are adaptable to various environments and applications.
The glass fibers are encased in a protective coating, available in materials such as acrylate, silicone, or polyimide, each offering unique benefits. The multimode fibers are expertly engineered for use in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications. This versatility ensures that the fibers meet the demands of various industries, providing reliable and efficient performance.
Leoni Fiber Optics' fibers come in a variety of core and cladding diameters, accommodating different technical requirements. The coatings, whether single or dual acrylate, or polyimide, ensure the fibers can withstand a broad range of temperatures, enhancing their durability and functionality. For added protection, fibers with coatings are also available with jackets, made from materials like Nylon® or Tefzel®, and offered in several colors to suit specific needs.
With a commitment to quality and innovation, Leoni Fiber Optics delivers fibers that not only meet but exceed industry standards. The incorporation of advanced materials and meticulous design ensures that each fiber provides optimal performance, reliability, and longevity. Whether for data transmission or intricate sensor applications, Leoni's glass fibers are a trusted choice for professionals worldwide.
Dual Acrylate Coated Multimode Fiber – 84810050N
Specifications |
|
|---|---|
| Core Diameter: | 200 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- Material Composition: The core of the glass fibers is made from pure fused silica glass with low OH content, ensuring a uniform refractive index across the entire diameter.
- Wavelength Range: Suitable for use in the wavelength range from 400 nm to 2400 nm (VIS-IR).
- Coating Options: Fibers are available with coatings made of acrylate, silicone, or polyimide.
- Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Step-Index Multimode: Designed for VIS-IR applications.
- Core Diameter Options: Available in various core diameters: 40 μm, 50 μm, 60 μm, 90 μm, 100 μm, 105 μm, and 200 μm.
- Cladding Diameter Options: Cladding diameters range from 110 μm to 220 μm.
- Numerical Aperture: Standard numerical aperture is 0.22, with options ranging from 0.1 to 0.4 upon request.
- Jacket Options: Fibers with coatings and jackets are available in materials such as Nylon® and Tefzel®.
- Jacket Diameter: Standard jacket diameter is 500 μm with a tolerance of ±5%.
- Bending Radius: Short-term bending radius is 100 x clad radius; long-term bending radius is 600 x clad radius.
- Color Options: Jackets are available in black, blue, transparent, yellow, red, and white (note: fiber code applies to black jackets; other colors available on request).
- Special Coatings: ORMOCER® coating available for continuous use at 200 °C.
Applications
- Optical Data Transmission: The fibers are used extensively in optical data transmission, providing reliable and efficient communication.
- Sensor Technology: Ideal for use in various sensor applications due to their precise performance in detecting and transmitting data.
- Spectroscopy: These fibers are suitable for spectroscopy applications, allowing for the analysis of materials through their light absorption and emission properties.
- Medical Technology: The fibers are employed in medical technology, offering precise and safe solutions for various medical procedures and diagnostics.
- Laser Applications: Used in laser applications, these fibers support high-performance laser systems for industrial and medical uses.
Frequently Asked Questions
The core of the glass fibers for IR consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
The multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The temperature range for the fibers with dual acrylate coating is -40 °C to 85 °C (optional -60 °C to 150 °C).
The fibers are used in a wavelength range from 400 nm to 2400 nm (VIS-IR).
The short-term bending radius is 100 x clad radius.
