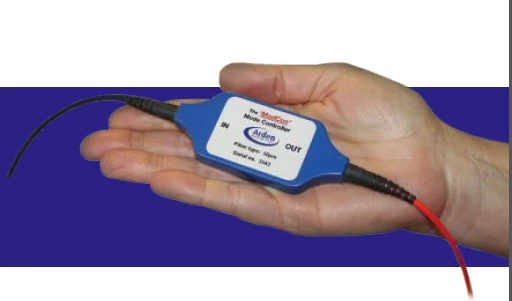

ModCon Mode Controller MC-SC/LC-62-N
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
This ModCon Mode Controller is an innovative solution designed to enhance the precision and reliability of fiber optic measurements. This compact and lightweight module is engineered to modify LED or VCSEL light sources, ensuring they deliver a stable and consistent Encircled Flux (EF) compliant output. By simply integrating the ModCon with your existing light source, you can achieve outputs that meet the stringent requirements of IEC 61280-4-1:2009 standards. Accurate measurements in multi-mode fibers are crucial, as they are highly influenced by the modal conditions of the light source. Traditional measurement tools like OTDR and LS/PM often yield different results due to the inherent differences between laser and LED sources. The ModCon Mode Controller addresses this issue by standardizing the modal distribution, thus minimizing measurement uncertainties and improving the consistency of test data across different setups. Incorporating the ModCon into your measurement process not only enhances accuracy but also ensures compliance with international standards. Each unit undergoes rigorous testing with Arden’s MPX Modal Explorer to confirm its output aligns with EF standards, regardless of the input's modal distribution. Additionally, Arden Photonics provides a Certificate of Conformance or Test Sheet with each ModCon, assisting in maintaining accurate test equipment records and ensuring peace of mind for compliance verification. With its user-friendly plug-and-play design, the ModCon Mode Controller is a straightforward and effective method to boost measurement repeatability in multi-mode fiber tests. Optimized for 850nm and 1300nm wavelengths, it seamlessly integrates with all multi-mode fiber optic testers, making it an indispensable tool for professionals seeking enhanced measurement precision and reliability.
ModCon Mode Controller MC-SC/LC-62-N
Specifications |
|
|---|---|
| Max Power Throughput : | 10 mW |
| Mass: | 50g |
| Dimensions (Excluding Cabling): | 153mm x 36mm x 10.5mm |
| Input Cable Length: | 1.0m |
| Output Cable Length: | 1.0m |
| Input/output Cable Jacket: | 3mm PVC jacket with Aramid strength member |
| Enclosure Material: | High strength polymer |
| Maximum Power Throughout: | 10mW |
| Insertion Loss @ 850nm 50µm: | < 3dB |
| Insertion Loss @ 850nm 62.5µm: | < 3dB |
Features
- EF Compliant to IEC 61280-4-1: Ensures your measurements meet international standards for accuracy and repeatability.
- Improves Measurement Repeatability: Provides consistent launch conditions in multi-mode fiber tests, reducing uncertainty and improving data reliability.
- Optimized for 850nm and 1300nm: Specifically designed to work efficiently with these common wavelengths in fiber optic testing.
- Compatible with All Multi-Mode Fiber Optic Testers: Versatile design ensures compatibility with a wide range of testing equipment.
- Compact and Lightweight Design: Weighing only 50g with dimensions of 153mm x 36mm x 10.5mm, it's easy to integrate into your existing setup.
- Durable Construction: Features a high-strength polymer enclosure and 3mm PVC jacketed cables with Aramid strength members for enhanced durability.
- Low Insertion Loss: Maintains signal integrity with an insertion loss of less than 3dB at 850nm for both 50µm and 62.5µm fibers.
- Maximum Power Throughout: Capable of handling up to 10mW of optical power, ensuring robust performance in various testing scenarios.
- Certified Performance: Each ModCon is rigorously tested using Arden’s MPX Modal Explorer, with optional Certificate of Conformance available to support your compliance needs.
Applications
- Measurement Accuracy: Increases the accuracy of loss and bandwidth measurements in multi-mode fibers.
- Repeatability: Improves measurement repeatability in multi-mode fiber tests.
- Compatibility: Works with all multi-mode fiber optic testers.
- Wavelength Optimization: Optimized for 850nm and 1300nm wavelengths.
- Uncertainty Reduction: Reduces measurement uncertainty due to variations between light sources.
Frequently Asked Questions
The ModCon Mode Controller is a compact and lightweight module that modifies your LED or VCSEL light source to provide repeatable EF compliant launch conditions.
By simply plugging the ModCon into your light source, you will be provided with a stable and consistent EF compliant output that meets IEC 61280-4-1:2009.
The ModCon increases the accuracy of measurements, gives better agreement between test data sets, and is a simple and certifiable method of complying with international standards.
The ModCon is suitable for fiber mode control and test certification.
Yes, the ModCon works with all multi-mode fiber optic testers.
