Description
The ModCon Mode Controller by Arden Photonics is an essential component for ensuring consistent and reliable testing of multimode optical fiber networks. Whether you are using an LED, Laser, OTDR, or white light source, this mode controller guarantees that the same distribution of modes is launched into the fiber. This consistency is crucial for eliminating variations that can arise due to the differing modal characteristics of various sources commonly used in fiber optic measurements and networks.
Designed with precision and reliability in mind, the ModCon Mode Controller is housed in a durable aluminium alloy enclosure, ensuring long-lasting performance even in demanding environments. Its compact and lightweight design, with dimensions of 87mm x 42mm x 12mm and a mass of only 80g, makes it an ideal choice for integration into a wide range of applications. The device features input and output cable lengths of 500mm, each protected by a robust 900µm nylon loose tube jacket.
The optical performance of the ModCon Mode Controller is designed to meet the highest standards. It offers an insertion loss of less than 3dB for both 50µm and 62.5µm fibers at 850nm, ensuring minimal signal loss during operation. Additionally, it complies with the Encircled Flux requirements of IEC 61280-4-1: 2009, providing assurance of its quality and reliability. With a maximum power throughput of 10mW and reference-grade connectors, the ModCon Mode Controller is engineered to deliver exceptional performance in every use.
OEM Mode Controller MC- OEM- FC/FC- 62-500-S
Specifications |
|
|---|---|
| Max Power Throughput : | 10 mW |
| Mass: | 80g |

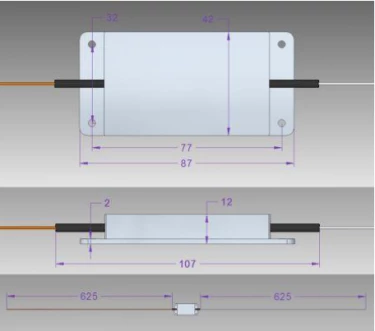

| Dimensions: | 87mm x 42mm x 12mm |
| Input Cable Length: | 500mm |
| Output Cable Length: | 500mm |
| Input/output Cable Jacket: | 900µm nylon loose tube |
| Enclosure Material: | Aluminium alloy |
| Insertion Loss @ 850nm 50µm: | < 3dB |
| Insertion Loss @ 850nm 62.5µm: | < 3dB |
| Encircled Flux Compliance: | IEC 61280-4-1: 2009 |
| Maximum Power Throughput: | 10mW |
| Connectors: | Reference grade |
Features
- Consistent Mode Distribution: The ModCon Mode Controller ensures a consistent distribution of modes into the fiber, eliminating variations caused by different modal characteristics of sources like LED, Laser, OTDR, or white light.
- Compact and Lightweight Design: Weighing just 80g and measuring 87mm x 42mm x 12mm, this mode controller is easy to integrate into various setups.
- Standardized Compliance: Meets the Encircled Flux compliance to IEC 61280-4-1: 2009 standards, ensuring reliable and standardized measurements.
- Low Insertion Loss: Offers an insertion loss of less than 3dB for both 50µm and 62.5µm at 850nm, maintaining signal integrity.
- Durable Construction: Built with an aluminium alloy enclosure for enhanced durability and protection.
- High Power Handling: Capable of handling a maximum power throughput of 10mW, suitable for various applications.
- Convenient Connectivity: Equipped with reference-grade FC/PC connectors on both input and output, ensuring secure and reliable connections.
- Flexible Cabling: Features 500mm input and output cables with 900µm nylon loose tube jackets for added flexibility and ease of installation.
Applications
- Ensure Consistent Mode Distribution: The ModCon Mode Controller guarantees that whatever source you use—LED, Laser, OTDR, or white light—you will launch the same distribution of modes into your multimode optical fiber network.
- Eliminate Source Variations: By using the Mode Controller, you can eliminate variations due to the widely different modal characteristics of sources commonly used in fiber optic measurements and networks.
- Encircled Flux Compliance: The device complies with IEC 61280-4-1: 2009, ensuring standardized performance.
- Low Insertion Loss: The Mode Controller offers an insertion loss of less than 3dB at 850nm for both 50µm and 62.5µm fibers.
- Compact and Lightweight: With a mass of 80g and dimensions of 87mm x 42mm x 12mm, the device is compact and easy to integrate into OEM systems.
- Durable Construction: The enclosure is made from aluminum alloy, providing robust protection.
- High Power Throughput: Capable of handling a maximum power throughput of 10mW.
- Standardized Connectors: Equipped with reference grade FC/PC connectors on both input and output for reliable connections.
Frequently Asked Questions
The ModCon Mode Controller is used to ensure that whatever source you use to test the loss and bandwidth of your multimode optical fiber network, LED, Laser, OTDR or white light, you launch the same distribution of modes into the fiber.
The dimensions of the ModCon Mode Controller (excluding cabling) are 87mm x 42mm x 12mm.
The maximum power throughput of the ModCon Mode Controller is 10mW.
The insertion loss of the ModCon Mode Controller at 850nm is less than 3dB for both 50µm and 62.5µm fibers.
The ModCon Mode Controller has FC/PC connectors on both input and output.
