ModCon Mode Controller MC-SC-62-N

Name: ModCon Mode Controller MC-SC-62-N
Brand: Arden Photonics Ltd
Availability: InStock

Description

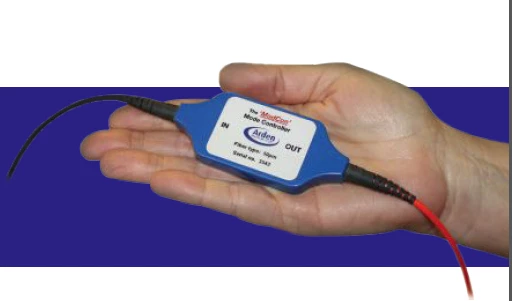

ModCon Mode Controller is a revolutionary tool designed to enhance the precision and reliability of your fiber optic measurements. This compact and lightweight module seamlessly integrates with your existing LED or VCSEL light sources, transforming them into stable and consistent Encircled Flux (EF) compliant outputs. By doing so, it ensures that your measurements adhere to the stringent standards set by IEC 61280-4-1:2009, providing you with peace of mind and confidence in your data.

Enhancing Measurement Accuracy One of the primary challenges in fiber optic testing is the variation in modal conditions between different light sources. This can lead to significant discrepancies in measurements such as Optical Time Domain Reflectometer (OTDR) and Loss/Power Meter (LS/PM) loss assessments. The ModCon Mode Controller addresses this issue by standardizing the mode distribution launched into the fiber, regardless of the source type. This uniformity reduces uncertainty and enhances the accuracy of your measurements, ensuring better agreement between test data sets.

Compliance and Certification Every ModCon unit undergoes rigorous testing using Arden’s MPX Modal Explorer to guarantee its output meets the necessary standards, regardless of input variations. For professionals who require documentation for compliance purposes, Arden Photonics offers a Certificate of Conformance or Test Sheet. This documentation aids in fulfilling test equipment record-keeping obligations, making the ModCon not only a tool for precision but also a certifiable method for adhering to international standards.

Conclusion In summary, the Arden Photonics ModCon Mode Controller is an essential tool for anyone looking to achieve higher accuracy and repeatability in multi-mode fiber testing. Its ability to provide EF-compliant conditions makes it an indispensable asset in reducing measurement uncertainties and ensuring compliance with international standards. Whether you are optimizing for 850nm or 1300nm, the ModCon works seamlessly with all multi-mode fiber optic testers, making it a versatile addition to your testing suite.

Specifications

Max Power Throughput :	10 mW
Mass:	50g
Dimensions:	153mm x 36mm x 10.5mm
Input Cable Length:	1.0m
Output Cable Length:	1.0m
Input/output Cable Jacket:	3mm PVC jacket with Aramid strength member
Enclosure Material:	High strength polymer
Maximum Power Throughout:	10mW
Insertion Loss @ 850nm 50µm:	< 3dB
Insertion Loss @ 850nm 62.5µm:	< 3dB

Download Data Sheet

Features

Encircled Flux Compliance: The ModCon Mode Controller ensures EF compliance with IEC 61280-4-1:2009, providing stable and consistent output.

Plug & Play Design: Easily integrate the ModCon with your existing LED or VCSEL light sources to achieve repeatable EF compliant launch conditions.

Improved Measurement Accuracy: Reduces uncertainty in measurements by launching a consistent distribution of modes, regardless of the source used.

Standards Compliance: Complies with international standards for multi-mode fiber optic testing, improving agreement between test data sets.

Optimized Wavelengths: Specifically designed for optimal performance at 850nm and 1300nm wavelengths.

Compatibility: Works seamlessly with all multi-mode fiber optic testers, enhancing versatility and usability.

Rigorously Tested: Each ModCon is tested using Arden’s MPX Modal Explorer to ensure standard compliance, with optional Certificate of Conformance or Test Sheet available.

Compact and Lightweight: Weighs only 50g with dimensions of 153mm x 36mm x 10.5mm, excluding cabling, making it easy to handle and install.

Durable Construction: Features a high-strength polymer enclosure and 3mm PVC jacket cables with Aramid strength member for enhanced durability.

Low Insertion Loss: Maintains insertion loss below 3dB at 850nm for both 50µm and 62.5µm fibers.

Maximum Power Throughput: Capable of handling up to 10mW of power, ensuring reliable performance in various testing environments.

Applications

Encircled Flux Compliance: The ModCon Mode Controller ensures that your light source is compliant with IEC 61280-4-1:2009 standards for repeatable EF compliant launch conditions.

Improves Measurement Accuracy: By providing a stable and consistent EF compliant output, the ModCon reduces uncertainty in measurements due to variations between different light sources.

Enhanced Repeatability: Improves measurement repeatability in multi-mode fiber tests, ensuring better agreement between test data sets.

Optimized for Key Wavelengths: Specifically optimized for 850nm and 1300nm, making it suitable for a wide range of applications.

Compatibility: Works with all multi-mode fiber optic testers, providing versatility across different testing equipment.

Certification and Compliance: Every ModCon is tested using Arden’s MPX Modal Explorer, ensuring compliance with international standards. Certificates of Conformance or Test Sheets are available for record-keeping.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United Kingdom

Sold by:

Arden Photonics Ltd

On FindLight:

since 2015

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the ModCon Mode Controller?

The ModCon Mode Controller is a compact and lightweight module that modifies your LED or VCSEL light source to provide repeatable EF compliant launch conditions.

What does the ModCon do?

The ModCon launches the same distribution of modes into the fiber regardless of the source being used and consequently reduces the uncertainty in your measurements due to variation between sources.

What are the benefits of using the ModCon?

The ModCon increases the accuracy of measurements, gives better agreement between test data sets and is a simple and certifiable method of complying with international standards.

What standards does the ModCon comply with?

The ModCon complies with IEC 61280-4-1:2009 standards.

Can I get a Certificate of Conformance or Test Sheet for the ModCon?

Yes, Arden Photonics can provide a Certificate of Conformance or Test Sheet to aid in fulfilling any of your test equipment record keeping obligations.
