Optical Power Monitors (Taps) for Fiber Systems

Did You Know?

Did you know optical power monitors, also called optical taps, enable real-time measurement of light power in fiber optic networks without interrupting the signal flow? These devices tap a small portion of the optical signal to monitor power levels continuously, helping operators detect power fluctuations, signal degradation, or fiber faults early. Optical power monitors are essential for maintaining network health and ensuring stable data transmission in telecommunications, cable TV, and data center applications. By providing constant feedback on optical power, these monitors allow proactive maintenance and rapid troubleshooting, reducing downtime and improving overall network reliability.

Frequently Asked Questions

An optical power monitor (tap) is a passive or semi-passive device that diverts a small, controlled fraction of the optical signal from a fiber for measurement, while letting the majority of the power continue to the main load. It typically uses a fused biconical taper coupler, planar lightwave circuit, or thin-film splitter to create a defined tap ratio (e.g., 1%, 5%, 10%), allowing non-intrusive monitoring of signal power, OSNR, or channel stability in live systems.

Overview of Optical Power Monitors (Taps)

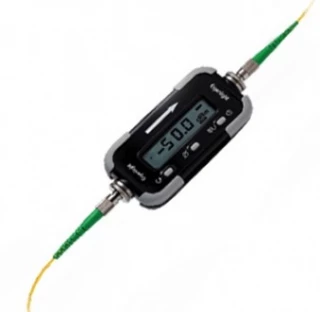

Optical Power Monitors (Taps) are passive fiber components used to sample a defined fraction of optical power from a live fiber link without interrupting transmission. They are implemented as fixed-ratio fiber couplers or tap couplers that divert a small percentage of the signal to a monitoring port, allowing continuous in-line power measurement, link supervision, and system diagnostics.

These devices are critical in dense wavelength division multiplexing (DWDM) systems, optical amplifiers, test beds, and production fiber assemblies where precise power tracking and fault localization are required. Optical Power Monitors (Taps) support rapid troubleshooting, BER optimization, and long-term stability checks in both laboratory and field environments.

Typical Specifications and Parameters

When evaluating Optical Power Monitors (Taps), engineers typically compare:

  • Tap ratio: Common split ratios include 1/99, 2/98, 5/95, and 10/90, specified for particular wavelengths and polarization states.
  • Operating wavelength range: Often 1260–1650 nm for telecom fiber, with variants optimized for 850 nm or specialty bands.
  • Insertion loss: Excess loss on both through and tap ports, usually <0.5–1.0 dB, critical for power budgets.
  • Return loss / reflectance: High return loss (e.g., >55 dB) to minimize back-reflections in sensitive links.
  • Polarization dependence: PD insertion loss and PDL, important in coherent and polarization-sensitive systems.
  • Fiber and connector type: Single-mode or multimode fiber, connectorized (FC/PC, FC/APC, SC, LC) or bare fiber pigtails.
  • Power handling: Maximum continuous and peak power ratings for use with high-power lasers or EDFAs.
  • Packaging and environment: Bare fiber, 900 µm, ruggedized modules, operating temperature range, and reliability data.

Use Cases and Buyer Guidance

Optical Power Monitors (Taps) are deployed in live network monitoring, amplifier gain control loops, transceiver testing, fiber sensor interrogation, and qualification of passive components. In R&D setups they provide reference channels for optical spectrum analyzers, power meters, or high-speed receivers without disturbing the main signal path.

On FindLight, you can compare Optical Power Monitors (Taps) by tap ratio, wavelength band, connectorization, and power handling to match link budget and monitoring requirements. Review detailed datasheets, check compatibility with your existing fiber infrastructure, and verify environmental ratings for field or rack-mounted use. You can contact suppliers and request technical quotes directly from the product pages, without registration, to clarify custom tap ratios, fiber types, or packaging options.
