Polarization Extinction Ratio Meter
Polarization Extinction Ratio Meters: Precision Tools for Polarization Control in Fiber Optics
In the world of fiber optics, polarization plays a vital role in ensuring signal integrity, especially in systems where polarization-sensitive components or high-speed data transmission are involved. Polarization Extinction Ratio (PER) meters are essential tools for measuring the purity of polarized light in optical fibers and components. They provide critical feedback for optimizing manufacturing processes, validating components, and achieving consistent performance in photonic systems.
What Is a Polarization Extinction Ratio Meter?

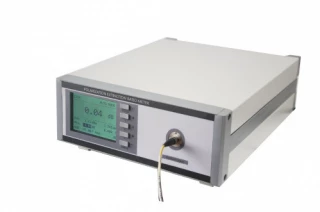

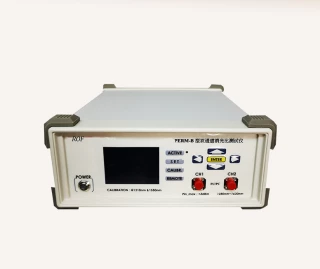

A Polarization Extinction Ratio meter is a high-precision optical instrument designed to measure the extinction ratio of polarized light—essentially, the ratio of power between the desired polarization mode and the orthogonal unwanted mode. In practical terms, a high PER value indicates that light is well-polarized, which is vital for devices like polarization-maintaining (PM) fibers, lasers, modulators, and interferometers.
PER meters are widely used during the alignment and testing of PM fibers and components to ensure they operate efficiently without polarization crosstalk or degradation.
Key Features of PER Meters
Modern PER meters are engineered to deliver fast, accurate, and user-friendly measurements across various wavelengths and system setups. Key features often include:
-
High Sensitivity and Accuracy: Capable of detecting extinction ratios above 30 dB or more, enabling fine-tuned evaluation of PM components.
-
Multi-Wavelength Support: Many models support measurements at popular telecom wavelengths like 1310 nm and 1550 nm.
-
Real-Time Measurement: Instantaneous PER feedback allows for dynamic fiber alignment and optimization.
-
User-Friendly Interfaces: Intuitive displays and software tools make operation straightforward, even in complex test environments.
-
Compact Form Factor: Available in benchtop or handheld configurations to suit lab and field use.
Applications of PER Meters
PER meters serve as a critical diagnostic and verification tool in several domains of fiber optics:
-
Polarization-Maintaining Fiber Alignment: Used in splicing, connectorization, or component assembly to ensure correct fiber alignment for maximum PER.
-
Component Testing: Essential for qualifying the performance of lasers, modulators, isolators, and couplers that rely on polarization fidelity.
-
R&D in Photonics: Researchers use PER meters to investigate polarization-related phenomena and develop next-generation polarization-sensitive devices.
-
Production Quality Control: PER meters help manufacturers verify that products meet strict polarization performance specifications before shipping.
Benefits of Using a PER Meter
-
Improved Device Performance: Ensures optimal alignment and polarization control, critical for high-speed and high-precision optical systems.
-
Enhanced Testing Accuracy: Provides reliable data to characterize and compare the performance of PM components.
-
Operational Efficiency: Speeds up alignment and inspection tasks with real-time feedback.
-
Quality Assurance: Helps maintain consistency in manufacturing and compliance with technical standards.
Conclusion
Polarization Extinction Ratio meters are indispensable tools for professionals working with polarization-sensitive fiber optic components. Their ability to provide precise, real-time measurements enables users to maintain alignment accuracy, reduce signal loss, and improve overall system performance. Whether in a laboratory, production floor, or field environment, PER meters deliver the clarity and control needed to excel in modern fiber optic applications.
