Fiber Optic Distributed Sensors

The OZ Optics Foresight™ series of fiber optic Distributed Strain and Temperature Sensors (DSTS) BOTDA modules are sophisticated sensor systems that utilize stimulated Brillouin scattering in optical fibers to accurately measure changes in strain and temperature along the length of an optical fiber. These modules provide ...

Specifications

Spatial Resolution: 0.1 m
Max Sensing Range: 100 km
Dynamic Range: 30 dB
Temperature Range: -270-1000deg C
Temperature Resolution: 0.005 deg C
...
Data Sheet
The OZ Optics' ForeSight™ family of fiber optic Brillouin distributed strain and temperature sensors (DSTS) utilizes Brillouin scattering to provide sophisticated optical sensor systems for distributed sensing. These sensors offer a direct method of measuring strain and temperature changes along the entire length of an optical ...

Specifications

Spatial Resolution: 1 m
Max Sensing Range: 100 km
Dynamic Range: >15 dB
Temperature Range: -100-500deg C
Temperature Resolution: 0.005 deg C
...
Data Sheet

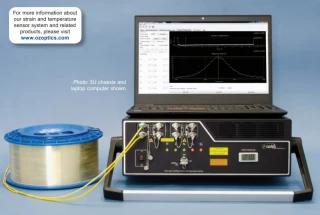

The OZ Optics Foresight™ family of Fiber Optic Brillouin Distributed Temperature Sensors (B-DTS) are advanced optical sensor systems that utilize stimulated Brillouin scattering to measure temperature changes along the entire length of an optical fiber. These distributed sensors offer a direct and fast method of temperature ...

Specifications

Spatial Resolution: 1 m
Max Sensing Range: 100 km
Dynamic Range: Optional dB
Temperature Range: -270-2100deg C
Temperature Resolution: 0.005 deg C
...
Data Sheet
DFS31 Digital Fiber Optic Sensor High Speed
Tri-Tronics Co Inc
The Digital Fiber Optic Sensor High Speed is an ultra-high speed of response, ultra-low jitter sensor for precise position accuracy and high-speed/small profile detection. Its speed of response of 2μs makes it the fastest fiber optic sensor on the market.  The slim-line housing with protective lid will fit in a variety ...

Specifications

Spatial Resolution: -- m
Max Sensing Range: -- km
Dynamic Range: -- dB
Temperature Range: 5-55deg C
Temperature Resolution: -- deg C
...
Data Sheet
DFS12 Digital Fiber Optic Sensor
Tri-Tronics Co Inc
The Digital Fiber Optic Sensor is designed to provide reliable detection using plastic fiber optic light guides. The slim-line housing with protective lid will fit in a variety of small spaces. The DFS is adjusted by a single push of a button; there is no guess work on the part of the operator. The sensor ...

Specifications

Spatial Resolution: -- m
Max Sensing Range: -- km
Dynamic Range: -- dB
Temperature Range: 5-55deg C
Temperature Resolution: -- deg C
...
Data Sheet
DFS61 Digital Fiber Optic Sensor 1460nm SWIR
Tri-Tronics Co Inc
The SWIR Digital Fiber Optic Sensor is tuned to effortlessly detect the presence of clear fluids using fiber optic light guides. The slim-line housing with protective lid will fit in a variety of small spaces. The DFS is adjusted by a single push of a button; there is no guess work on the part of the operator. The ...

Specifications

Spatial Resolution: -- m
Max Sensing Range: -- km
Dynamic Range: -- dB
Temperature Range: 5-55deg C
Temperature Resolution: -- deg C
...
Data Sheet

Frequently Asked Questions

A Fiber Optic Distributed Sensor is a technology that uses optical fibers to measure parameters such as temperature, pressure, acoustics, and strain over large distances. It is especially useful in applications requiring high-resolution, real-time monitoring.

These sensors work by using the principles of light propagation in fiber optics. As light travels down the fiber, it experiences changes based on the environmental parameters. These changes can be analyzed to provide a distributed sensing solution.

Fiber Optic Distributed Sensors are used in a variety of fields like oil and gas (for pipeline monitoring), structural health monitoring (for bridges, dams, and buildings), power cable systems, and seismic and acoustic sensing.

In the oil and gas industry, these sensors provide a non-intrusive means for real-time temperature and pressure monitoring. This helps prevent equipment failure, improves safety, and optimizes production.

Yes, these sensors are highly durable. They are resistant to electromagnetic interference, radio frequency interference, and can operate in harsh environmental conditions, making them ideal for numerous applications.

Unlike point sensors which measure parameters at a single point, Fiber Optic Distributed Sensors provide continuous monitoring along the entire length of the fiber, offering a complete picture of the conditions.

The data is interpreted by special software that converts changes in the backscattered light signal into meaningful physical parameters like temperature, strain, or acoustics.

With advancements in technology, we can expect better resolution, longer range sensing, and integration of artificial intelligence for advanced data interpretation. They are projected to play a significant role in various industries including smart city applications.

While the initial installation cost might be higher than traditional sensors, their durability, minimal maintenance needs, and continuous monitoring capabilities can provide a significant return on investment in the long run.

Fiber Optic Distributed Sensors are available from various manufacturers specializing in fiber optic technologies. It's recommended to choose a provider with robust customer support and quality assurance for best results.

There are 7 different Fiber Optic Distributed Sensors from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Fiber Optic Distributed Sensors with each other and get an accurate quote based on your needs and specifications.

Explore the innovative realm of Distributed Fiber Optic Sensors; this brief guide highlights their operation, applications, and future potential, underlining their unprecedented precision and versatility.

Introduction: Distributed fiber optic sensors have revolutionized the field of sensing and measurements. They've emerged as an unparalleled technology due to their unique ability to transform the entire optical fiber into a sensor. This feature, akin to embedding thousands of tiny sensors within a single fiber system, leads to high precision, real-time measurements. The cost-effective, lightweight, and flexible nature of optical fibers, coupled with their immunity to electromagnetic interference, make these sensors adaptable, reliable, and efficient.

Working Principle: The underlying principle of distributed fiber optic sensors involves the propagation of light within the optical fiber and its interaction with the surrounding environment. As light travels along the fiber, it experiences changes due to variations in environmental parameters such as temperature, strain, and pressure. This altered light is backscattered, received at the input end, and then analyzed using specialized software. The beauty of this system lies in its high spatial resolution, enabling simultaneous measurements along the entire length of the fiber. This provides a continuous and detailed snapshot of the conditions along the fiber, surpassing the capabilities of conventional point sensors that only provide information at specific locations.

Applications: The diverse applications of distributed fiber optic sensors span various sectors, demonstrating their versatility. In the oil and gas industry, they allow non-intrusive, real-time monitoring of temperature and pressure in pipelines, enhancing safety and operational efficiency. In structural health monitoring, they play a crucial role in ensuring the safety and longevity of infrastructures like bridges, dams, and buildings by providing early warnings of potential failure points. These sensors have also found significant utility in power cable systems for the detection of potential cable faults, and in seismic and acoustic sensing for studying geological activities and underwater communications respectively. Additionally, they're used in a wide range of fields such as geotechnical, medical, military, construction, and scientific research, underlining their adaptability.

Future Perspectives: As technology continues to advance, so too will the capabilities of distributed fiber optic sensors. Future advancements are expected to further enhance their resolution and sensing range, while their integration with artificial intelligence technologies will allow for more sophisticated data interpretation. In the era of smart cities, these sensors could play a fundamental role in creating intelligent and responsive urban environments. For instance, embedding these sensors in city infrastructures could allow for real-time monitoring and proactive maintenance, drastically reducing the risk of failures. While the initial installation cost may be higher than traditional sensors, the durability, minimal maintenance needs, and continuous monitoring capabilities of distributed fiber optic sensors offer a significant return on investment. Consequently, these sensors are not just a technological novelty but a practical tool with far-reaching implications.

Did You know?

The outstanding benefits of distributed fiber optic sensors are rooted in their unique design where the entire fiber operates as the sensor itself. Imagine these systems as thousands of miniscule sensors unified within one compact fiber system. Optical fibers, known for being cost-effective, lightweight, flexible, and impervious to electromagnetic interference, render distributed sensors as highly efficient, adaptable, and stable tools. A standout feature of these sensors is their impressive spatial resolution, facilitating simultaneous measurements along the full stretch of the sensing fiber. This functionality has profound implications in accurately determining parameters such as temperature, pressure, strain, current, and chemical concentration. Distributed fiber optic sensors have found widespread acceptance across numerous industries owing to their exceptional attributes. Fields as diverse as geotechnical, medical, military, construction, scientific research, and more harness the power of these sensors, proving their versatility and the critical role they play in our technologically advanced world.
