Description

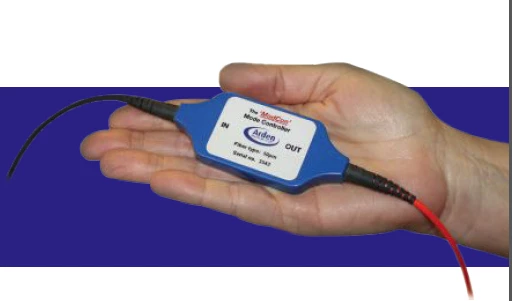

ModCon Mode Controller is an innovative solution designed to enhance the accuracy and reliability of fiber optic measurements. This compact and lightweight module seamlessly integrates with your existing LED or VCSEL light sources, transforming them to deliver consistent Encircled Flux (EF) compliant launch conditions. This ensures that your light source meets the rigorous standards set by IEC 61280-4-1:2009, providing stability and repeatability in your measurements. Ensuring precise measurements in multi-mode fibers is crucial, as the modal condition of the light source can significantly impact results. Traditional measurement tools like OTDRs and LS/PM devices often yield varying results due to differences in the light sources used. The ModCon Mode Controller addresses this issue by standardizing the modal distribution, regardless of the source, thus minimizing uncertainties and enhancing measurement accuracy. By utilizing the ModCon, you can achieve better consistency and agreement between different test data sets, making it an essential tool for any professional seeking to comply with international standards. Each ModCon unit undergoes thorough testing with Arden’s MPX Modal Explorer, guaranteeing that its output meets the necessary standards. For added assurance, a Certificate of Conformance or Test Sheet is available to support your equipment record-keeping needs. The ModCon Mode Controller represents a simple yet effective method for improving measurement reliability in fiber optic testing.
Arden Photonics ModCon Mode Controller
Specifications |
|
|---|---|
| Max Power Throughput : | 10 mW |
| Light Source: | 850 - 1300 nm |
| Mode Control: | 50 - 125 um |
Features
- Encircled Flux Compliant: The ModCon Mode Controller is EF compliant to IEC 61280-4-1, ensuring consistent and repeatable measurements.
- Improves Measurement Repeatability: Designed to enhance the repeatability of measurements in multi-mode fiber tests, reducing uncertainty caused by different light sources.
- Optimized for Key Wavelengths: Specifically optimized for 850nm and 1300nm, making it versatile for various testing applications.
- Compatible with All Multi-mode Fiber Optic Testers: Works seamlessly with any multi-mode fiber optic testing equipment.
- Compact and Lightweight Design: Weighing only 50g, the ModCon is easy to handle and integrate into existing setups.
- Durable Construction: Features a high-strength polymer enclosure for durability and longevity.
- Convenient Cable Lengths: Comes with 1.0m input and output cables, featuring 3mm PVC jackets with Aramid strength members for added durability.
- Low Insertion Loss: Offers an insertion loss of less than 3dB at 850nm for both 50µm and 62.5µm fibers, maintaining signal integrity.
- Maximum Power Throughput: Capable of handling up to 10mW of optical power, suitable for various testing conditions.
- Standards Compliance and Certification: Each unit is rigorously tested to ensure compliance, and certificates of conformance or test sheets are available to support your record-keeping needs.
Applications
- Fiber mode control and test certification
Frequently Asked Questions
The ModCon Mode Controller is a compact and lightweight module that modifies your LED or VCSEL light source to provide repeatable EF compliant launch conditions.
By simply plugging the ModCon into your light source, you will be provided with a stable and consistent EF compliant output that meets IEC 61280-4-1:2009.
The ModCon increases the accuracy of measurements, gives better agreement between test data sets, and is a simple and certifiable method of complying with international standards.
The ModCon is suitable for fiber mode control and test certification.
Yes, the ModCon works with all multi-mode fiber optic testers.
