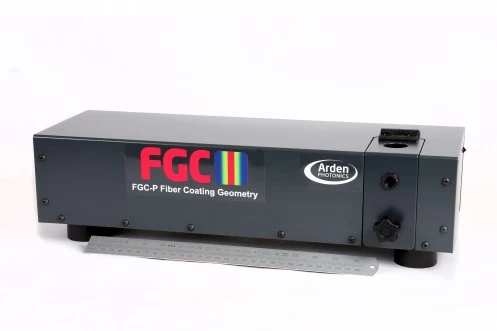

FGC-P Fiber Coating Geometry Measurement System
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The FGC-P Fiber Coating Geometry System is a state-of-the-art solution designed to deliver precise measurements of optical fiber coating geometry. Engineered with a novel liquid cell design, this system is capable of accurately measuring thin fibers with coating diameters ranging from 100 µm to 260 µm. Its robust design ensures reliability and accuracy, making it an essential tool for professionals dealing with standard and specialty fibers.
This fully automated system is user-friendly and provides fast, direct measurements of critical fiber coating geometry parameters. The FGC-P system is capable of analyzing coating diameter, non-circularity, and coating-cladding concentricity with ease. The ability to rotate the fiber up to 36 different radial positions enhances the accuracy of measurements, particularly for coating concentricity and non-circularity. This feature ensures that the system is compliant with industry standards, specifically using the side-view reference test method as described in IEC-60793-1-21.
Manufactured by Arden Photonics Ltd, the FGC-P system is a compact and trustworthy solution for optical fiber professionals. Its sophisticated design and advanced technology make it a valuable addition to any laboratory or production environment where precision and reliability are paramount. With its capability to measure dual layer coatings, the FGC-P system is versatile and adaptable to various fiber types, including single-mode, multi-mode, and polarization-maintaining fibers.
FGC-P Fiber Coating Geometry Measurement System
Specifications |
|
|---|---|
| Accepted Fiber Diameter: | 100 – 260 um |
| Coating Diameter: | 100 - 260 µm |
| Coating Non-circularity: | <0.8% |
| Coating-cladding Concentricity: | <0.8% |
Features
- Novel Liquid Cell Design: Enables measurement of thin fibers down to 60/100 µm, making it suitable for a wide range of fiber types.
- Dual Layer Coating Measurement: Perfect for both standard and specialty fibers, ensuring comprehensive analysis.
- Rotatable Fiber Capability: Fiber can be rotated up to 36 different radial positions, allowing precise measurement of coating concentricity and non-circularity.
- Standards Compliant: Utilizes the side-view reference test method as described in IEC-60793-1-21, ensuring reliable and industry-standard results.
- Compact and Trustworthy: The FGC-P Fiber Coating Geometry System provides a reliable solution for measuring optical fiber coating geometry, accommodating coating diameters from 100 µm to 260 µm.
- Fully Automated System: User-friendly design offers fast, direct measurement of fiber coating geometry parameters such as coating diameter, coating non-circularity, and coating-cladding concentricity.
- High-Resolution Optical System: Features a 1.1-inch CMOS image sensor with 4112 x 3008 pixels resolution for detailed analysis.
- Efficient Measurement Time: Capable of measuring in less than 10 seconds per angular position, enhancing productivity.
- Customizable Angular Positions: Allows for 8 to 36 customizable angular positions to cater to specific measurement needs.
- High Repeatability: Ensures precise measurements with repeatability specifications such as < 0.5 µm for outer coating diameter and < 0.5% for outer coating non-circularity.
- Wide Operating Conditions: Operates efficiently within a temperature range of 10 – 30 °C, adaptable to various environments.
- Convenient Data Interface: Equipped with a USB 3.0 data interface for seamless connectivity and data transfer.
Applications
- Measurement of Thin Fibers: Novel liquid cell design enables measurement of thin fibers down to 60/100 µm.
- Dual Layer Coatings: Measures dual layer coatings – useful for many standard and specialty fibers.
- Rotational Capabilities: Fiber can be rotated up to 36 different radial positions, enabling accurate measurement of coating concentricity and non-circularity.
Frequently Asked Questions
The FGC-P Fiber Coating Geometry System is used for measuring the geometry characteristics of optical fiber coatings.
The FGC-P can measure coating diameter, coating non-circularity, and coating-cladding concentricity.
The FGC-P can handle fibers with a coating diameter of from 100 to 260µm.
The measurement time for each angular position is less than 10 seconds.
The repeatability of the FGC-P is measured using a 125/245 dual acrylate coated MM fiber sample over 12 angular positions without removing from the FGC-P.
