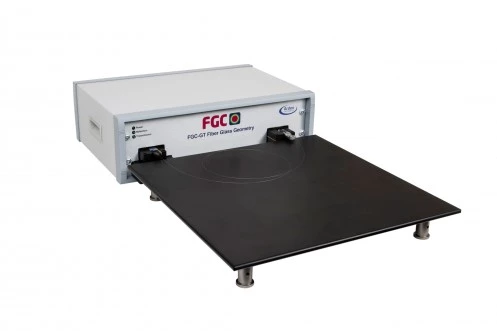

FGC-G Fiber Glass Geometry Measurement System
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The FGC-G Fiber Glass Geometry Measurement System is a state-of-the-art solution designed to provide precise, high-speed automated measurements of optical fiber end-face geometry. This innovative system employs the video grey-scale technique, which is the reference test method described in the standards IEC-60793-1-20 annex B, ensuring that you can rely on its accuracy and standards compliance.
With its compact and robust design, the FGC-G is not only reliable but also ready for production environments. It offers consistent and repeatable fiber geometry measurements in a matter of seconds, making it an ideal choice for both development and manufacturing settings. The system is equipped with an internal LED to ensure consistent and fully filled core launch conditions, enhancing measurement reliability.
The FGC-G comes in two distinct models to cater to different measurement needs. The FGC-GT model is optimized for measuring fibers with a diameter of 125µm, making it suitable for single and multimode telecom fibers as well as specialty fibers. On the other hand, the FGC-GS model can handle fibers with diameters up to 1mm and is specifically designed for measuring specialty fibers such as octagonal and dual-cladding fibers.
Overall, the FGC-G Fiber Glass Geometry Measurement System is a compact and efficient tool that provides direct measurements of crucial fiber geometry parameters, including core diameter, core non-circularity, cladding diameter, cladding non-circularity, and core-to-cladding concentricity. This makes it an invaluable asset for professionals seeking precision and reliability in fiber geometry measurement.

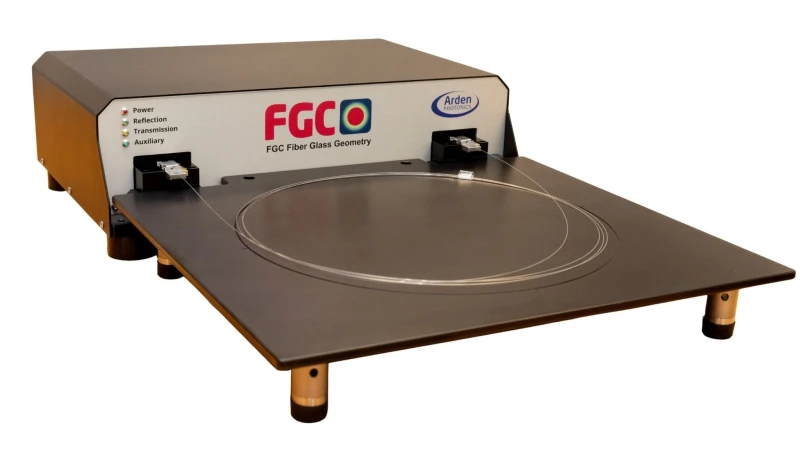

FGC-G Fiber Glass Geometry Measurement System
Specifications |
|
|---|---|
| Accepted Fiber Diameter: | 50 – 1000 um |
| Core Diameter (Single Mode): | < 0.05 µm |
| Core Diameter (Multimode): | < 0.08 µm |
| Cladding Diameter (Single Mode): | < 0.05 µm |
| Cladding Diameter (Multimode): | < 0.05 µm |
| Core Non-Circularity (Single Mode): | < 1.0% |
| Core Non-Circularity (Multimode): | < 0.5% |
| Cladding Non-Circularity: | < 0.1% |
| Core-to-Cladding Concentricity (Single Mode): | < 0.06 µm |
| Core-to-Cladding Concentricity (Multimode): | < 0.05 µm |
| Measurement Time: | < 1 minute (including fiber preparation) |
| Weight: | 11kg (with carry case 33kg) |
| Size: | 0.5 x 0.5 x 0.2 m |
Features
- Special Fiber Measurement: Capable of measuring dual-clad, octagonal, and other special fibers with precision.
- Darkfield Illumination: Provides a clear view of the fiber end-face for accurate analysis.
- Standards Compliant: Ensures accuracy and reliability in measurements, adhering to IEC-60793-1-20 annex B standards.
- Compact and Robust Design: Built for durability and ready for production environments.
- Fast and Consistent Measurements: Achieves repeatable fiber geometry measurements in seconds.
- Traceable Calibration: Offers assurance in measurement accuracy with traceable calibration.
- Versatile Fiber Handling: Compatible with Arden and Fujikura/FITEL/Sumitomo fiber holders.
- Internal LED Illumination: Provides consistent and fully filled core launch conditions for precise measurements.
- High-Speed Automated Measurements: Utilizes video grey-scale technique for direct measurement of fiber geometry parameters.
- Model Variants:
- FGC-GT: Optimized for fibers of 125µm diameter, ideal for single and multimode telecom fibers.
- FGC-GS: Measures fibers up to 1mm diameter, perfect for specialty fibers like octagonal and dual-cladding fibers.
- Precision Specifications:
- Core Diameter: < 0.05 µm (Single Mode), < 0.08 µm (Multimode)
- Cladding Diameter: < 0.05 µm
- Core Non-Circularity: < 1.0% (Single Mode), < 0.5% (Multimode)
- Cladding Non-Circularity: < 0.1%
- Core-to-Cladding Concentricity: < 0.06 µm (Single Mode), < 0.05 µm (Multimode)
- Quick Measurement Time: Less than 1 minute, including fiber preparation.
- Portable Design: Weighs 11kg, with a total of 33kg when including the carry case.
- Compact Size: Dimensions of 0.5 x 0.5 x 0.2 meters.
Applications
- Development and Manufacturing of Telecom Fibers: Ideal for measuring single and multimode telecom fibers.
- Specialty Fiber Measurement: Capable of measuring specialty fibers such as dual-clad and octagonal fibers.
- Production Environments: Compact, robust, and reliable design makes it suitable for production use.
- Standards Compliance: Provides accurate measurements in compliance with standards like IEC-60793-1-20 annex B.
- Repeatable and Consistent Measurements: Ensures consistent fiber geometry measurements in seconds.
- Traceable Calibration: Offers traceable calibration for reliable results.
- Fiber Handling Capability: Compatible with Arden and Fujikura/FITEL/Sumitomo holders.
- Core Launch Conditions: Equipped with an internal LED for consistent and fully filled core launch conditions.
Frequently Asked Questions
The technical specifications of the FGC Fiber Geometry System include measurements for core diameter, cladding diameter, core non-circularity, cladding non-circularity, core-to-cladding concentricity, and more. The system is compact, robust, reliable, and standards compliant.
The FGC fiber geometry systems use the video grey scale technique to provide fast, automated core/cladding geometry measurements.
Yes, the FGC Fiber Geometry System can measure special fibers such as bend insensitive, octagonal, dual-clad, etc.
The measurement time for the FGC Fiber Geometry System is less than 1 minute (including fiber preparation).
The FGC Fiber Geometry System can measure up to 1000µm nominal cladding diameter.
