GCK 800B Portable Fiber End-face Inspection Probe
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
GMCH TECH (SHENZHEN) CO.,LTD -
On FindLight:
since 2018
Description
GMCH has established itself as a leader in the field of fiber optic technology, delivering reliable and high-quality products that meet the demands of various industries. Our reputation for excellence is built on years of innovation and commitment to customer satisfaction. We are trusted by numerous industry leaders and professionals who rely on our products for their critical operations. Our commitment to quality and reliability has made us a preferred choice in the fiber optics market.

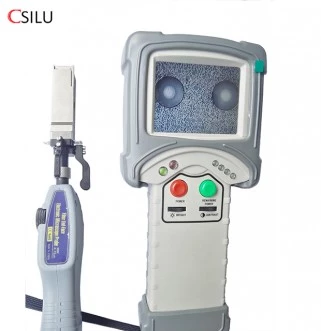

Introducing the GCK 800 Series Portable Fiber End-face Inspection Probe, a cutting-edge solution designed to meet the rigorous demands of fiber optic inspection. This series includes the GCK-800A, GCK-800B, GCK-800C, and the dual-mode GCK-800D probes, each crafted to provide unparalleled precision and ease of use. With a focus on delivering high-definition imaging and flexible operation modes, these probes are an essential tool for professionals in the field of fiber optics. Each probe in the GCK 800 Series is equipped with a high-definition camera capable of a maximum resolution of less than 0.75 micrometers, ensuring that even the smallest details are captured with clarity. The adjustable light source and flexible operation modes make it easy to adapt to various inspection needs, while the long-lasting lithium battery ensures that the probe can operate for more than 8 hours on a single charge. These features make the GCK 800 Series a versatile and reliable choice for fiber end-face inspection.
Professionals across multiple industries, including telecommunications, aerospace, and fiber engineering, trust GMCH's GCK 800 Series for its unparalleled performance and reliability. Whether in a patch-code manufacturing plant, a passive device and CWDM module factory, or in fiber maintenance for FTTX/FTTH applications, these probes provide the precision and durability needed to ensure optimal fiber optic performance.

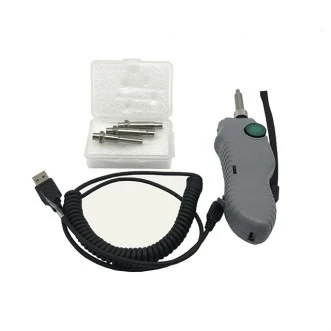

GCK 800B Portable Fiber End-face Inspection Probe
Specifications |
|
|---|---|
| Accepted Fiber Diameter: | 1 – 400 um |
| Application: | SC/FC/ST/LC/MU/MTP/MPO/E2000 ect. fiber optical connectors |
| Resolution: | <1μm |
| Focus: | manual |
| Video Signal System: | PAL |
| Shell Color: | Silver-Gray |
| Operating Voltage / Current: | DC 5 V±0.2 V / 370mA |
| Net Weight: | 110 g |
| Probe Dimension: | 180mm*22mm*56mm (L*W*H) |
Features
- HD Camera: Max resolution less than 0.75μm for precise inspection.
- Adjustable Light-source: Allows for optimal visibility during inspections.
- Flexible Operation Mode: Easily expandable to suit various needs.
- Long-lasting Lithium Battery: Provides power for more than 8 hours of continuous use.
- Comprehensive Inspection Support: Compatible with a complete range of inspection fixtures.
Applications
- Single & Multi-Fiber Endface Inspection: Covers wide connector standards
- Patch Cord Production & QA Lines: Ensures clean ferrules before assembly
- Passive Optical Device Manufacturing: Critical for WDM/CWDM/QSFP inspection
- Field Engineering (FTTX/FTTH): Portable tool for on-site maintenance
- Research Labs & Test Environments: High-resolution imaging for analysis
- Aerospace & Defense Fiber Systems: Precision inspection in mission-critical systems
Frequently Asked Questions
The model number of the portable fiber end-face inspection probe is GCK-800A.
The GCK-800A probe can inspect special adapters in fiber connector's end-face such like sc, fc, st, lc, mu, E2000, MTP, MPO and MT ferrules PC & APC type, and fiber optic module's fiber end-face such as SFP, QSFP, WDM, CWDM etc.
The max resolution that can be reached with the GCK-800A probe is 0.75um on fiber scratch and dot inspection.
The high capacity lithium battery of HDM35 portable monitor can support the longest (8-hours) inspection time.
The weight of the GCK-800A probe is 110g and the dimension is 180*22*56mm (L x W x H).
