Description
XQ5110 is a single mode high-stability test light source which developed by OSCOM Technology. It use DFB / LD laser as its emission source, and equipped with the technology of automatic temperature control (ATC), automatic power control( APC) and RS232C communication control, etc.

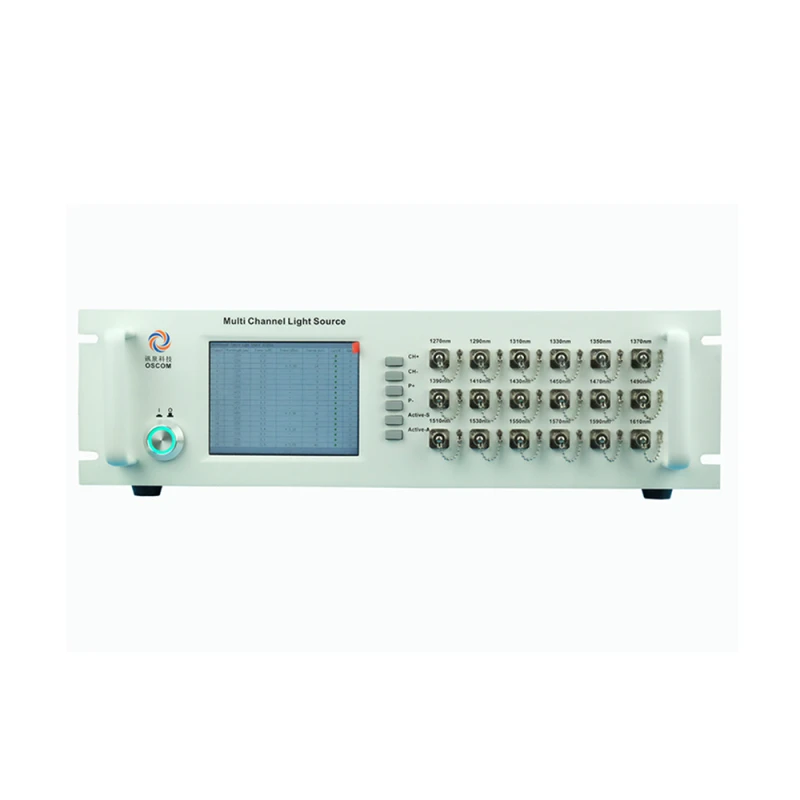

It can provide 1/2/3/4-channel benchtop light source, and typical application wavelengths are 1310nm, 1490nm, 1550nm, 1625nm, 1650nm, etc. Besides, depolarization processing can be added as needed to provide low polarization output.
XQ5110 is stable, reliable, easy to operate and very suitable for optical device testing and other applications.

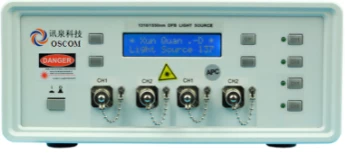

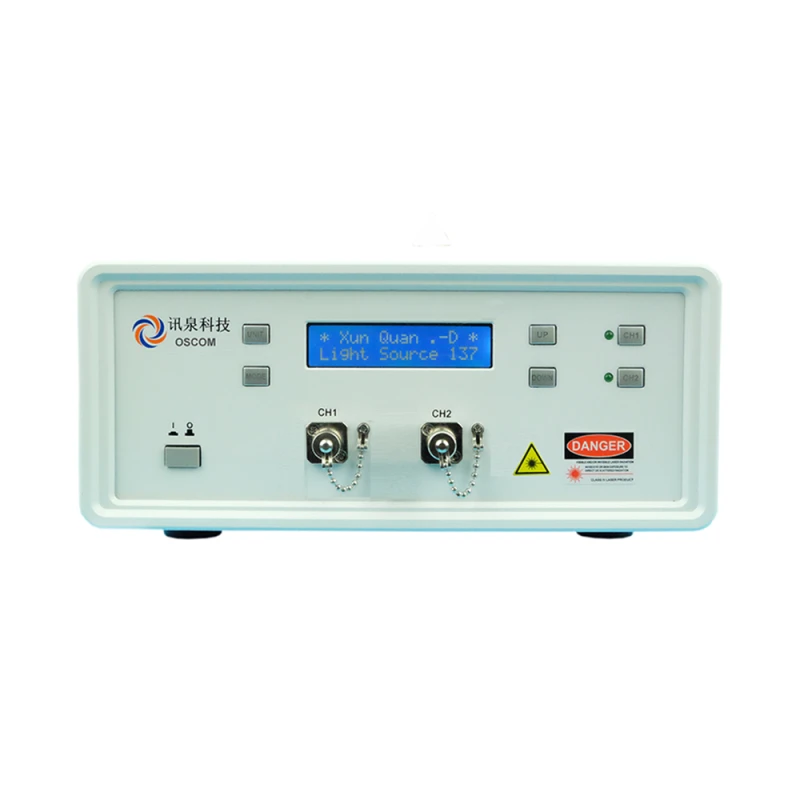

OSCOM TECHNOLOGY - Single Mode Test Light Source
Specifications
| Light Source Type: | 1310/1490/1550/1625/1650 nm |
|---|---|
| Light Emitting Device: | DFB / LD |
| Optical Output Power（dBm): | ≥3 dBm |
| Fiber Type: | Single mode SMF-28e |
| Short-term Stability: | ＜±0.005dB(15 minute） |
| Long-term Stability: | ＜±0.03dB(8 hour） |
| Optical Fiber Connector: | FC/PC、FC/UPC、FC/APC、ST/APC、SC/APC |
Download Data Sheet
Features
- High Stability: The XQ5110 Single Mode Test Light Source is designed for high stability, making it ideal for precise optical device testing.
- Advanced Emission Source: Utilizes DFB/LD laser as its emission source, ensuring reliable performance.
- Automatic Control Technologies: Integrates Automatic Temperature Control (ATC), Automatic Power Control (APC), and RS232C communication control for enhanced functionality.
- Multiple Wavelength Channels: Offers 1/2/3/4-channel benchtop light sources with typical application wavelengths of 1310nm, 1490nm, 1550nm, 1625nm, and 1650nm.
- Depolarization Processing: Optional depolarization processing for low polarization output.
- Wide Applied Range: Suitable for optical fiber communication tests, sensing tests, device production, module production, system integration, and automatic optical test system construction.
- Configuration and Type Selection: Various models and configurations available to suit specific needs, e.g., XQ5110-D-1310-3-FC/APC.
Applications
- Optical fiber communication test
- Optical fiber sensing test
- Optical fiber device production and test
- Optical fiber module production test
- Optical fiber communication system integration
- Automatic optical test system construction
Frequently Asked Questions
What is the XQ5110 Single Mode Test Light Source used for?
The XQ5110 Single Mode Test Light Source is used for optical device testing and other applications in the field of optical fiber communication.
What are the typical application wavelengths supported by the XQ5110?
The XQ5110 supports typical application wavelengths of 1310nm, 1490nm, 1550nm, 1625nm, and 1650nm.
Does the XQ5110 provide low polarization output?
Yes, depolarization processing can be added as needed to provide low polarization output.
What are the communication interfaces available for the XQ5110?
The XQ5110 has RS232C and USB interfaces for communication.
What is the working temperature range of the XQ5110?
The XQ5110 operates within a temperature range of 0-40 degrees Celsius.
