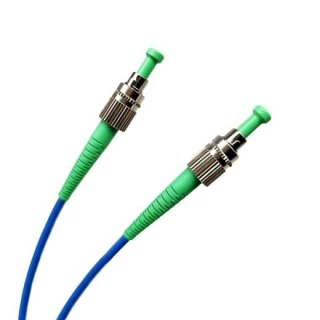

Polarization Maintaining Fiber Optic Patch Cord PM-S350-XP FC/APC-FC/APC Connector 3m Long

• High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
• Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
• High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.
• Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.

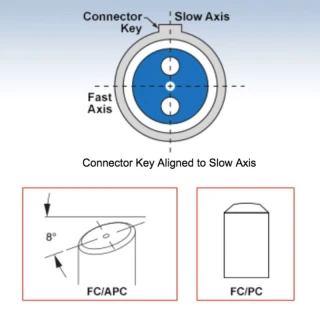

• Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
• Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
• Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
• High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
• Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
• Quality Fiber Types: PM-S350-HP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications of Polarization Maintaining Fiber Optic Patch Cords

• Coherent Optical Communications: Used in coherent transmission systems where stable polarization is critical for high-speed data transfer, phase-sensitive detection, and long-haul fiber optic networks.
• Fiber Optic Gyroscopes: Ideal for fiber optic gyroscope systems requiring stable polarization states for accurate rotation sensing, inertial navigation, aerospace, defense, and industrial positioning applications.
• EDFA Systems: Suitable for erbium-doped fiber amplifiers and other optical amplification modules where polarization stability helps improve gain performance and signal quality.
• High-Speed Optical Transmission Devices: Used in high-speed telecom and datacom equipment, including 10G, 40G, 100G, and advanced optical transmission platforms requiring low insertion loss and high extinction ratio.
• External Optical Modulators: Commonly used with lithium niobate modulators, phase modulators, intensity modulators, and electro-optic modulation systems that require defined input polarization.
• Integrated Optics and Photonic Circuits: Suitable for connecting polarization-sensitive integrated optical devices, photonic integrated circuits, waveguide devices, and laboratory optical modules.
• Interferometric Fiber Sensors: Used in interferometric sensing systems such as Mach-Zehnder, Michelson, Sagnac, and Fabry-Perot interferometers where polarization stability supports accurate measurement.
• Quantum Optics and Quantum Communication: Applied in quantum key distribution, single-photon experiments, entangled photon systems, and polarization-sensitive quantum photonics research.
• Laser Diode Coupling: Used for coupling polarized laser output into fiber systems while maintaining the state of polarization for stable optical performance.
• Polarization-Sensitive Test and Measurement: Suitable for optical laboratories, fiber characterization setups, polarization extinction ratio testing, return loss measurement, and component qualification.
• Optical Switching Systems: Used in polarization-sensitive optical switches, fiber optic switching modules, reconfigurable optical networks, and automated test systems.
• Fiber Laser Systems: Applied in seed laser delivery, pump laser coupling, pulsed fiber lasers, ultrafast lasers, and polarization-maintained fiber laser architectures.
• PM Fiber Amplifiers: Suitable for polarization maintaining fiber amplifier modules where low loss and stable polarization alignment are required.
• Optical Sensors: Used in precision fiber optic sensing applications including current sensors, acoustic sensors, strain sensors, temperature sensors, pressure sensors, and distributed sensing systems.
• LiDAR and Remote Sensing: Suitable for polarization-sensitive LiDAR systems, coherent LiDAR, Doppler LiDAR, wind sensing, ranging systems, and remote measurement platforms.
• Biomedical and Medical Laser Systems: Used in medical imaging, optical coherence tomography, laser delivery systems, spectroscopy, and other biomedical optical instruments requiring stable polarization.
• OCT Systems: Applied in optical coherence tomography systems where polarization control can improve imaging stability and system repeatability.
• Spectroscopy and Scientific Research: Used in Raman spectroscopy, absorption spectroscopy, fluorescence systems, nonlinear optics experiments, and university or industrial photonics laboratories.
• Polarization Controllers and Polarization Modules: Suitable for connecting polarization-maintaining components such as polarizers, polarization beam combiners, polarization beam splitters, and PM couplers.
• WDM and DWDM Optical Networks: Used in wavelength division multiplexing systems where polarization stability can support reliable signal routing, monitoring, and amplification.
• Microwave Photonics: Applied in RF-over-fiber systems, photonic signal processing, optical frequency distribution, and phase-stable microwave photonic links.
• Precision Timing and Frequency Transfer: Used in optical frequency combs, timing distribution systems, atomic clock links, and metrology applications requiring stable optical polarization.
• Aerospace and Defense Photonics: Suitable for rugged optical systems, navigation systems, sensing platforms, secure communication systems, and polarization-sensitive defense applications.
• Semiconductor and Indus
