Description

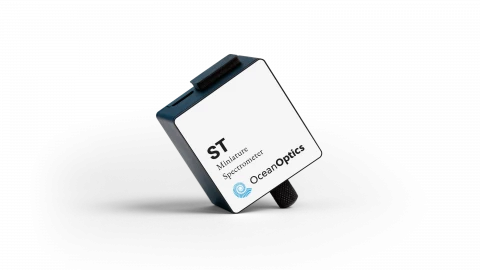

The Ocean ST Microspectrometer is an ultra-compact (42 × 40 × 26 mm), high-SNR (up to 2250:1) UV-Vis-NIR instrument covering 185–1085 nm. With USB-C connectivity, superior thermal stability, and the OceanDirect SDK, it’s ideal for DNA absorbance, LED characterization, and OEM integration.
Thismicrospectrometer is a compact yet powerful solution for those seeking exceptional spectral performance in a small package. Despite its ultra-compact footprint, the Ocean ST delivers full spectral analysis with a performance level comparable to larger and more expensive spectrometers. This makes it an ideal choice for everyday laboratory use as well as integration into devices and setups where space is at a premium.
Designed for versatility, the Ocean ST offers options for UV, visible, and shortwave NIR wavelength coverage, providing great flexibility for a wide range of applications. Its replaceable slit design allows users to optimize optical resolution and throughput, catering to both light-rich and low-light applications. This adaptability ensures that users can achieve the best possible results for their specific needs.
Compatibility with Ocean Optics light sources, accessories, and OceanView software further enhances the utility of the Ocean ST microspectrometer. Its rugged design, thermal stability, and unit-to-unit reproducibility make it an attractive option for embedding into other instrumentation, as well as for use in inline process operations and at-line quality control stations.
Each Ocean ST microspectrometer comes with OceanDirect, a comprehensive Software Developers Kit (SDK) that includes an Application Programming Interface (API). This powerful tool allows users to optimize spectrometer performance and access critical data for analysis, adding significant value to the overall package.
Ocean ST Compact UV-Vis-NIR Microspectrometer – 185–1085 nm, High SNR, USB-C, OEM Ready
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 185 – 1085 nm |
| Resolution: | 2.2 nm |
| Minimum Scan Time: | 0.0038 sec |
| Wavelength Range: | 185-650 nm (UV-Vis); 350-810 nm (Vis-NIR); 645-1085 nm (NIR) |
| Optical Resolution: | 2.2 nm (FWHM) |
| Signal To Noise Ratio: | 190:1 (single scan @ 10 ms); 2250:1 (1 second average, non-buffered) |
| Integration Time: | 3.8 ms-6 s |
| Dynamic Range: | 1000:1 (single scan) |
| Stray Light: | 2.0 AU |
| Scan Rate: | 160 Hz (non-buffered) |
| A/D Resolution: | 14-bit |
| Thermal Wavelength Drift: | 0.05 pixels/° C |
| Interfaces: | USB, RS-232 |
| Connector: | USB Type-C, Samtec™ TFM-108-02-L-DH |
| Dimensions: | 42.1 mm (w) x 40.3 mm (d) x 26.6 mm (h) |
| Weight: | 70.4 g |
Features
Key Features:
- Wavelength coverage: UV (185–400 nm), Vis (350–1000 nm), NIR (645–1085 nm)
- Ultra-compact footprint: 42 × 40 × 26 mm, 70 g
- High SNR: Up to 2250:1 (in high-speed averaging mode)
- Connectivity: USB-C interface for fast, reliable data transfer
- Thermal stability: Minimal drift for long-term measurement accuracy
- Software & integration: Cross-platform OceanDirect SDK with API access for custom development
- OEM-friendly: Ideal for integration into portable and handheld devices
Applications
Applications:
- DNA and RNA absorbance assays
- LED color and intensity measurement
- Water quality and environmental monitoring
- Thin film thickness and uniformity analysis
- OEM integration into custom analytical instruments
- General UV-Vis-NIR spectroscopy for research and industry
Why Choose the Ocean ST Microspectrometer?
With its compact form factor, broad spectral range, and high signal fidelity, the Ocean ST is perfect for engineers, researchers, and OEM developers seeking portable, reliable, and easy-to-integrate spectroscopy solutions. Whether in the lab or the field, it delivers precision where space and stability matter most.
Frequently Asked Questions
The Ocean ST is a powerful microspectrometer that provides excellent UV response, high-speed spectral acquisition, and high signal to noise ratio performance in an ultra-compact footprint. It offers full spectral analysis comparable to larger and more expensive spectrometers.
The Ocean ST microspectrometer covers the following wavelength ranges: 185-650 nm (UV-Vis), 350-810 nm (Vis-NIR), and 645-1085 nm (NIR).
The Ocean ST is ideal for everyday lab use and integration into other devices and setups where space is limited. Applications range from DNA absorbance to color characterization.
Key features include UV, visible, and shortwave NIR wavelength coverage, replaceable slit design for optimizing optical resolution and throughput, compatibility with Ocean Optics components and OceanView software, and a rugged design with thermal stability and unit-to-unit reproducibility.
The replaceable slit design allows users to choose a narrow slit width for light-rich applications where resolution is most important, or a wider entrance slit for low-light applications to allow more light into the spectrometer.
OceanDirect is a powerful, cross-platform Software Developers Kit (SDK) with an Application Programming Interface (API) included with each Ocean ST microspectrometer. It provides a library of functions to optimize spectrometer performance and access critical data for analysis.
The Ocean ST microspectrometer has dimensions of 42.1 mm (width) x 40.3 mm (depth) x 26.6 mm (height) and weighs 70.4 grams.
