Description

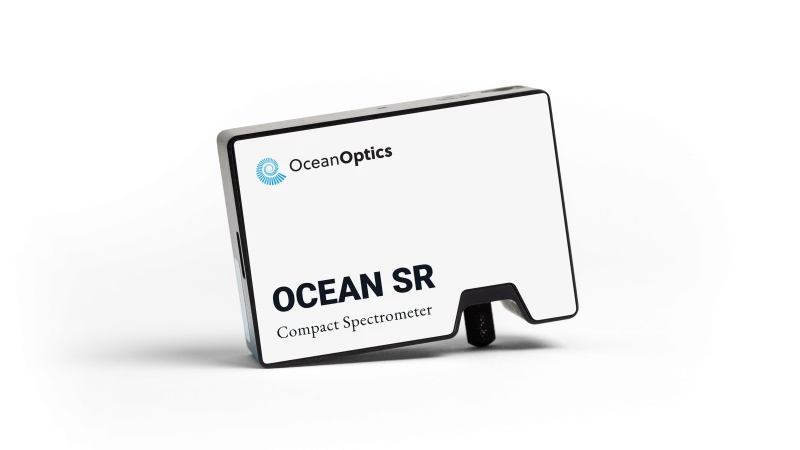

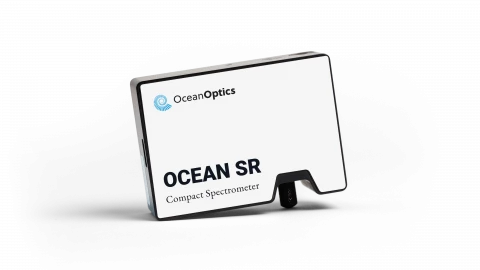

Ocean SR4 Spectrometer Overview
The Ocean SR4 is a high-resolution spectrometer built for critical spectral analysis across UV, visible, and near-infrared ranges. Despite its compact dimensions (~88.1 × 63.5 × 31.45 mm, 275 g), it packs impressive optics and flexibility:
- High SNR up to 3000:1 (High Speed Averaging Mode) and low stray light (~2.3 AU) ensure clean spectral data.
- Multiple slit sizes (5 to 200 µm) let you optimize resolution vs. throughput for various applications.
- Versatile interfaces including USB-C, RS-232, SMA, and 16-pin Samtec TFM ensure seamless integration.
- OceanDirect SDK with API and trigger modes (e.g., synchronized acquisition) unlock automation and custom workflows.
- Built for reliability, it boasts superior thermal wavelength stability and is compatible with OceanView software for intuitive control.
Perfect for high-resolution tasks like emission line detection, plasma diagnostics, and reflectance analysis, the SR4 brings lab-level precision to compact setups.
The Ocean SR4 Spectrometer is a versatile and high-resolution instrument designed for precise spectral analysis across the UV-visible-shortwave NIR range. Anchored by a robust 3648-element CCD-array detector, this spectrometer delivers exceptional signal-to-noise ratio (SNR) performance and high-speed spectral acquisition, making it suitable for various applications in both industrial and laboratory settings. Its strong thermal wavelength stability and low stray light performance ensure reliable, reproducible results even in challenging industrial environments.
Compact and highly configurable, the SR4 spectrometer offers models covering different wavelength ranges and entrance slit options to suit various analytical needs. It is compatible with Ocean Optics light sources and accessories, making it an adaptable tool for applications such as measuring spectral peaks in plasmas and emission sources or detecting subtle changes in absorbance in biological samples like DNA and proteins.
Ocean SR4 Compact High-Resolution UV-Vis-NIR Spectrometer
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 190 – 1100 nm |
| Resolution: | 0.6 nm |
| Minimum Scan Time: | 0.0038 sec |
| Wavelength Range: | ~190-1100 nm |
| Optical Resolution (w/25 µm Slit): | ~0.60-2.03 |
| Dynamic Range (Single Scan): | 1300:1 |
| Integration Time (min.): | 3.8 ms-10 s |
| Signal-to-noise Ratio: | 3000:1 |
| Stray Light: | 2.3 AU |
| Scan Rate: | 74 scans/second |
| Thermal Stability: | 0.05 pixels/° C |
| Interfaces: | USB, RS-232, Ethernet |
| Connector: | USB Type-C, Samtec™ TFM-108-02-L-DH, RJ45 |
| A/D Resolution: | 16-bit |
| High Speed Average Mode: | Yes |
| Dimensions: | 88.1 mm x 63.5 mm x 31.4 mm |
| Weight: | 254 g |
Features
Key Features & Benefits
- Broad Wavelength Range: 220–1050 nm (UV-Vis-NIR) for versatile spectral coverage.
- High Optical Resolution: Achievable down to ~0.42 nm (config-dependent).
- Exceptional SNR: Up to 3000:1 with HSAM—ensures clear signals even in low-light.
- Compact & Lightweight: ~88 × 63.5 × 31.45 mm, ~275 g — ideal for OEM integration and portable use.
- Slit Options Variety: Choose from 5, 10, 25, 50, 100, and 200 μm to balance resolution and sensitivity.
- Flexible Interfaces: USB-C, RS-232, SMA, and Samtec TFM connectors support custom systems.
- Advanced Control: OceanDirect SDK and trigger modes for automated and synchronized operation.
- Thermal Stability & Low Noise: Ensures accurate, stable readings across conditions.
Applications
- Emission Line Analysis – Ideal for plasma and atomic emission monitoring, where high resolution is critical.
- Absorbance & Reflectance Spectroscopy – For precise thin-film, sample, and material characterization.
- Reflectance & Color Measurement – Quality control in materials like coatings, paints, and textiles.
- Chemical & Biological Assays – Detect subtle absorbance changes in DNA, proteins, and other biomolecules
- OEM Integration – Engineered for use in custom instruments, handheld analyzers, and automated systems.
- Industrial Monitoring & Inline Analysis – Built tough for high-volume, real-time production environments.
Frequently Asked Questions
The SR4 is a high-resolution spectrometer designed for high-speed spectral acquisition with excellent signal-to-noise ratio performance, suitable for diverse applications across the UV-visible-shortwave NIR range.
The SR4 Spectrometer covers a wavelength range from approximately 190-1100 nm, depending on the configuration.
The SR4 Spectrometer is fully compatible with OceanView spectroscopy software and comes with OceanDirect, a cross-platform Software Developers Kit (SDK) with an API.
The SR4 Spectrometer has dimensions of 88.1 mm x 63.5 mm x 31.4 mm and weighs 254 grams.
The High Speed Averaging Mode enhances the signal-to-noise ratio per unit time, promoting higher quality spectra and more accurate results.
The SR4 Spectrometer offers interfaces including USB, RS-232, and Ethernet, with connectors such as USB Type-C, Samtec™ TFM-108-02-L-DH, and RJ45.
The SR4 Spectrometer is suitable for applications such as measuring distinct spectral peaks within plasmas and emission sources, and detecting subtle changes in absorbance in DNA, proteins, and other biological samples.
