Description
I-MON Interrogation Monitors are cutting-edge solutions designed specifically for Fiber Bragg Grating (FBG) sensor systems. These high-resolution spectrometers are ideally suited for a wide array of FBG sensing applications, offering unparalleled performance in spectrum monitoring. The I-MON 256/512 USB models deliver kHz spectrum monitoring capabilities, ensuring precise and reliable measurements across a broad wavelength range. This makes them the perfect choice for applications requiring the monitoring of a large number of FBG sensors with high sensitivity, even at very low light levels.

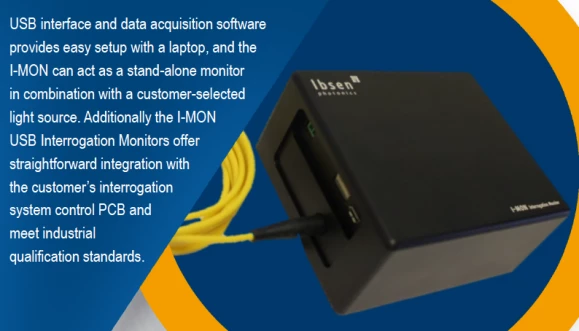

Featuring a convenient USB interface and comprehensive data acquisition software, the I-MON Interrogation Monitors provide an effortless setup with any laptop, enabling users to employ them as stand-alone monitors when paired with a suitable light source. These monitors are designed for straightforward integration with existing interrogation system control PCBs, meeting rigorous industrial qualification standards. This makes them an excellent choice for both standalone and OEM interrogation monitor modules.
The I-MON USB Interrogation Monitors are built on patented high-resolution spectrometer technology, utilizing Ibsen’s fused silica transmission gratings. This advanced technology spatially splits the wavelength spectrum, allowing for parallel processing of individual FBG sensor peaks. These peaks are precisely measured by a diode array, with embedded electronics providing a seamless USB interface. The included LabVIEW-based software ensures plug-and-play operation, while driver software packages and DLL files enable users to develop custom measurement applications, facilitating OEM integration.
I-MON USB Interrogation Monitors I-MON 256 USB
Specifications |
|
|---|---|
| Wavelength Range: | 1525 – 1570 nm |
| Wavelength Fit Resolution: | 0.5 pm |
| Wavelenght Linearity: | 5 pm |
| Dynamic Range: | 30 dB |
Features
- High Measurement Frequency: Achieve precise readings with a frequency of up to 6 kHz.
- Broad Wavelength Ranges: Supports a wide wavelength range, ensuring compatibility with numerous FBG sensors.
- High Resolution: Offers wavelength fit resolution of less than 0.5 pm for accurate measurements.
- Large Dynamic Range: Provides a dynamic range of 30 dB, suitable for various sensing applications.
- Compact Size: Designed with a small footprint of 110 x 94 x 49 mm, ideal for limited space environments.
- No Moving Parts: Ensures reliability and longevity with a robust, solid-state design.
- USB Interface: Easy setup and integration with USB 2.0, compatible with laptops and existing systems.
- High Sensitivity: Maintains high resolution even at very low light levels, with an input optical power range of -70 to -22 dBm.
- Flexible Applications: Suitable for vibration analysis, temperature measurements, pressure monitoring, and strain measurements.
- LabVIEW Software: Includes LabVIEW-based software for plug-and-play operation, with driver packages for OEM integration.
- Industrial Qualification Standards: Meets rigorous industrial standards for reliability and performance.
Applications
- Vibration Analysis: Enables high-frequency spectral monitoring for structural health and vibration diagnostics.
- Temperature Measurements: Ideal for temperature sensing in industrial and research environments.
- Pressure Monitoring: Supports precise pressure variation detection using FBG sensors.
- Strain Measurements: Facilitates accurate strain analysis in mechanical and structural components.
- OEM FBG Interrogation Systems: Designed for integration into advanced sensing system architectures.
Frequently Asked Questions
The I-MON 256/512 USB Interrogation Monitors are used for kHz spectrum monitoring of Fiber Bragg Grating (FBG) sensors, and are ideally suited for a broad range of FBG sensing applications such as vibration analysis, temperature measurements, pressure monitoring, and strain measurements.
The I-MON USB Interrogation Monitor offers high measurement frequency, broad wavelength ranges, high resolution, large dynamic range, compact size, and no moving parts.
The wavelength range of the I-MON 256 USB is 1525 - 1570 nm.
The maximum number of FBG's and spacing that can be measured by the I-MON 512 USB is more than 70 at 1000 pm or 1200 pm.
The temperature range for the I-MON USB Interrogation Monitor is 0 – 50 Degree C.
