Description
The I-MON High Speed Interrogation Monitors are cutting-edge spectrometers tailored for the rigorous demands of Fiber Bragg Grating (FBG) sensor systems. These devices are optimized for high-speed, high-resolution spectrum monitoring, specifically within the 1550 nm wavelength range. With line scan rates reaching up to 35 kHz, the I-MON 256/512 models deliver unparalleled performance, making them an ideal choice for applications requiring precise and rapid data collection.

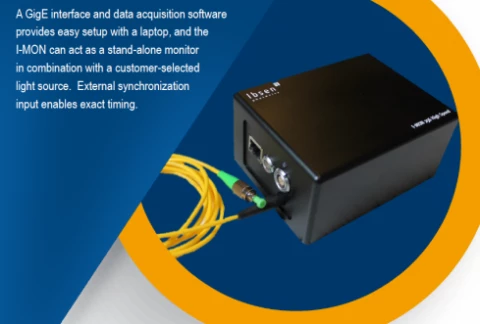

One of the standout features of the I-MON Interrogation Monitors is their ability to provide high-resolution measurements across a broad wavelength range. This capability ensures accurate interrogation of a large number of FBG sensors, which is crucial for complex monitoring tasks. The integration of a GigE interface, coupled with sophisticated data acquisition software, facilitates seamless setup with a laptop, transforming the I-MON into a versatile stand-alone monitor when paired with a user-selected light source. Additionally, the external synchronization input feature allows for precise timing, enhancing the accuracy and reliability of the measurements.
At the heart of the I-MON technology is Ibsen's patented high-resolution spectrometer technology, which employs fused silica transmission gratings. This innovative design enables the spatial splitting of the wavelength spectrum, allowing for the parallel processing of individual FBG sensor peaks. These peaks are captured by a diode array, and the embedded electronics provide an Ethernet interface for smooth data transmission. With the included LabVIEW-based software, users can enjoy plug-and-play operation, simplifying the integration process and ensuring that the I-MON High Speed Interrogation Monitors meet the diverse needs of their applications.
I-MON High Speed Interrogation Monitors I-MON 256 HS
Specifications |
|
|---|---|
| Wavelength Range: | 1525 – 1570 nm |
| Wavelength Fit Resolution: | 0.5 pm |
| Wavelenght Linearity: | 5 pm |
| Dynamic Range: | 30 dB |
Features
- High Measurement Frequency: Achieve spectrum monitoring at line scan rates up to 35 kHz, ideal for demanding FBG sensing systems.
- Broad Wavelength Ranges: Supports wavelength ranges from 1525 to 1595 nm, allowing for versatile applications.
- High Resolution: Offers <0.5 pm wavelength fit resolution, ensuring precise measurements.
- Large Dynamic Range: Provides a dynamic range of 30 dB, accommodating various measurement conditions.
- Compact Size: The monitor measures 124 x 94 x 59 mm, making it suitable for space-constrained environments.
- No Moving Parts: Ensures reliability and durability with a design that eliminates moving components.
- GigE Interface: Facilitates easy setup and data acquisition with a laptop, offering seamless integration.
- External Synchronization: Input enables precise timing for accurate measurements.
- Temperature Range: Operates efficiently within 0 – 50 Degree C, ensuring versatility across environments.
- Applications: Suitable for vibration analysis, temperature measurements, pressure monitoring, and strain measurements.
- Stand-Alone or OEM Modules: Can function independently or as part of OEM interrogation monitor modules.
Applications
- Vibration Analysis: Real-time monitoring of structural dynamics
- Temperature Measurements: Accurate thermal sensing with FBG sensors
- Pressure Monitoring: High-resolution pressure detection in industrial systems
- Strain Measurements: Precise strain mapping for material testing and structural health
Frequently Asked Questions
The wavelength range of the I-MON 256/512 High Speed Interrogation Monitors is 1525 - 1570 nm and 1510 – 1595 nm respectively.
The I-MON 256/512 High Speed Interrogation Monitors can measure more than 37 and 70 FBG sensors respectively at 1200 pm spacing.
The I-MON 256/512 High Speed Interrogation Monitors have a maximum measurement frequency of 35 kHz and 17 kHz respectively.
The power supply requirement for the I-MON 256/512 High Speed Interrogation Monitors is 5 VDC, 3A.
The I-MON 256/512 High Speed Interrogation Monitors can be used for vibration analysis, temperature measurements, pressure monitoring, and strain measurements.
