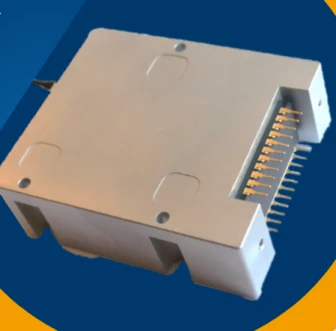

I-MON OEM Interrogation Monitors I-MON 256 OEM
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Denmark
-
Sold by:
-
On FindLight:
since 2018
Description
The I-MON series of Interrogation Monitors, designed for Fiber Bragg Grating (FBG) sensor systems, represents a cutting-edge solution for OEM integrators. These monitors, available in the I-MON 256 and I-MON 512 models, are engineered to deliver real-time spectrum monitoring within the 1550 nm wavelength range. With impressive line scan rates of up to 35 kHz, these monitors offer unparalleled precision and efficiency. The high spectrometer resolution, paired with a broad wavelength range, ensures that a large number of FBG sensors can be measured with exceptional accuracy.
One of the standout features of the I-MON series is its direct interface to the diode array detector, providing a cost-effective solution for OEM integrators looking to build comprehensive FBG sensing systems. This integration capability not only reduces overall system costs but also simplifies the development process, allowing for seamless incorporation into existing systems. The compact size and absence of moving parts further enhance the reliability and durability of these interrogation monitors, making them an ideal choice for a wide range of applications.
The I-MON Interrogation Monitors leverage patented high-resolution spectrometer technology developed by Ibsen Photonics. Utilizing fused silica transmission gratings, the I-MON spatially splits the wavelength spectrum, enabling parallel processing of individual FBG sensor peaks. These peaks are accurately measured by a diode array, which can be easily interfaced with the customer's own electronics. This advanced technology ensures precise and reliable measurements, making the I-MON series a preferred choice for OEM integrators seeking high-performance solutions for FBG sensing systems.
I-MON OEM Interrogation Monitors I-MON 256 OEM
Specifications |
|
|---|---|
| Wavelength Range: | 1525 – 1570 nm |
| Wavelength Fit Resolution: | 0.5 pm |
| Wavelenght Linearity: | 5 pm |
| Dynamic Range: | 30 dB |
Features
- High Measurement Frequency: Supports line scan rates up to 35 kHz for real-time spectrum monitoring.
- Broad Wavelength Ranges: Covers 1525 - 1570 nm for I-MON 256 OEM and 1510 – 1595 nm for I-MON 512 OEM, allowing measurement of a large number of FBG sensors.
- High Resolution: Offers <0.5 pm wavelength fit resolution for precise measurements.
- Large Dynamic Range: Provides a dynamic range of 30 dB, accommodating various optical power levels.
- Compact Size: Designed with dimensions of 21 x 50 x 66 mm for I-MON 256 OEM and 23 x 58 x 71 mm for I-MON 512 OEM.
- No Moving Parts: Ensures reliability and longevity with a stable, solid-state design.
- Direct Interface: Connects directly to a 256/512 element InGaAs detector, offering a cost-efficient solution for OEM integrators.
- Temperature Range: Operates effectively within 0 – 70 Degree C, with improved wavelength accuracy through temperature control or correction.
- Developer’s Kit Available: Includes electronics and software for plug-and-play operation, facilitating easy integration and development.
Applications
- Vibration Analysis: Enables high-speed spectral monitoring for structural health and vibration diagnostics.
- Temperature Measurements: Ideal for precision temperature sensing in industrial and research systems.
- Pressure Monitoring: Facilitates accurate pressure variation detection using FBG sensors.
- Strain Measurements: Supports detailed strain analysis in mechanical, civil, and aerospace structures.
- OEM FBG Interrogation Systems: Designed for seamless integration into custom sensing architectures.
