Description
Meadowlark Optics is pleased to present our Ultra-Thin Waveplates. Our proprietary polymer provides high retardance accuracy in a cost-effective product which can be provided in almost any configuration and quantity.
Manufactured in-house for wavelengths between 400 and 1550 nm, this retarder is ideal for applications requiring a high-precision, thin, and cost-effective solution. We are also able to tune the retardance to your Angle of Incidence to optimize performance. AR coatings are available on a special-order basis. Standard shapes and retardance values are available when quick turn-around is needed. We can also accommodate requests for custom shapes sizes (up to 50mm) and retardance values.

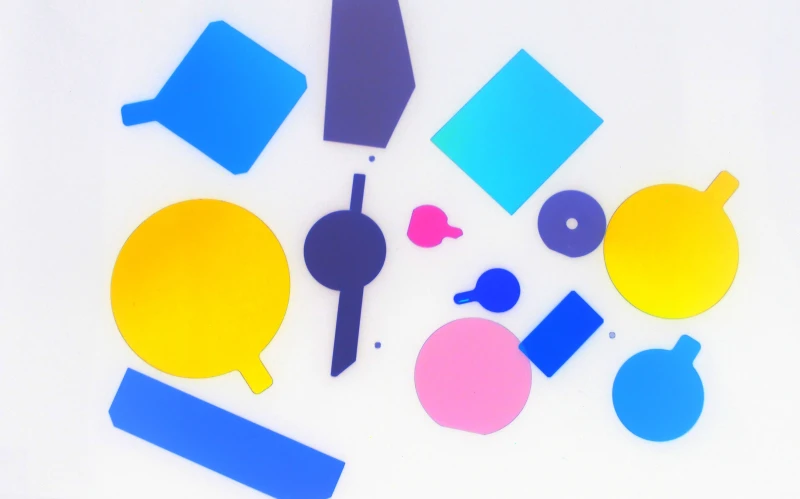

Meadowlark Optics Ultra-Thin Waveplates
Specifications
| Waveplate Type (Retardation Order): | Zero Order |
|---|---|
| Material: | Polymer, Custom |
| Mounting: | Unmounted |
| Shape: | Round, Square, Rectangle, Custom |
| Size (Largest Dimension): | 25.4 mm |
| Design Wavelength: | 633 nm |
| Surface Quality (Scratch-Dig): | 10-5 |
| Retardation: | Lambda/2, Lambda/4, Lambda, Other |
| Retardation Tolerance: | Custom |
| Transmitted Wavefront Distortion (TWD): | Custom |
| Thickness: | 15 um |
| Size Capability: | 1.1 - 50 mm |
| Wavelength Range: | 400-1550 nm |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Very thin profile
- Thermally stable
- High volume scalable
- AR coatings available
- Custom retardance available
Applications
- Semiconductor
- AR
- VR
- Compact Polarization Solutions
