Air Spaced Zero Order Waveplate

Description

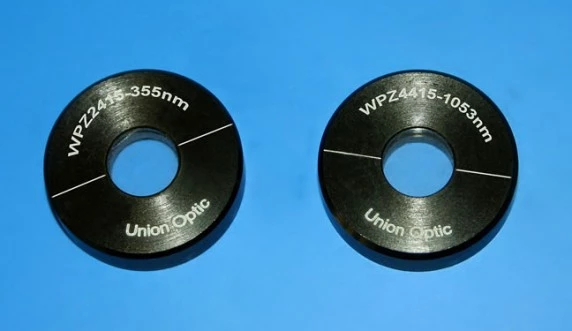

Air spaced zero order waveplate is constructed by two quartz plates installed in a mount, to form a air gap between the two quartz plates. The difference in thickness between the two plates determines the retardance. Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order waveplates.

High Damage Threshold
Better Temperature Bandwidth
Wide Wavelength Bandwidth
AR coated and Mounted
RoHS Compliant

Specifications

Waveplate Type (Retardation Order):	Zero Order
Material:	Quartz
Mounting:	Mounted, Unmounted
Shape:	Round, Square, Rectangle, Custom
Size (Largest Dimension):	25.4 mm
Design Wavelength:	1064 nm
Surface Quality (Scratch-Dig):	20-10
Retardation:	Lambda/2, Lambda/4, Lambda, Other
Retardation Tolerance:	+/- Lambda/300
Transmitted Wavefront Distortion (TWD):	<= Lambda/8
Diameter :	1-150 mm
Wavelength:	213-2020 nm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Material Crystal Quartz
Dimension Tolerance +0.0/-0.2mm
Wavefront Distortion λ/8@632.8nm
Retardation Tolerance λ/300
Parallelism(single plate) <1 arc second
Surface Quality 20/10 scratch and dig
Clear Aperture >90% central area
Standard Wave quarter-wave(λ/4), half-wave(λ/2)
AR Coating R<0.25%@central wavelength
Damage Threshold >10J/cm2, 20ns, 20Hz @1064nm

Request Quote

To: Union Optic
Re: Air Spaced Zero Order Waveplate

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Union Optic
On FindLight:: since 2016

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is an air spaced zero order waveplate?

An air spaced zero order waveplate is constructed by two quartz plates installed in a mount, to form an air gap between the two quartz plates. The difference in thickness between the two plates determines the retardance.

What are the advantages of using zero order waveplates?

Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order waveplates.

What is the damage threshold of the air spaced zero order waveplate?

The damage threshold of the air spaced zero order waveplate is >10J/cm2, 20ns, 20Hz @1064nm.

What is the dimension tolerance of the air spaced zero order waveplate?

The dimension tolerance of the air spaced zero order waveplate is +0.0/-0.2mm.

Is the air spaced zero order waveplate RoHS compliant?

Yes, the air spaced zero order waveplate is RoHS compliant.
