Description

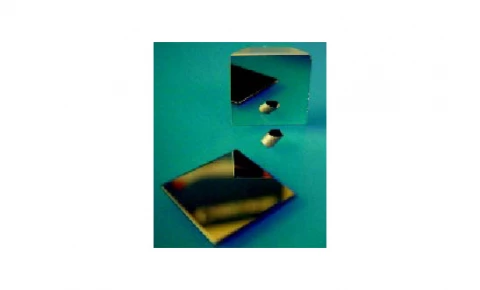

Circular, Square, Rectangular Mirrors from Tower Optical are crafted with precision and excellence, offering a highly polished surface ideal for reflecting light. These mirrors are designed with a thin coating of aluminum or silver on the front surface, known as first surface mirrors, which ensures that the optical properties of the glass do not interfere with the light reflection. This design choice enhances the clarity and accuracy of the reflected image, making these mirrors suitable for a wide range of optical applications.
Each mirror features a protected aluminum coating applied to the front surface, ensuring durability and long-lasting performance. The rear surface of the mirrors is finely ground, adding to the overall quality and finish. The mirrors are available in various shapes, including circular, square, and rectangular, catering to diverse needs and preferences. Whether you require standard or high-grade mirrors, Tower Optical provides options that meet stringent specifications for material quality, dimensional tolerance, flatness, surface quality, thickness tolerance, and parallelism.
At Tower Optical, quality is not just a promise; it is a guarantee. The mirrors are crafted from BK7 grade A optical glass or UV grade fused silica, ensuring superior optical performance. With a commitment to customization, Tower Optical offers the flexibility to create bespoke mirror solutions tailored to your specific requirements. By sending your drawings or specifications, you can receive a personalized quotation, ensuring that your unique needs are met with precision and expertise.
UV Grade Fused Silica Mirror and High Grade MF22-025
Specifications |
|
|---|---|
| Reflective Coating: | Protected Silver, Protected Aluminum |
| Substrate: | UV Fused Silica |
| Average Reflectance: | 95 % |
| Wavelength Range: | 500 – 1000 nm |
| Surface Flatness: | lambda/10 |
| Surface Quality: | 10-5 scratch-dig |
| Diameter: | 25 mm |
| Thickness: | 6 mm |
| Shape: | Round, Square |
Features
- High-Quality Reflective Surface: Mirrors feature a highly polished surface with a thin coating of aluminum or silver for optimal light reflection.
- First Surface Mirrors: Coating is applied to the front surface to eliminate optical distortion from the glass.
- Protected Aluminum Coating: All mirrors come with a durable aluminum coating on the front surface for enhanced protection and performance.
- Material Options: Available in BK7 grade A optical glass and UV grade fused silica for diverse applications.
- Dimensional Precision: Mirrors are manufactured with a dimensional tolerance of +0.0/-0.1mm for precise applications.
- Surface Flatness: Standard grade mirrors offer λ/5 @ 632.8nm, while high-grade mirrors provide λ/10 @ 632.8nm for superior flatness.
- Surface Quality: Scratch/Dig specifications of 40/20 for standard grade and 10/5 for high-grade mirrors ensure excellent surface quality.
- Thickness Tolerance: Consistent thickness with a tolerance of ±0.2mm across all models.
- Excellent Parallelism: Mirrors maintain parallelism of less than 3 arc minutes, ensuring precise optical performance.
- Custom Options Available: Custom versions can be made to your specifications. Contact us with your drawings or requirements for a quotation.
Applications
- Laser Systems: Reliable reflection and minimal signal distortion for high-power laser setups.
- Optical Instrumentation: Enhances performance in precision optical instruments.
- Research & Development: Suitable for laboratory testing and advanced optical experiments.
- Imaging & Sensing: Provides accurate reflection for imaging devices and optical sensors.
- Photonics & Metrology: Ensures stable, repeatable results in measurement systems.
Frequently Asked Questions
The mirror is used for reflecting light in optical applications.
The reflecting surface is usually a thin coating of aluminum or silver.
A first surface mirror is a mirror where the coating is on the front surface, eliminating the optical properties of the glass from affecting the incident or reflected light.
The dimensional tolerance is +0.0/-0.1mm for both standard and high grade.
The surface quality is 40/20 scratch/dig for standard grade and 10/5 scratch/dig for high grade.
