UV Grade Fused Silica Mirror and High Grade MF22-012
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

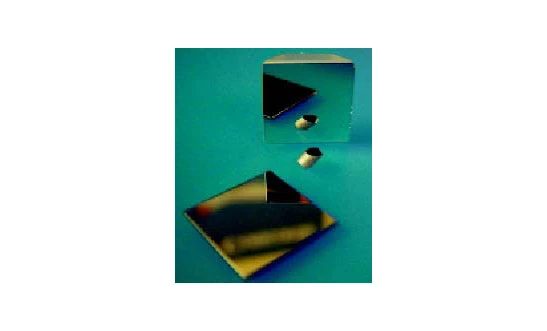

Circular, Square, Rectangular Mirrors from Tower Optical are crafted with precision to meet the highest standards of optical performance. These mirrors feature a highly polished surface designed to reflect light with exceptional clarity and accuracy. The reflecting surface is typically a thin coating of aluminum or silver, applied to the front surface of the mirror. This first surface design ensures that the optical properties of the glass do not interfere with the incident or reflected light, providing superior reflection quality.
Each mirror is coated with a protected aluminum layer on the front surface, ensuring durability and longevity. The rear surface is finely ground to maintain the structural integrity of the mirror. These mirrors are available in various shapes, including circular, square, and rectangular, catering to a wide range of optical applications. The use of high-quality materials such as BK7 grade A optical glass and UV grade fused silica further enhances the performance and reliability of these mirrors.
At Tower Optical, quality is not just a promise; it is a commitment. The meticulous attention to detail in the manufacturing process ensures that each mirror meets stringent specifications for dimensional tolerance, flatness, surface quality, thickness tolerance, and parallelism. Whether you require standard or high-grade mirrors, Tower Optical provides a solution that is both cost-effective and of unparalleled quality. For those with unique requirements, custom versions are available upon request, allowing for tailored solutions that meet specific needs.
UV Grade Fused Silica Mirror and High Grade MF22-012
Specifications |
|
|---|---|
| Reflective Coating: | Protected Silver, Protected Aluminum |
| Substrate: | UV Fused Silica |
| Average Reflectance: | 95 % |
| Wavelength Range: | 500 – 1000 nm |
| Surface Flatness: | lambda/10 |
| Surface Quality: | 10-5 scratch-dig |
| Diameter: | 12.5 mm |
| Thickness: | 6 mm |
| Shape: | Round, Square |
Features
- High-Quality Reflective Surface: Mirrors feature a highly polished surface with a thin coating of aluminum or silver for optimal light reflection.
- First Surface Mirrors: Coating is applied to the front surface to eliminate optical interference from the glass, ensuring superior reflection quality.
- Protected Aluminum Coating: All mirrors come with a durable aluminum coating on the front surface for enhanced protection and longevity.
- Material Options: Available in BK7 grade A optical glass or UV grade fused silica for diverse application needs.
- Customizable Options: Custom versions available upon request; send your drawings or specifications for a quotation.
- Various Sizes and Models: Available in multiple diameters and thicknesses to suit different applications.
- Competitive Pricing: Offers a range of prices to fit various budget requirements without compromising quality.
Applications
- Optical Instrumentation: Reliable light reflection for precision devices.
- Laser Systems: Stable reflection performance in high-intensity laser setups.
- Scientific Research: Ideal for laboratories requiring accurate optical components.
- Imaging Systems: Enhances performance in cameras, sensors, and projection devices.
- Metrology and Testing: Suitable for optical testing setups requiring precise reflection.
Frequently Asked Questions
A UV Grade Fused Silica Mirror is a mirror made of fused silica that is designed to reflect ultraviolet light.
The reflecting surface of the mirror is usually a thin coating of aluminum or silver.
A first surface mirror is a mirror where the coating is on the front surface, thereby eliminating the optical properties of the glass from affecting the incident or reflected light.
The dimensional tolerance of the mirror is +0.0/-0.1mm for both standard and high grade.
The surface quality of the mirror is scratch/dig 40/20 for standard grade and 10/5 for high grade.
