UV Grade Fused Silica Mirror and High Grade MF22-010
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

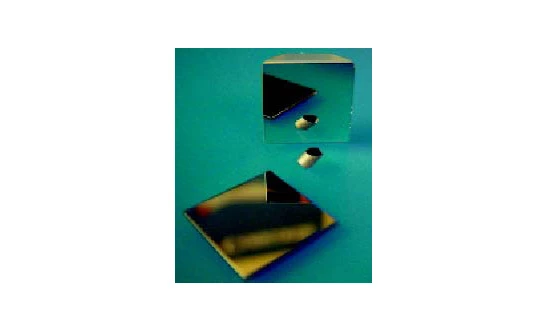

Circular, Square, Rectangular Mirrors from Tower Optical are crafted with precision and quality that is truly priceless. These mirrors are designed with a highly polished surface, perfect for reflecting light with exceptional clarity. The reflecting surface is typically a thin coating of aluminum or silver, applied to the front surface to ensure that the optical properties of the glass do not interfere with the light's path. This design choice makes them ideal for various optical applications, as it enhances the accuracy and reliability of the reflection.
Each mirror features a protected aluminum coating on the front surface, ensuring durability and longevity. The rear surface is finely ground, adding to the mirror's overall quality and performance. These mirrors are available in different shapes, including circular, square, and rectangular, catering to a wide range of needs and preferences. Whether you require standard or high-grade mirrors, Tower Optical provides options that meet stringent specifications for material, dimensional tolerance, flatness, surface quality, thickness tolerance, and parallelism.
Manufactured using BK7 Grade A optical glass or UV Grade Fused Silica, these mirrors are available in various models and sizes, ensuring you find the perfect fit for your requirements. Tower Optical also offers custom versions of their mirrors, allowing you to send your drawings or specifications for a tailored solution. With a commitment to quality and customer satisfaction, Tower Optical is your trusted partner for all your optical mirror needs.
UV Grade Fused Silica Mirror and High Grade MF22-010
Specifications |
|
|---|---|
| Reflective Coating: | Protected Silver, Protected Aluminum |
| Substrate: | UV Fused Silica |
| Average Reflectance: | 95 % |
| Wavelength Range: | 500 – 1000 nm |
| Surface Flatness: | lambda/10 |
| Surface Quality: | 10-5 scratch-dig |
| Diameter: | 10 mm |
| Thickness: | 2 mm |
| Shape: | Round, Square |
Features
- High-Quality Reflective Surface: All mirrors feature a highly polished surface with a front surface aluminum coating, ensuring optimal light reflection without interference from the glass.
- Material Options: Available in BK7 Grade A optical glass for both standard and high-grade mirrors, and UV Grade Fused Silica for high-grade mirrors.
- Dimensional Precision: Mirrors are manufactured with a dimensional tolerance of +0.0/-0.1mm, ensuring precise fit and performance.
- Surface Flatness: Standard grade mirrors offer λ/5 flatness at 632.8nm, while high-grade mirrors provide superior λ/10 flatness at 632.8nm.
- Surface Quality: Scratch/Dig specifications are 40/20 for standard grade and an exceptional 10/5 for high-grade mirrors, ensuring minimal surface imperfections.
- Thickness Tolerance: Consistent thickness with a tolerance of ±0.2mm across all mirror types.
- Parallelism: All mirrors maintain a parallelism of less than 3 arc minutes, ensuring accurate reflection angles.
- Custom Solutions Available: Custom mirror designs can be created to meet specific requirements. Send your drawings or specifications for a personalized quotation.
- Variety of Sizes: Mirrors are available in various diameters and thicknesses to suit different applications, with options ranging from 10mm to 50mm in diameter.
Applications
- Optical Instruments: Reliable reflection for imaging, measurement, and sensing.
- Laser Systems: High-precision reflection for beam routing and manipulation.
- Scientific Research: Critical for laboratory experiments and optical test setups.
- Industrial Applications: Suitable for alignment, metrology, and inspection systems.
- Custom Engineering Projects: Tailored designs for unique optical requirements.
Frequently Asked Questions
A UV Grade Fused Silica Mirror is a highly polished surface used for reflecting light, with a protected aluminum coating applied to the front surface.
First surface mirrors have the coating on the front surface, while second surface mirrors have the coating on the back surface.
The dimensional tolerance for the High Grade MF22-010 mirror is +0.0/-0.1mm.
The flatness of the High Grade MF22-010 mirror is λ/10 @ 632.8nm.
The scratch/dig specification for the High Grade MF22-010 mirror is 10/5.
