BK7 Grade A Optical Glass Standard MB11-050 Circular Mirror
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

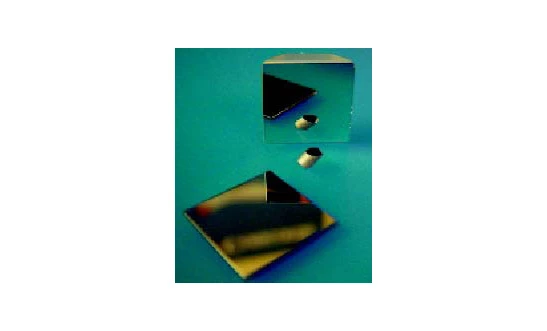

Circular, Square, Rectangular Mirrors from Tower Optical are crafted with precision to meet the highest standards of optical performance. These mirrors feature a highly polished surface designed for optimal light reflection, making them ideal for a variety of optical applications. The reflecting surface is typically a thin coating of aluminum or silver, applied to the front surface of the mirror. This first surface design ensures that the optical properties of the glass do not interfere with the incident or reflected light, providing superior clarity and accuracy.
Each mirror is coated with a protected aluminum layer on the front surface, ensuring durability and longevity. The rear surface is finely ground to maintain the integrity of the mirror's structure. The mirrors are available in both standard and high-grade options, with materials such as BK7 grade A optical glass and UV grade fused silica. These materials are chosen for their excellent optical properties and reliability in demanding environments.
At Tower Optical, quality is paramount, and we believe it is priceless. Our mirrors are manufactured to precise specifications, with tight dimensional tolerances and exceptional surface quality. Whether you require a standard size or a custom solution, we are committed to providing mirrors that meet your exact needs. For custom versions, simply send us your drawings or specifications, and we will be happy to provide a quotation.
BK7 Grade A Optical Glass Standard MB11-050 Circular Mirror
Specifications |
|
|---|---|
| Reflective Coating: | Protected Silver, Protected Aluminum |
| Substrate: | BK7 |
| Average Reflectance: | 95 % |
| Wavelength Range: | 500 – 1000 nm |
| Surface Flatness: | lambda/6 |
| Surface Quality: | 40-20 scratch-dig |
| Diameter: | 38 mm |
| Thickness: | 4 mm |
| Shape: | Round, Square |
Features
- High-Quality Reflective Surface: Our mirrors feature a highly polished surface with a thin coating of aluminum or silver, ensuring excellent light reflection.
- First Surface Mirrors: Designed for optical applications, these mirrors have the reflective coating on the front surface to eliminate optical distortion from the glass.
- Protected Aluminum Coating: All mirrors come with a durable aluminum coating applied to the front surface for enhanced protection and longevity.
- Material Options: Available in BK7 grade A optical glass and UV grade fused silica for diverse application needs.
- Dimensional Precision: Mirrors are crafted with a dimensional tolerance of +0.0/-0.1mm, ensuring precise fit and performance.
- Surface Flatness: Standard grade mirrors offer λ/5 flatness at 632.8nm, while high-grade mirrors provide superior λ/10 flatness.
- Surface Quality: Scratch/Dig quality of 40/20 for standard grade and 10/5 for high-grade mirrors, ensuring minimal surface imperfections.
- Thickness Tolerance: Consistent thickness with a tolerance of ±0.2mm for reliable performance.
- Excellent Parallelism: Mirrors maintain parallelism of less than 3 arc minutes for precise optical alignment.
- Custom Solutions Available: We offer custom mirror solutions tailored to your specifications. Contact us with your requirements for a personalized quotation.
Applications
- Laser Systems: Beam routing and precise reflection.
- Optical Instruments: Imaging, sensing, and measurement setups.
- Scientific Research: Laboratory experiments and optical testing.
- Industrial Applications: Alignment, inspection, and metrology.
- Custom Engineering Projects: Tailored mirrors for specialized designs.
Frequently Asked Questions
The purpose of a circular mirror is to reflect light.
The reflecting surface of the mirror is usually a thin coating of aluminum or silver.
A first surface mirror is a mirror where the coating is on the front surface, eliminating the optical properties of the glass from affecting the incident or reflected light.
The difference between standard grade and high grade material is that high grade material can be either BK7 grade A or fused silica, while standard grade material is only BK7 grade A.
The thickness tolerance of the mirrors is ±0.2 mm.
