BK7 Grade A Optical Glass High Grade MB12-025 Mirror
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

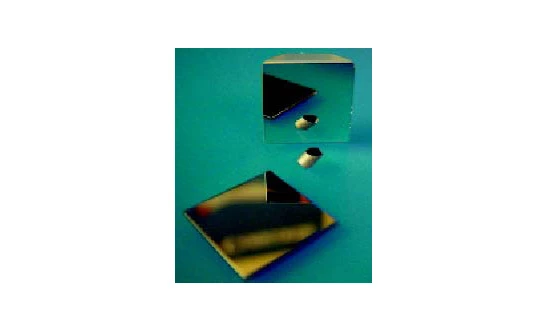

Circular, Square, Rectangular Mirrors from Tower Optical are crafted with precision to meet the highest standards of optical performance. These mirrors are designed with a highly polished surface that effectively reflects light, making them an essential component in various optical applications. The reflecting surface is typically a thin coating of aluminum or silver, applied to the front surface of the mirror. This design choice, known as a first surface mirror, ensures that the optical properties of the glass do not interfere with the incident or reflected light, providing a clear and accurate reflection.
Each mirror features a protected aluminum coating on the front surface, ensuring durability and longevity. The rear surface is finely ground to maintain the integrity of the mirror's structure. Tower Optical offers these mirrors in both standard and high-grade options, utilizing BK7 grade A optical glass or UV grade fused silica. This variety allows customers to select the material that best suits their specific needs, whether it be for standard applications or more demanding environments requiring high-grade materials.
At Tower Optical, quality is paramount, and the company prides itself on delivering products that are not only reliable but also customizable. Customers have the option to request custom versions of any mirror, tailored to their unique specifications. This flexibility, combined with the company's commitment to excellence, makes Tower Optical a trusted partner for all optical mirror needs.
BK7 Grade A Optical Glass High Grade MB12-025 Mirror
Specifications |
|
|---|---|
| Reflective Coating: | Protected Silver, Protected Aluminum |
| Substrate: | BK7 |
| Average Reflectance: | 95 % |
| Wavelength Range: | 500 – 1000 nm |
| Surface Flatness: | lambda/10 |
| Surface Quality: | 10-5 scratch-dig |
| Diameter: | 25 mm |
| Thickness: | 6 mm |
| Shape: | Round, Square |
Features
- High-Quality Reflective Surface: Mirrors feature a highly polished surface with a thin coating of aluminum or silver for optimal light reflection.
- First Surface Mirrors: Coating is applied to the front surface to eliminate optical distortion from the glass.
- Protected Aluminum Coating: All mirrors come with a protected aluminum coating on the front surface for enhanced durability.
- Material Options: Available in BK7 grade A optical glass and UV grade fused silica for diverse applications.
- Dimensional Precision: Mirrors have a dimensional tolerance of +0.0/-0.1mm, ensuring precise fit and alignment.
- Flatness and Surface Quality: Standard grade offers λ/5 flatness and 40/20 scratch/dig, while high grade offers λ/10 flatness and 10/5 scratch/dig for superior optical performance.
- Thickness Tolerance: Consistent thickness with a tolerance of ±0.2mm.
- Excellent Parallelism: Mirrors maintain parallelism of less than 3 arc minutes for accurate light reflection.
- Customizable Options: Custom versions available upon request to meet specific requirements.
- Wide Range of Sizes: Available in various diameters and thicknesses to suit different needs.
Applications
- Laser Systems: Beam routing and reflection.
- Optical Instruments: Imaging, sensing, and measurement.
- Scientific Research: Lab experiments and optical testing.
- Industrial Applications: Alignment, inspection, and metrology.
- Custom Engineering Projects: Tailored mirrors for specialized designs.
Frequently Asked Questions
The mirrors are used for reflecting light.
The reflecting surface is usually a thin coating of aluminum or silver.
Most mirrors for optical applications are called first surface types since the coating is on the front surface thereby eliminating the optical properties of the glass from affecting the incident or reflected light.
The mirrors are made of BK7 grade A optical glass or fused silica.
The thickness tolerance of the mirrors is ± 0.2 mm.
